PACIFIC CYCLE Part - Service Checklist; Bicycle Service Checklist

57
Failure to adjust correctly may result in
loss of braking power and personal injury.

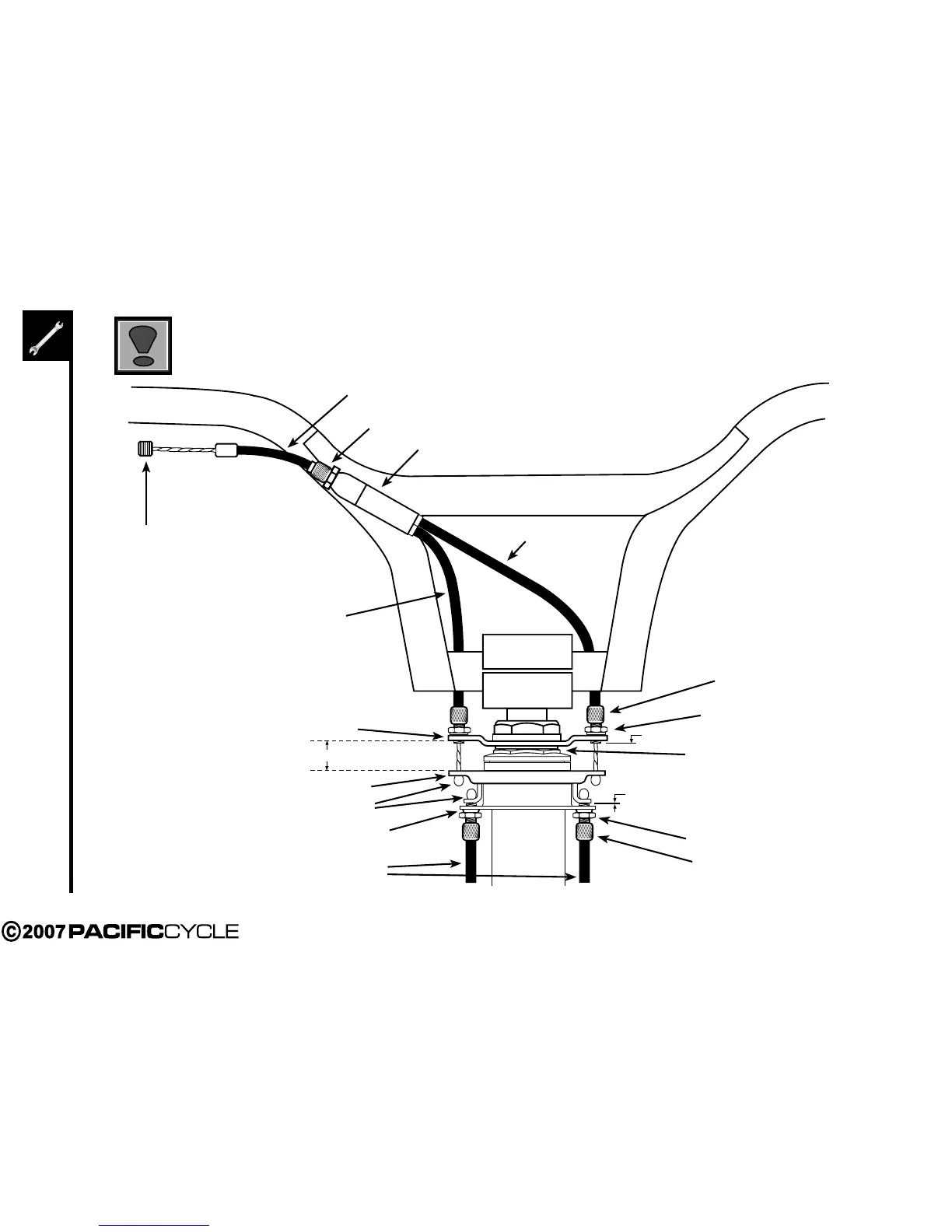

Barrel End
Single Cable Casing
Cable Adjuster
Cable Splitter
Upper Cable
(short casing)
Upper Cable
(long casing)
Upper Plate
Bearing
Football Ends
Lower Plate
Lower Cable
Adjusting Barrel
Locknut
Keyed Washer
Locknut
Adjusting Barrel
37mm + or - 1mm
Set for Max. Travel
Minimum 1mm (1/32”)
