Pacific S-20 - Scrub Head Assemblies and Wiring

RETURN TO
TABLE OF
CONTENTS


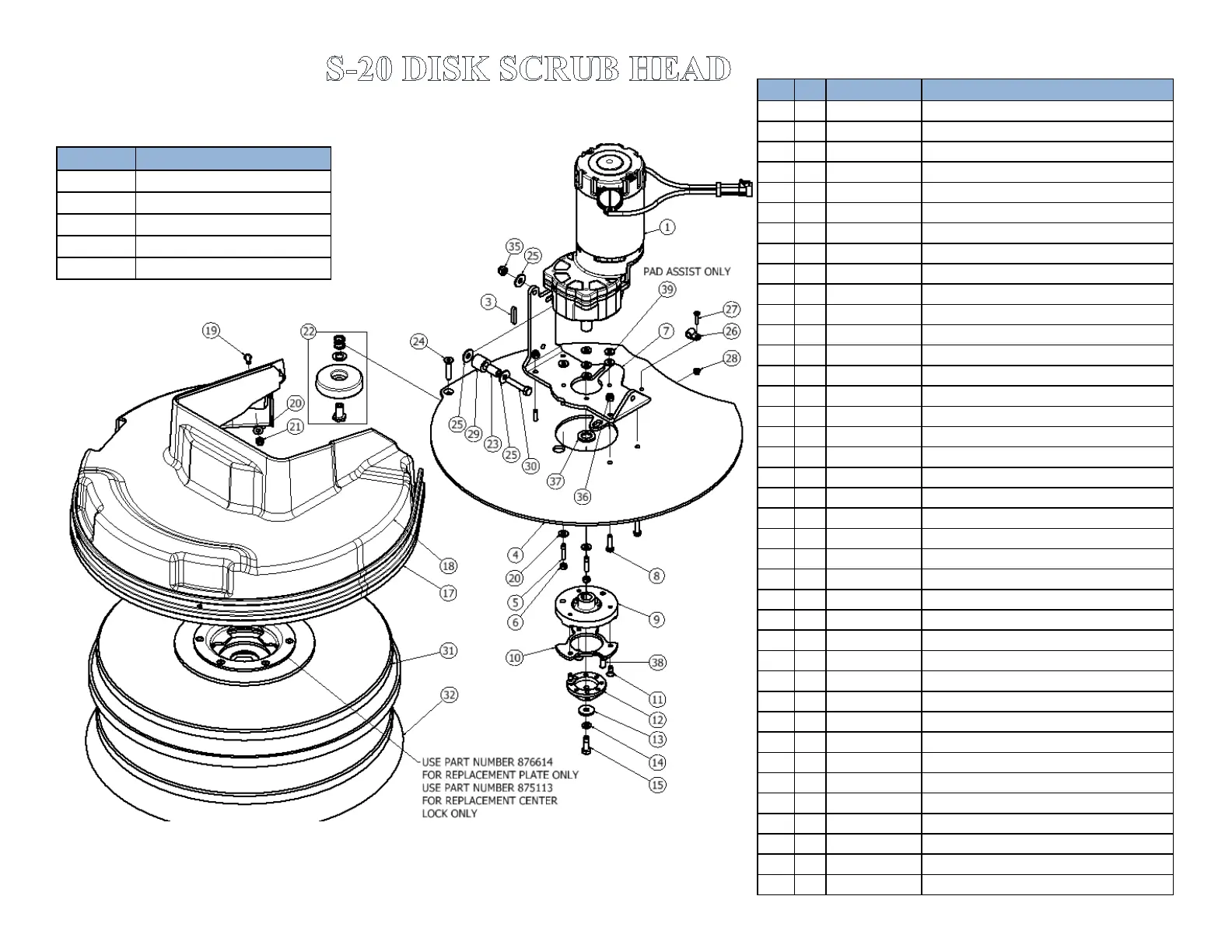

S-20 DISK SCRUB HEAD
ITEM QTY PART NUMBER DESCRIPTION
1 1 855201 MOTOR, GEAR, BRUSH
2 1 850905 BRUSH CARBON KIT 2 PC 855201
3 1 915005 KEY, SQUARE, 5MM X 1.25
4 1 856602 PLATE, MTG, MOTOR
5 4 964010 SCREW, SET, M6 X 30, SS, PATCH
6 4 924082 NUT, NYLOCK, M6X1.0, SS
7 1 850808 BRACKET, SUPPORT, HEAD
8 4 962221 SCREW, HEX, .25-20 X 1.0, SS
9 1 854302 HUB, DRIVER, BRUSH
10 1 853803 GUIDE, DRIVER
11 3 962274 SCREW, FLAT, SOCK, .25-20X.62, SS, PATCH
12 1 853804 GUIDE, PAD, PLASTIC
13 1 980107 WASHER, FLAT, .31ID, 1.0OD, .12THK, SS
14 1 980094 WASHER, SPLIT LOCK, .31, SS
15 1 962466 SCREW, HEX, M8-1.25 X 25, SS, PATCH
16 1 855016 KIT SHROUD REPLACEMENT (ITEMS 16 - 20)
17 1 858503 SKIRT, BRISTLE
18 1 852302 SHROUD, HEAD, CUTOUT
19 4 962263 SCREW, BUTT, SOCK, .25-20X.62, SS BO
20 12 W104D WASHER, FLAT, .25
21 4 920665 NUT, NYLOCK, 1/4-20, SS
22 1 855022 KIT-GUIDE WHEEL REPLACEMENT, ANTI RATTLE
23 1 858203 SPACER, WHEEL, GUIDE
24 1 962266 SCREW, FLAT, SOCKET, .31-18 X 1.5, SS
25 3 W243D WASHER, FLAT, 5/16, SS
26 1 612001 CLAMP, PLASTIC, P-SHAPED
27 1 962003 SCREW, PAN, #10-32 X .75, ZINC
28 1 920666 NUT, NYLOCK, #10-32, SS
29 1 857501 ROLLER, PLASTIC
30 1 962270 SCREW, HEX, 5/16-18X1.75,SS
31 1 855901 DRIVER, PAD, 20INCH, BRISTLE
32 1 850901 BRUSH, POLY, 20 INCH
33 1 850902 BRUSH, NYLON, 20 INCH
34 1 850903 BRUSH, GRIT, 20 INCH
35 1 920012 NUT, NYLOCK, 5/16-18, ZINC
36 4 920011 NUT, NYLOCK, 1/4-20, ZINC
37 1 858201 SPACER, DRIVER, ROUND
38 1 857009 PLUNGER BALL PRESS-IN
39 6 980784 WASHER .26 ID .094 THICK SS

PART NUMBER DESCRIPTION
555906 PAD 20” BLACK STRIP CASE 5
555926 PAD 20” MAROON CFR CASE 10
555946 PAD 20” RED SCRUB CASE 5
555966 PAD 20” TURF CASE 4
555956 PAD 20” WHITE POLISH CASE 5
