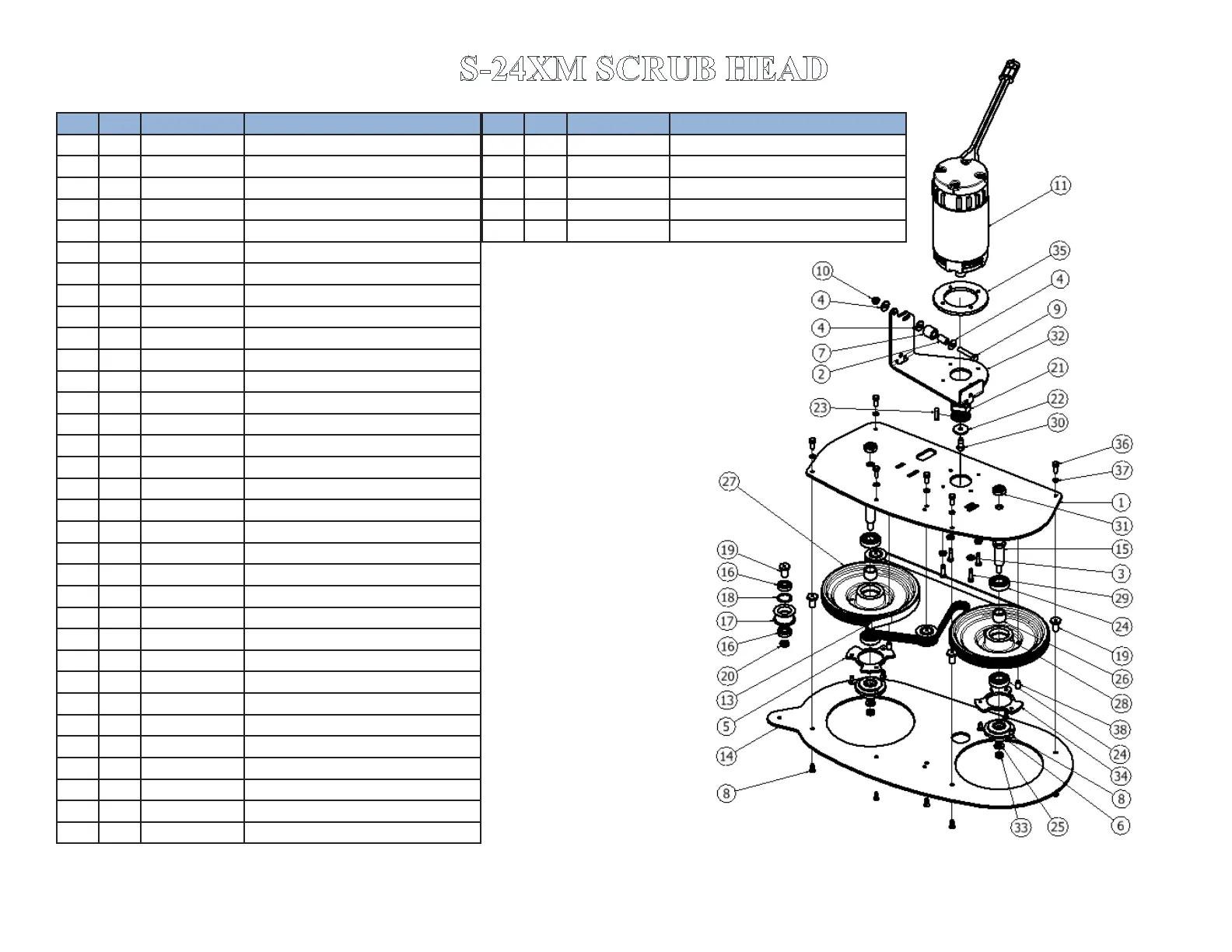

S-24XM SCRUB HEAD
ITEM QTY PART NUMBER DESCRIPTION
1 1 876602 PLATE, MTG, 24 INCH
2 3 858203 SPACER, WHEEL, GUIDE
3 8 W104D WASHER, FLAT, .25
4 9 W243D WASHER, FLAT, 5/16, SS
5 1 853803 GUIDE, DRIVER
6 2 873801 GUIDE, PAD, PLASTIC
7 3 857501 ROLLER, PLASTIC
8 12 962274 SCREW, FLAT, SOCK, .25-20X.62, SS, PATCH
9 3 962270 SCREW, HEX, 5/16-18X1.75,SS
10 3 920012 NUT, NYLOCK, 5/16-18, ZINC
11 1 855204 MOTOR, 24V, 2200 RPM, .75HP
12 1 850906 BRUSH CARBON KIT 4 PC 855204 & 875201
13 1 903046 BELT, V-GROOVE, STRETCH
14 1 876606 PLATE, COVER, 24 INCH
15 2 877701 SHAFT, PULLEY, HEAD
16 6 902035 BEARING, .5 ID, 1.1875 OD
17 3 876901 PULLEY, IDLER
18 3 877302 RING, RETAINING, INT, 1.12 DIA
19 6 878201 SPACER, IDLER
20 3 878202 SPACER, IDLER, PLAIN
21 1 876902 PULLEY, MOTOR, DRIVE
22 1 980108 WASHER, FLAT, .31ID, 1.25OD, .12THK, SS
23 1 915006 KEY, 8MM X 7MM X 28MM
24 4 902053 BEARING, .75 ID, DBL SEAL
25 2 980003 WASHER, FLAT, .38
26 2 878203 SPACER, BEARING
27 1 874306 HUB, PULLEY, MACH GROOVED
28 1 874305 HUB, PULLEY, MACH FLAT
29 4 964008 SCREW, HEX, M6 X 25, SS, PATCH
30 1 964060 SCREW, HEX, M8-1.25 X 20, SS
31 2 920039 NUT, .62-18, NYLOCK, LOW
32 1 870814 BRACKET, SUPPORT, 24XM
33 2 920035 NUT, NYLOCK, .38-16, SS
ITEM QTY PART NUMBER DESCRIPTION
34 1 873802 GUIDE, DRIVER, RH
35 1 878206 SPACER, MOTOR, 24INCH
36 6 W189D SCREW, HEX, 1/4-20 X .75, SS, PATCH
37 6 980002 WASHER, LOCK, SPLIT, .25
38 2 857009 PLUNGER BALL PRESS-IN
