3.2 Display

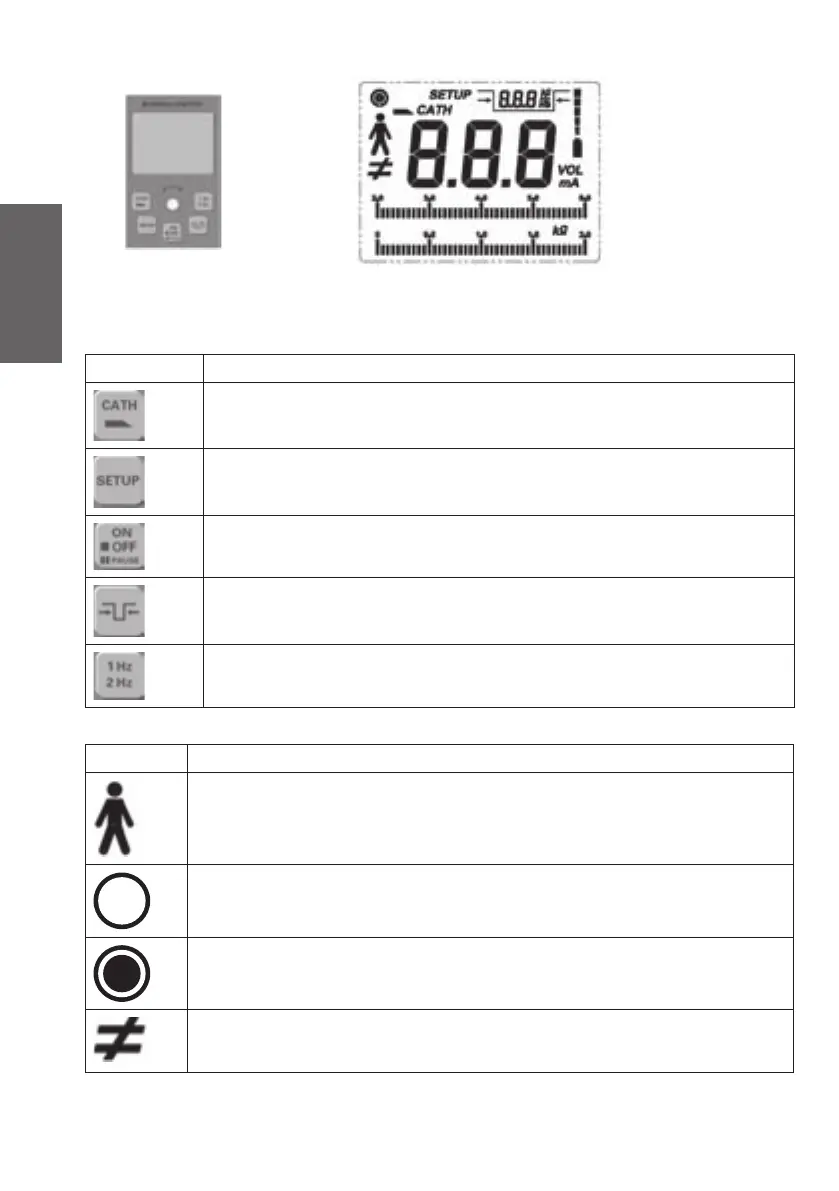

Display, all indications activated (simulated condition)
MultiStim SWITCH has additionally been provided with a permanent analogous indication of the
patient resistance by means of two bar graphs below the digital.
3.3 The control keys
Button Function
Mode: CATH (catheter) or KAN (cannula, represented by symbol)
Access to the basic setting
„On“ / „Off“ / Pause
Selection of the impulse bandwidth
Mode: Impulse-frequency
3.4 The elements of the display
Symbol Meaning
Indicates must-current is displayed in mA
Indication of the electrical patient-circuit: Electric circuit not closed.
Indication of the electrical patient-circuit: Electrical circuit closed.
The value actually measured corresponds („⫽“) or („⬆“) does not correspond to the
nominal/set point value (inactive when no pulses are being emitted) (nominal current
= actual current)
