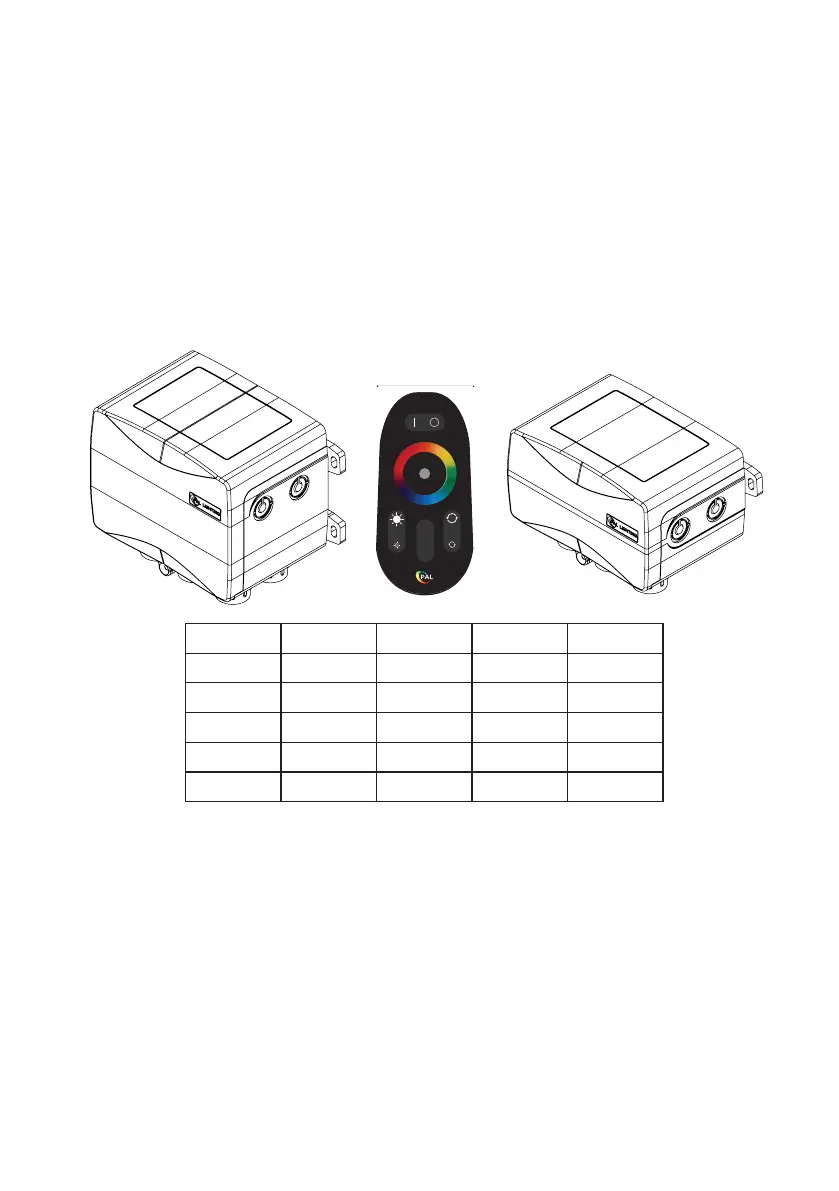

CONNECTING TO DRIVER
PAL COLOR TOUCH DRIVER
The Bubbler is powered by the PAL PCR-1Z / PCR-2Z Class 2 LED Driver
Refer to PCR-1Z or PCR-2Z for Detailed Installation Instructions.
PCZ-2 Transmitter
64-PCR-2Z 64-PCR-1Z
NOTE:
• Must turn o power before making DIP switch selection.
• When syncing PAL lights to other OEM lights, static colors will
match but color change mode timing may vary.
• If the PAL Lights are to be used with Automation, do not use the
handheld remote control and disconnect the Wi-Fi module from
the board if so equipped.
• If the Automation does not turn the PAL lights on or o and there
is power to the driver, press the S1 button one time to turn on the
PAL Driver.
• Note that the PAL features of infinite color selection and
dimmability are not available while in Cloned mode.
Z
1
2
Z
Switch 1 Switch 2 Switch 3 Switch 4 Mode
OFF ON OFF ON JANDY
OFF OFF OFF ON PENTAIR
ON OFF OFF ON HAYWARD
ON ON OFF ON PAL
OFF OFF ON ON ASTRAL
To Next Page
