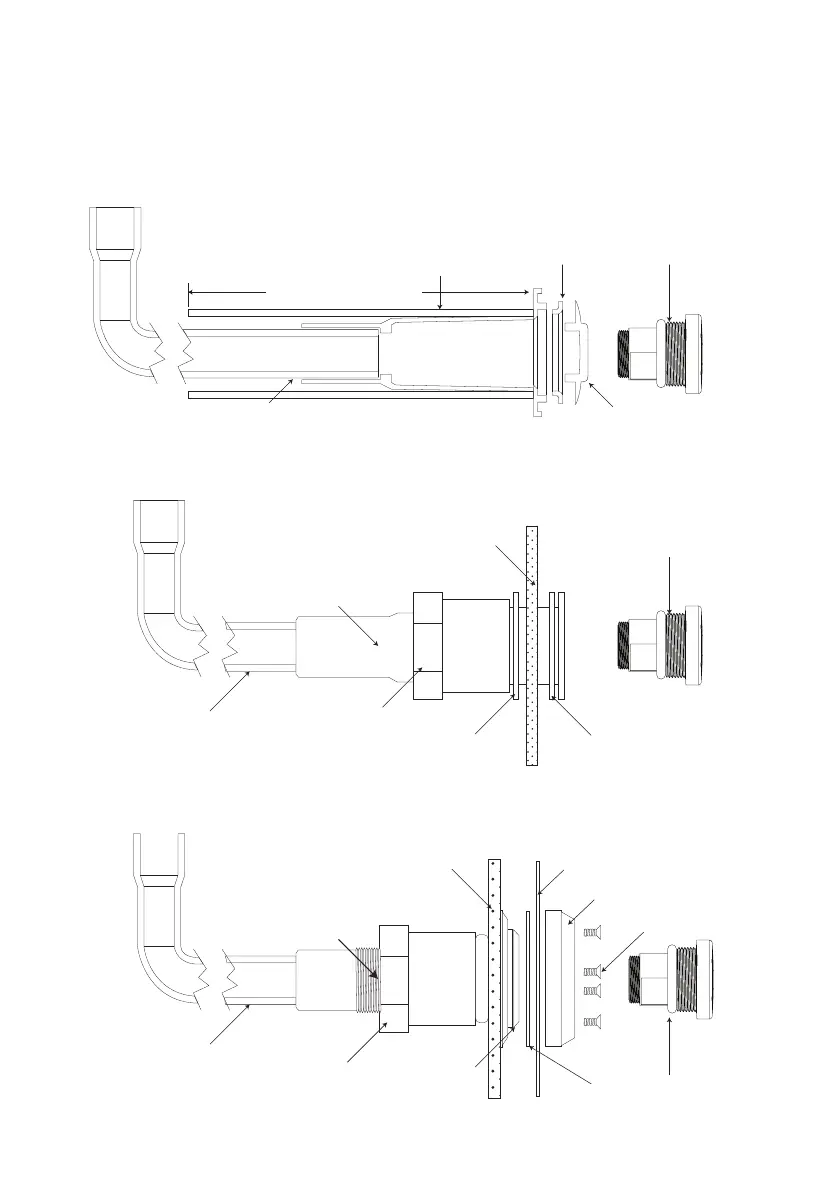

NICHE INSTALLATION
Install Pentair Globrite Niche as per manufacutrer instructions
Concrete
Fiberglass
Vinyl
38cm (15” min)
5.1cm (2”) PVC pipe Sch.40
(Niche Sleeve)
Gunite Cover
Color Ring
2.54 cm (1”) Conduit glue
to Gunite Niche
Pool Wall
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Gunite niche
Treo Retro
Treo Retro
Treo Retro
Wall panel
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Liner
Face Plate
Stainless steel
screws x 4
38cm (15” min)
5.1cm (2”) PVC pipe Sch.40
(Niche Sleeve)
Gunite Cover
Color Ring
2.54 cm (1”) Conduit glue
to Gunite Niche
Pool Wall
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Gunite niche
Treo Retro
Treo Retro
Treo Retro
Wall panel
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Liner
Face Plate
Stainless steel
screws x 4
38cm (15” min)
5.1cm (2”) PVC pipe Sch.40
(Niche Sleeve)
Gunite Cover
Color Ring
2.54 cm (1”) Conduit glue
to Gunite Niche
Pool Wall
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Gunite niche
Treo Retro
Treo Retro
Treo Retro
Wall panel
Sealing Gasket
PVC Washer
Nut
Niche
2.54cm (1”) Conduit
Liner
Face Plate
Stainless steel
screws x 4
