PAL TREO RETRO - Nicheless Installation

SOLIDWORKS Educational Product. For Instructional Use Only.

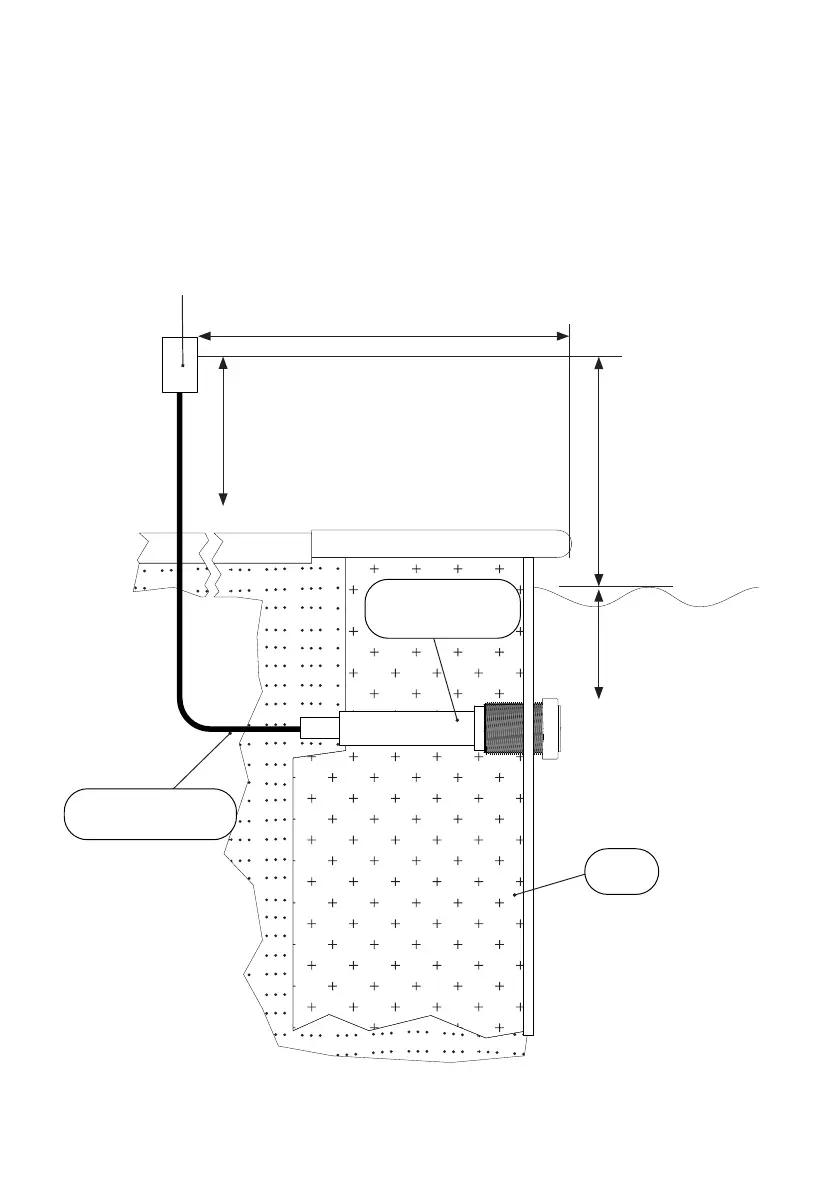

GUNITE/CONCRETE
NICHELESS INSTALLATION
Installation Setup
4
18” (46cm) minimum
Junction Box or 12 VAC Voltage
Transformer to the maximum
water level of pool.
8” (20.3cm)
4” min (10.2cm)
to top of lens
48” (1.22m)
MIN
Rigid 1” (3cm) Electrical
Rated Conduit
Wall Fitting: 1.5”
(3.81cm) PVC Pipe for
Gunite Only
24VAC
Transformer
Plaster
Finish
