3 DESCRIPTION
The connection box is supplied with all
equipment required for connection to a
compatible Palazzetti pellet stove.

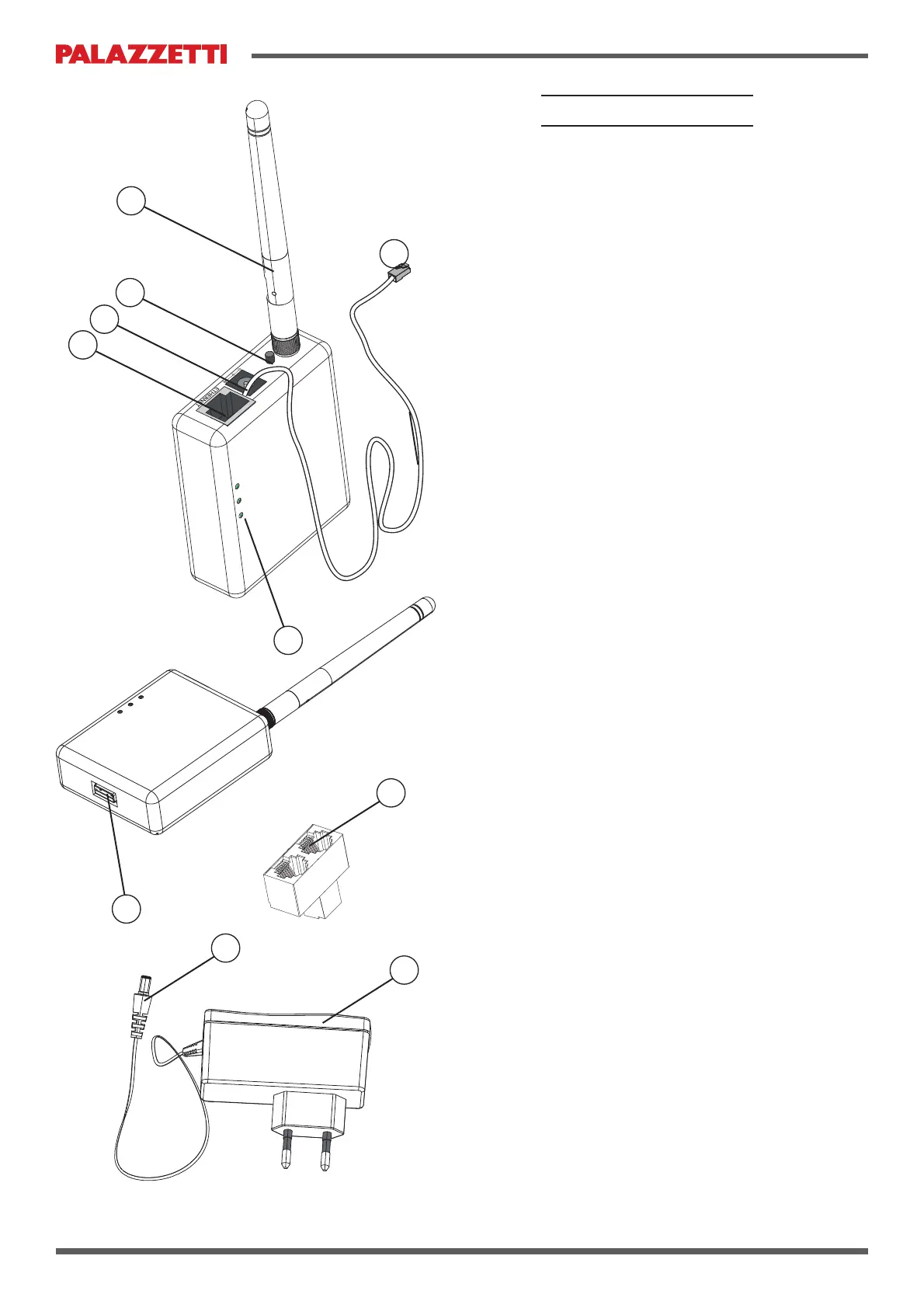

Description of main components and assemblies
¿J
A. Articulated antenna
B. Reset button
C. Power socket
D. Ethernet cable socket
E. Status led
F. RJ11 socket
G. USB port
H. Splitter
I. Power plug
J. Power supply
