Palazzetti Connection box User Manual

14

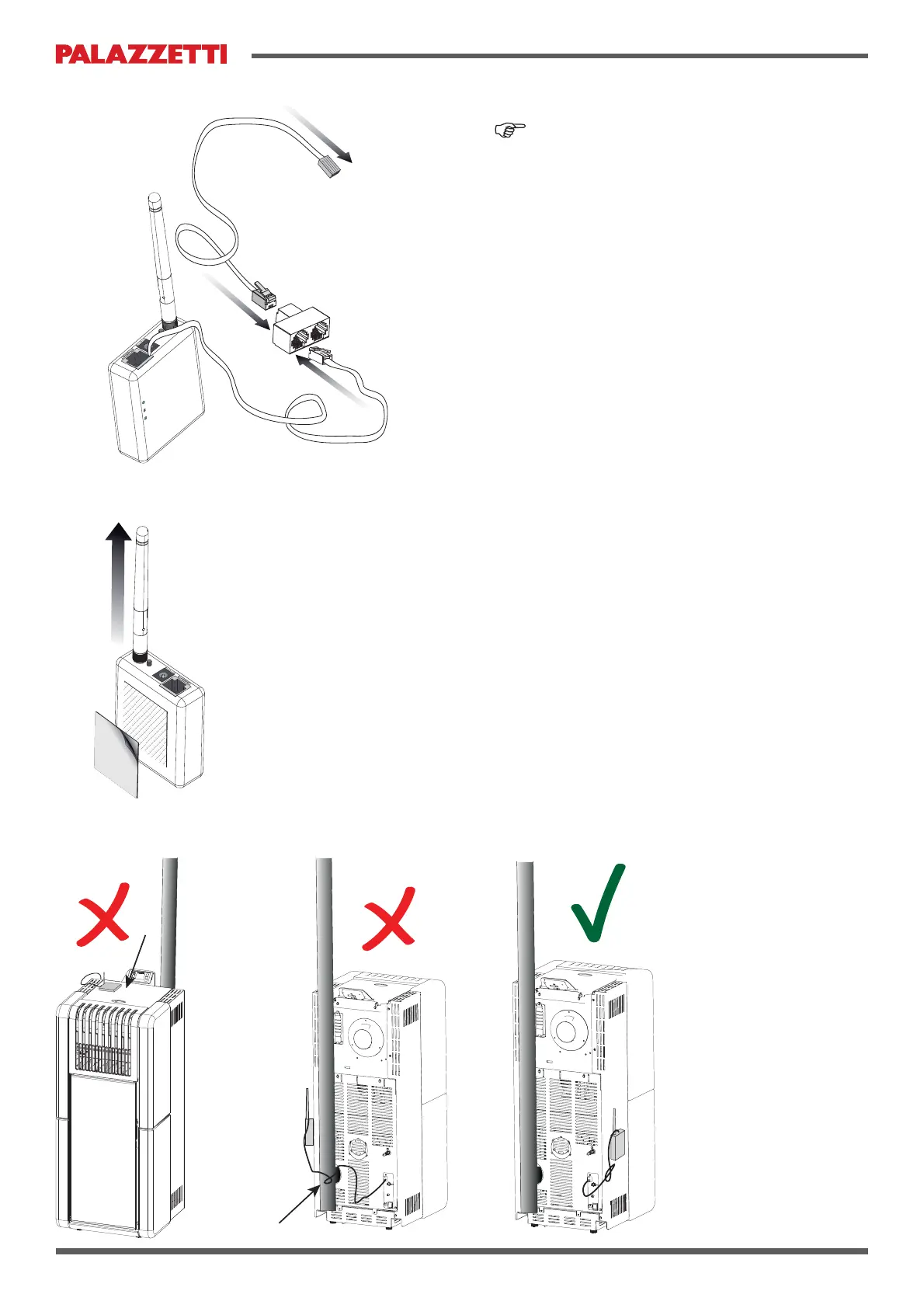

Fig. 4.5
Fig. 4.4
14
4.1.3 Installation using Modu2 4p connector
This type of installation may only be done by a
Palazzetti technician.
For all Palazzetti stoves which are not pre-
FRQ¿JXUHG IRU WKH KRRNXS DQG ZKLFK DUH QRW
¿WWHGZLWKDFRQWUROSDQHOZLWK5-FRQQHFWRURQ
its back, the connection box must be connected
directly to the stove’s electronics.
Hookup:
 Make sure the stove is out and switched off
 &RQQHFW WKH VSOLWWHU ¿J  WR WKH
connection box and the RJ11 male/MODU2
4pin female cable.
 Connect the MODU2 4 pin connector to the
appropriate connector on the stove’s PCB.
4.2 SECURING THE CONNECTION BOX
TO THE STOVE
The connection box mounts to the stove with the
included adhesive velcro strips.
 Find a cold position on the back of the stove,
which is also located so as not to get in the
way of maintenance or impede the stove’s
operation
 Stick the velcro to the connection box and
the stove itself, and position the connection
box in such a way that its antenna is directed
XSZDUGV¿J
 Secure any loose cables to the stove’s back
panel with a tie.
