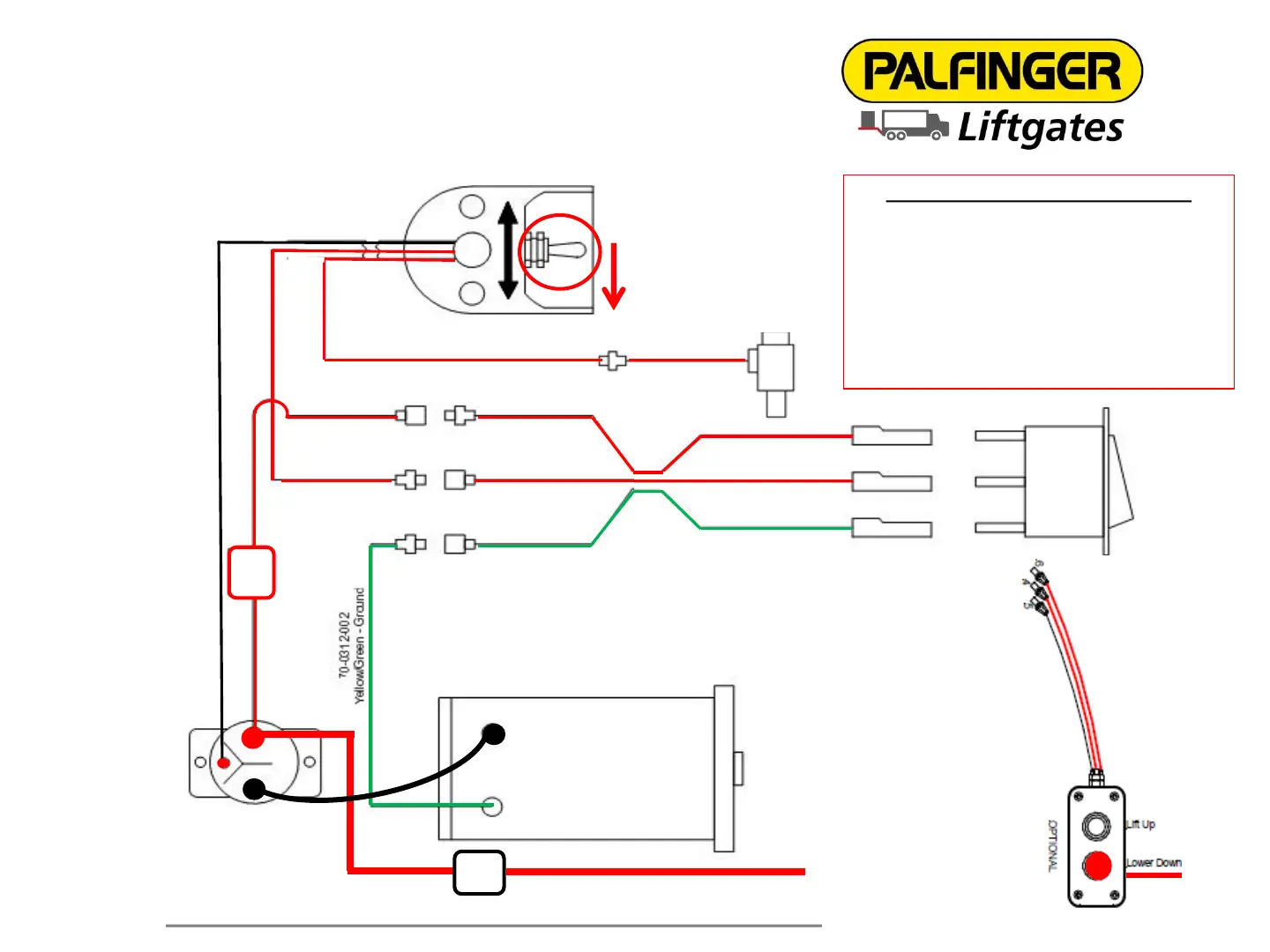

PLR Electric Schematic LOWER/GRAVITY DOWN Function
#6 Black Wire Lower/Down
#4 Black Wire Power
To Toggle Switch
POWER
LOAD
GROUND
Blue Wire Load
To Toggle Switch
Green/Yellow Wire To
Ground Stud On Motor
#5 Black Wire Power
Raise To Starter Solenoid
Solenoid
One (1) Lowering
Solenoid On
Cylinder
150A
CIRCUIT BREAKER
2 GA CABLE FROM BATTERY
2 GA CABLE FROM BATTERY
Ground Stud
Power Stud
Brown Wire Power
From In-Line Fuse
15A
ATC
FUSE
Red Line = Active Power
Green Line = Ground
(Green/Yellow Wire)
Black Line = Inactive Power
OPTIONAL
HAND HELD
REMOTE
LOWER/GRAVITY DOWN FUNCTION
Toggle switch or hand held remote
activated in LOWER/DOWN position.
Solenoid valve on cylinder (S1) is
energized.
Hydraulic fluid is released out of cylinder
flowing into reservoir, lowering platform.
18
