Palmer PWT05 - Panel Description; IEC Mains Socket; Voltage Selector; Mains Switch

INSTALLATION & BEDIENUNG:

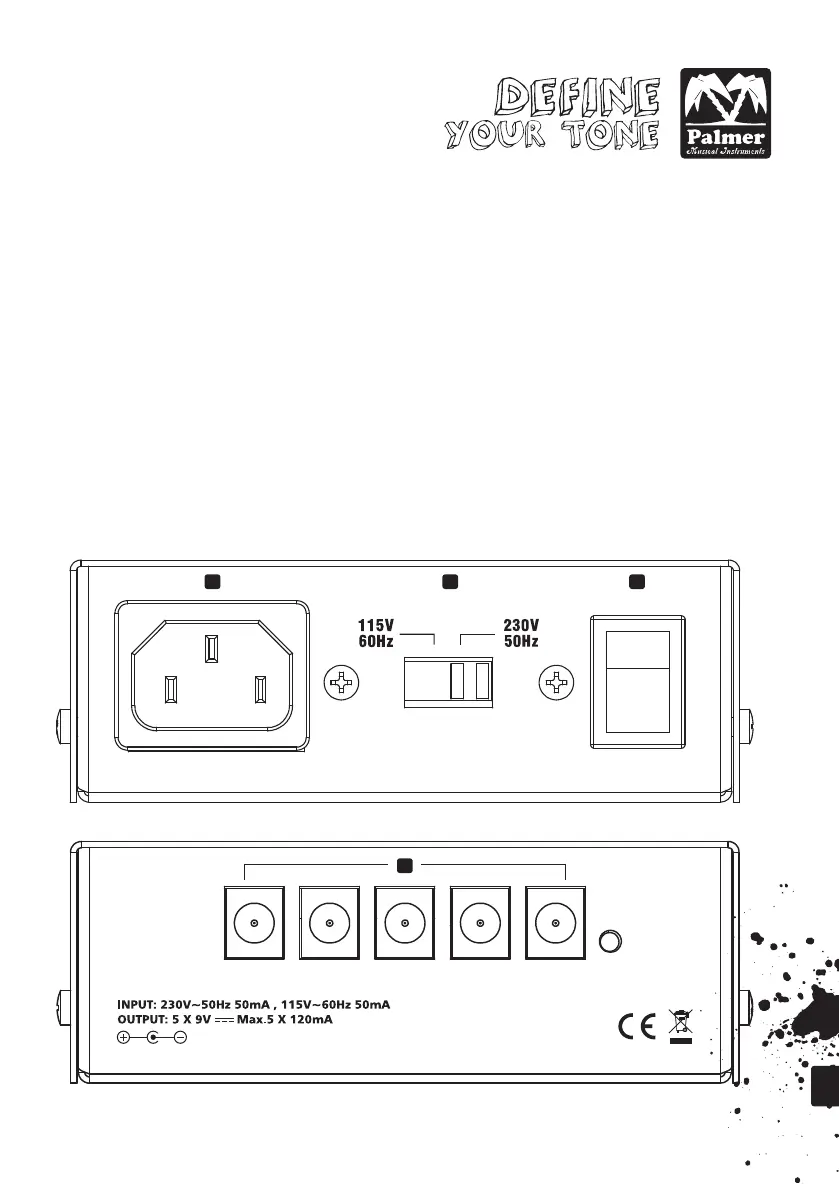

PANEL DESCRIPTION
1) IEC MAINS SOCKET
Connect the unit to the mains
2) VOLTAGE SELECTOR
Use this switch to switch between 115V and 230V depending on which count-
ry you are in. Caution: mismatching can damage the device.
3) MAINS SWITCH
Turn the unit on/off
4) 9VDC OUTPUTS
5x isolated DC outputs, each supplying 120mA
