DESCRIPTION
Palmgren Drill Presses feature a heavy cast iron base, column collar,
work table and head. Work table height is adjustable using rack and
pinion. Table can be tilted 45° both right and left, and rotates 360°
on a vertical axis. Work table surface is precision ground and
features T-slots for secure, accurate mounting of workpiece and also
a coolant trough. Digital readout displays spindle RPM. Other
features of Palmgren Drill Presses are an enclosed ball bearing quill
assembly, quick belt change and tension mechanism, positive
quick- adjust feed depth stop and a 1/2 HP motor and 16 spindle
speeds. Chuck and arbor are included.
Palmgren Drill Presses are ideal for use in home shops, maintenance
shops and light industrial applications. Spindle speeds are
adjustable for drilling steel, cast iron, aluminum, wood and plastic.
UNPACKING
Refer to Figure 1.
WARNING: Be careful not to touch overhead power lines, piping,
lighting, etc., if lifting equipment is used. Drill press weighs over
154 lbs. Proper tools, equipment and qualified personnel should be
employed in all phases of unpacking and installation.
Crates should be handled with care to avoid damage from
dropping, bumping, etc. Store and unpack crates with correct side
up. After uncrating drill press, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing or
damaged parts. If any damage or loss has occurred, claim must be
filed with carrier immediately. Check for completeness. Immediately
report missing parts to dealer.
Drill press is shipped partially assembled. Locate and identify the
following assemblies and loose parts:
Not Shown: Worm Gear; Four M10 × 1.5-40 Hex Bolts, Wedge, 3mm
and 5mm Hex Wrenches, Chuck Key, Belt Tension Handle, Hardware
Bag for Quill Feed Handle.
IMPORTANT: The tool has been coated with a protective coating. In
order to ensure proper fit and operation the coating must be
removed. Remove coating with mild solvents such as mineral spirits
and a soft cloth. Nonflam mable solvents are recommended. After
cleaning, cover all exposed surfaces with a light coating of oil. Paste
wax is recommended for table top.
CAUTION:
Never use highly volatile solvents. Avoid getting
cleaning solution on paint as it may tend to deteriorate these
finishes. Use soap and water on painted components.
SPECIFICATIONS
Chuck Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 mm, JT3
Spindle Taper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MT2 × JT3
Spindle Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quill Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.85˝
Column Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ¾˝
Drilling Capacity Cast Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5/8˝
Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 3476
Table Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ¾˝ × 11 ¾˝
Motor . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 HP, 1725 RPM, 120/240 V, 8/4 A,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Hz, 1 PH (Tool Prewired 120 V)
9680157A 15˝ Bench Top Drill Press
Max Spindle to Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17˝
Max Distance to Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27˝
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46˝
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 lbs
9680158A 15˝ Floor Model Drill Press
Max Spindle to Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
8˝
Max Distance to Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 ½˝
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 ½˝
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 lbs
SAFETY RULES
PROPOSITION 65 WARNING: Some dust created by using power
tools contain chemicals known to the state of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks and cement and other masonry
products.
Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals;
work in a well ventilated area and work with approved safety
equipment. Always wear OSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools
BE PREPARED FOR JOB
Wear proper apparel. Do not wear loose clothing, gloves,
neckties, rings, bracelets or other jewelry which may get caught
in moving parts of machine.
Wear protective hair covering to contain long hair.
Wear safety shoes with non-slip soles.
Wear safety glasses which comply with United States ANSI
Z87.1. Everyday glasses have only impact resistant lenses. They
are NOT safety glasses.
Wear face mask or dust mask if cutting operation is dusty.
Be alert and think clearly. Never operate power tools when tired,
intoxicated or when taking medications that cause drowsiness.
A Head Assembly
B Table
C Table Bracket
D Base
E Column Assembly for
9680177A
F Column Assembly for
9680178A
G Quill Feed Handle
H Feed Handle Bar
I Table Crank Handle
J Table Bracket Locking
Handle
K Table Locking Handle
L Chuck & Arbor
A
B
C
D
E
F
G
H
I
J
K
L

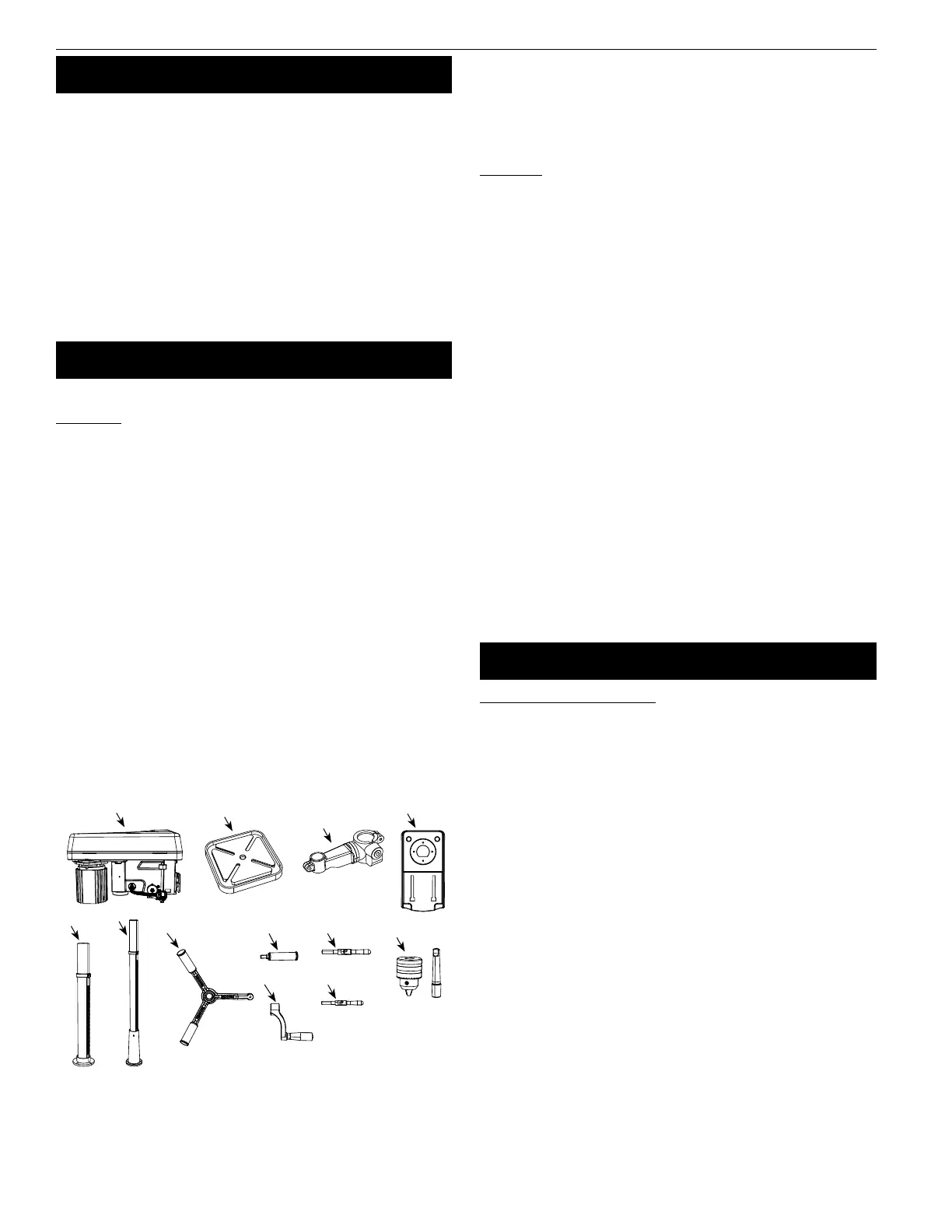

Figure 1 – Unpacking
9680157A 9680158A
Palmgren Operating Manual & Parts List 9680157A & 9680158A
