7
OPERATION (CONTINUED)
DIGITAL DISPLAY PANEL
Refer to Figure 6.
• Display panel (A) shows the spindle RPM.
• Button (B) turns power on and off to LED light.
MAINTENANCE
WARNING: Turn switch off and remove plug from power source
outlet before maintaining or lubricating your drill press
DRIVE BELT
Replace drive belt when worn.
LUBRICATION
Refer to Figures 7 and 8.
The ball bearings are lubricated at the factory and need no further
lubrication. Using 20wt. non-detergent oil, periodically lubricate the
splines (grooves) in the spindle and the rack (teeth on the quill) as
follows:
• Lower quill assembly (Figure 8, Ref. No. 143) all the way down.
• Apply lubricant around the inside of the hole in the spindle
pulley (Figure 8, Ref. Nos. 158 & 172).
• Apply lubricant to rack (teeth) on quill (Figure 8, Ref. No. 143)
while extended below drill press head.
• Apply lubricant to rack and pinion gear (Figure 7, Ref. Nos.
12/13) on column and table assembly.
CLEAN MOTOR
Frequently blow out any dust that may accumulate inside motor. If
power cord is worn, cut or damaged in any way, have it replaced
immediately.
IMPORTANT: To assure product SAFETY and RELIABILITY, repairs,
maintenance and adjustment (other than those listed in this
manual) should be performed by authorized service centers or
other qualified service organizations, always sing identical
replacement parts.
WARNING:
To avoid shock or fire hazard, if the power lead is worn
or cut in any way, replace it immediately.

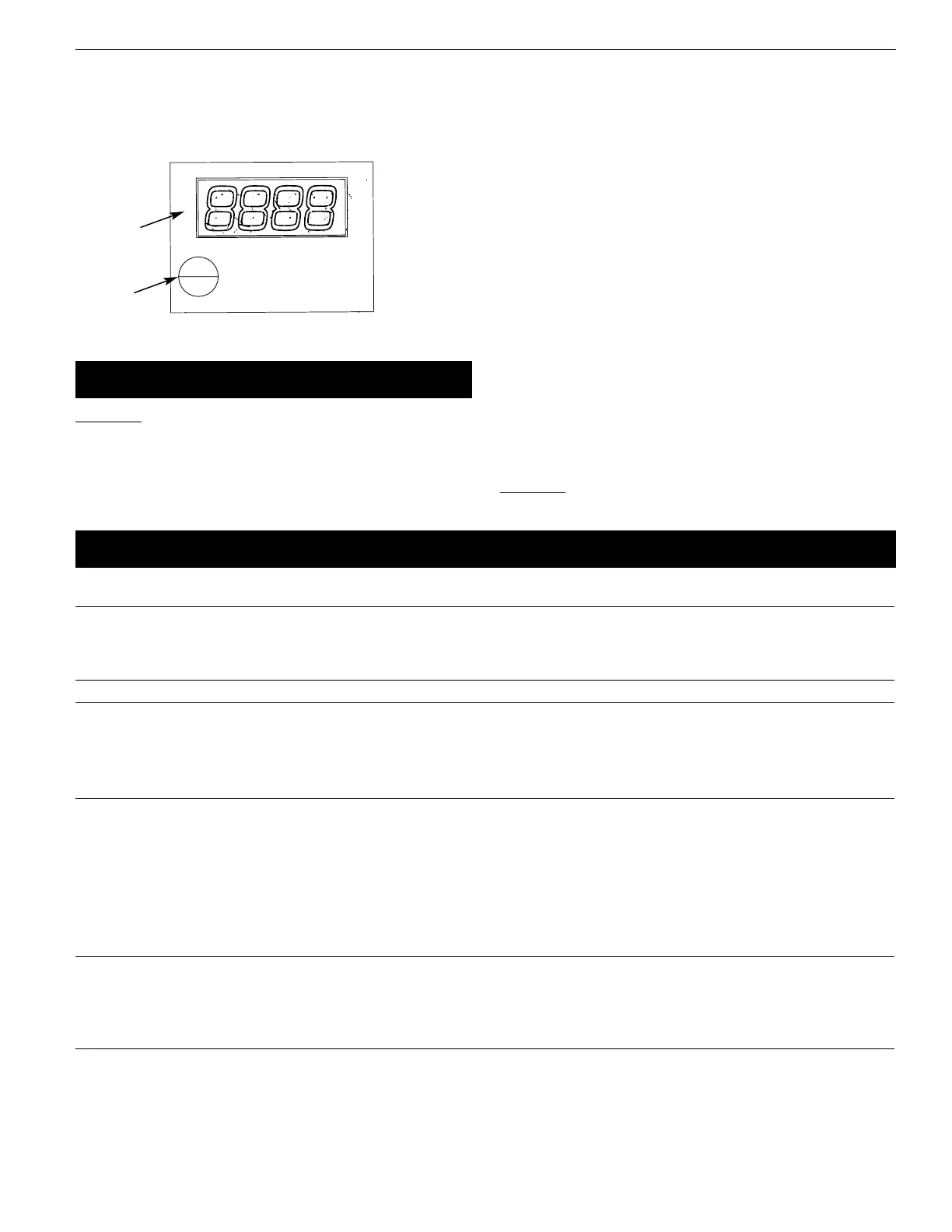

Figure 6 – Digital display panel.
A
B
Palmgren Operating Manual & Parts List 9680157A & 9680158A
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Spindle does not turn
Noisy spindle
Noisy operation
Bit burns or smokes
Excessive drill runout or wobble
Drill bit binds in workpiece
1. No power to drill press
2. Defective switch
3. Defective motor
Defective bearings
1. Incorrect belt tension
2. Dry spindle
3. Loose spindle
4. Loose motor pulley
1. Incorrect speed
2. Chips not coming out of table
3. Dull bit
4. Feeding too slow
5. Bit not lubricated
6. Bit running backwards
1. Bent bit
2. Bit not properly installed in chuck
3. Chuck not properly installed
4. Worn spindle bearings
1. Workpiece pinching bit or excessive feed
2. Improper belt tension
3. Workpiece not supported or clamped
|properly
1. Check wiring, fuse or circuit breaker
2. Replace switch
3. Replace motor
Replace bearings
1. Adjust tension
2. Lubricate spindle, See Lubrication
3. Tighten pulley nut
4. Tighten set screw in pulley
1. Change speed
2. Retract bit frequently to clear chips
3. Sharpen or replace bit
4. Feed faster; enough to allow drill to cut
5. Lubricate bit
6. Check motor rotation to be sure it is clockwise
facing shaft end
1. Replace bit
2. Install bit properly
3. Install chuck properly
4. Replace bearings
1. Support or clamp work, decrease feed pressure
2. Adjust tension
3. Support or clamp workpiece securely
