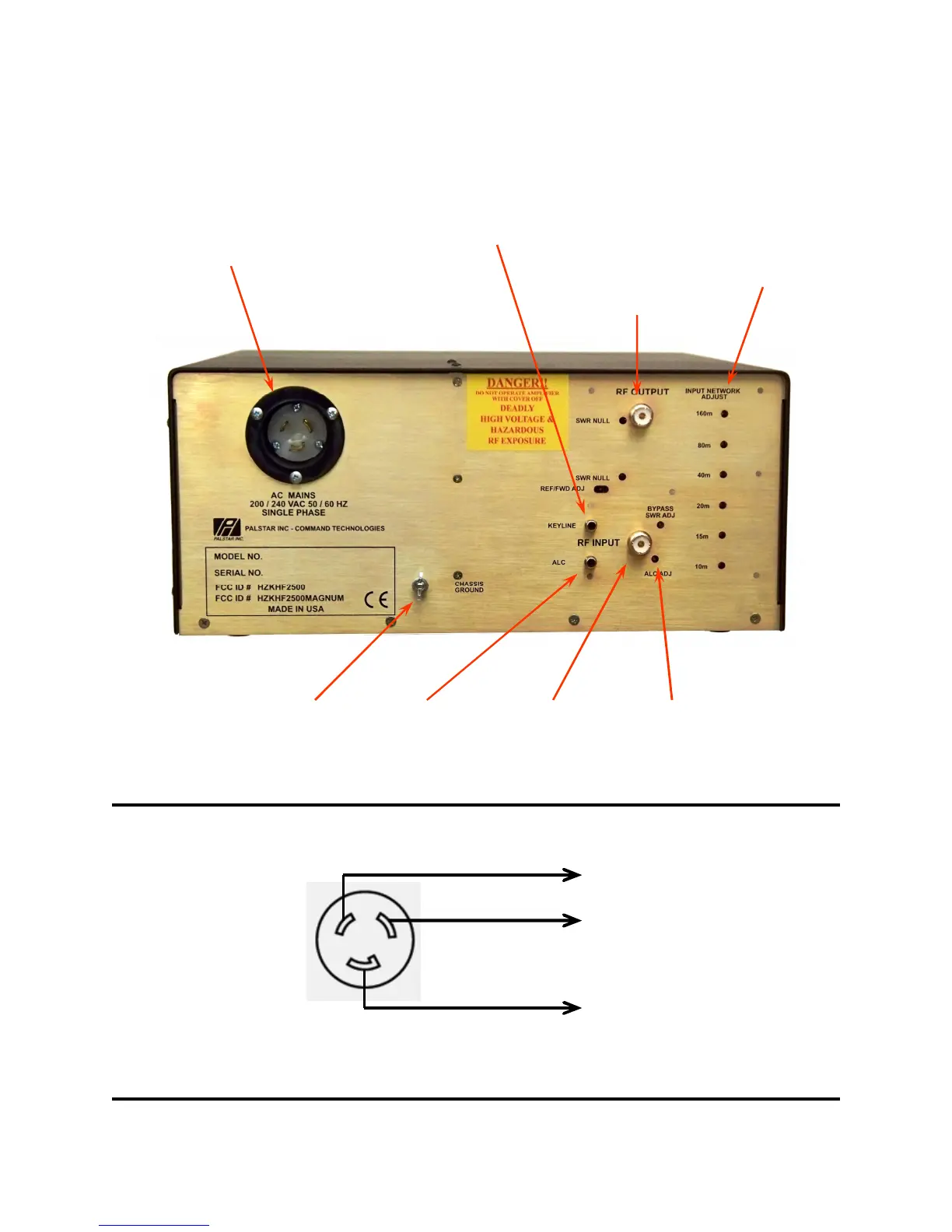

Palstar COMMANDER HF-2500 EXPORT - Rear Panel Overview

9
Rear Panel View
Tuned Input
Adjustments
(One for each
band)
Automatic Level
Control Adjust
RF Output
(to Wattmeter
& Antenna
or Antenna
Tuner)
RF Input
(from
Transceiver)
Ground
Post
Key Line
(to transceiver)
ALC
(to transceiver)
AC Mains
Twistlock
Connector
AC Power Twistlock Connector Wiring
(View looking at rear panel)
GREEN
BLACK
}
WHITE
To Safety Ground
To 200/234VAC @ 30A
X
Y
G
