Page 8 PALSTAR
SAVING MEMORY LOCATIONS
l TUNE the HF-AUTO using a low power FM or CW signal
l MANUALLY tune L&C for best SWR while power applied
l While power is still applied push red button to the right of the tuning
knob and hold for 2 seconds or more until the display says
“SETTINGS CHANGED”
l Remove power and release the red button
l The frequency is now saved
l To return to AUTO MODE push left red button
DIVISIONS IN THE FREQUENCY BANDS FOR SETTINGS
FREQUENCY IN MHZ # OF SETTINGS SPACED
1.8 MHZ to 20 MHZ 51 4 Khz
3.5 MHZ to 4.0 MHZ 51 10 Khz
7.0 MHZ to 7.3 MHZ 36 50 Khz
10.1 MHZ to 10.150 MHZ 2 50 Khz
14.0 MHZ to 14.350 MHZ 18 40 Khz
18.068 MHZ to 18.168 MHZ 3 50 Khz
21.0 MHZ to 21.450 MHZ 5 100 Khz
24.890 MHZ to 24.990 MHZ 1 500 Khz
28.0 MHZ to 29.70 MHZ 51 500 Khz
50.0 MHZ to 54.0 MHZ 101 40 Khz
MARS FREQUENCY 707 4 Khz to 500 Khz
FOR ALL TUNEABLE FREQUENCIES FROM 1.8 - 30 MHZ, 40 MHZ
THROUGH 41 MHZ AND 50 MHZ TO 54 MHZ THERE ARE 1193
SUBDIVISIONS OR MEMORY POSITIONS.
ROLLER INDUCTOR
VARIABLE CAPACITOR STEPPER MOTOR
SUPPORT SUB-PANEL
PALSTAR will oer a fully remote version of the base version in the near
future. However, in certain cases where there is DC power available at
a reasonable distance you can operate this base version in the AUTO
MODE. Other functions would of course not be available.
The base version is frequency sensing you need only to insert a
metering device that could monitor reected power in the
transmitting location.
REMOTE OPERATION
PULLEY/BELT SYSTEM

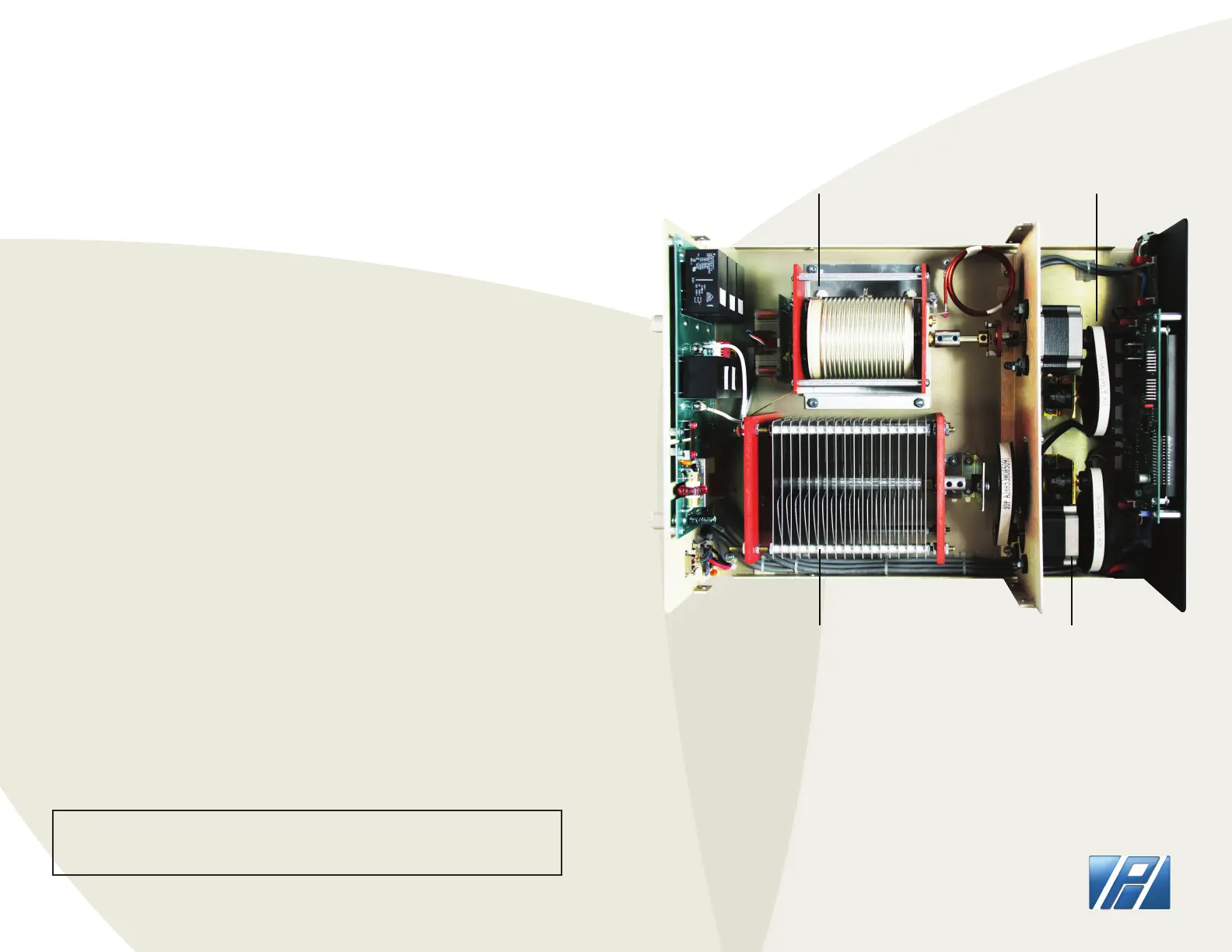

INSIDE COMPONENTS
