AUX-In Sensor Lead
(Connect to vehicle computer)
AUX-In Sensor
(Orange w/white stripe)
Steering remote control lead
(Orange)
Steering remote
To AUX
(Red)(R)
(L)
(R)
(L)
(Rear)
(White)
Preamp-Out
(Red)
(White)
AUX-In
Pre-Out
(Rear Side)
Temperature Sensor Lead
Sleeper Room Remote Connector
(Connect to CA-RC300U)
CD Changer Control Connector
Accessory Power(ACC)
(+12V DC, negative ground
only)
Ground Lead
(Connect to a clean, bare
metallic part of your vehicle)
Battery Lead
(Connect to vehicle battery)
Amp. Cont(MAX 0.1A)
(Blue)
(Red)
ACC
Ground
(Black)
(Yellow)
Battery
Fuse(10A)
Power Connector
(Violet)
(Violet w/black stripe)(Gray w/black stripe)
(Green)
(Green
w/black
stripe)
(White
w/black
stripe)
(Gray)(white)
Left Speaker
(Front)
Right Speaker
(Front)
Left Speaker
(Rear)
Right Speaker
(Rear)
CD Receiver
CQ-5500U
Antenna
Antenna Connector

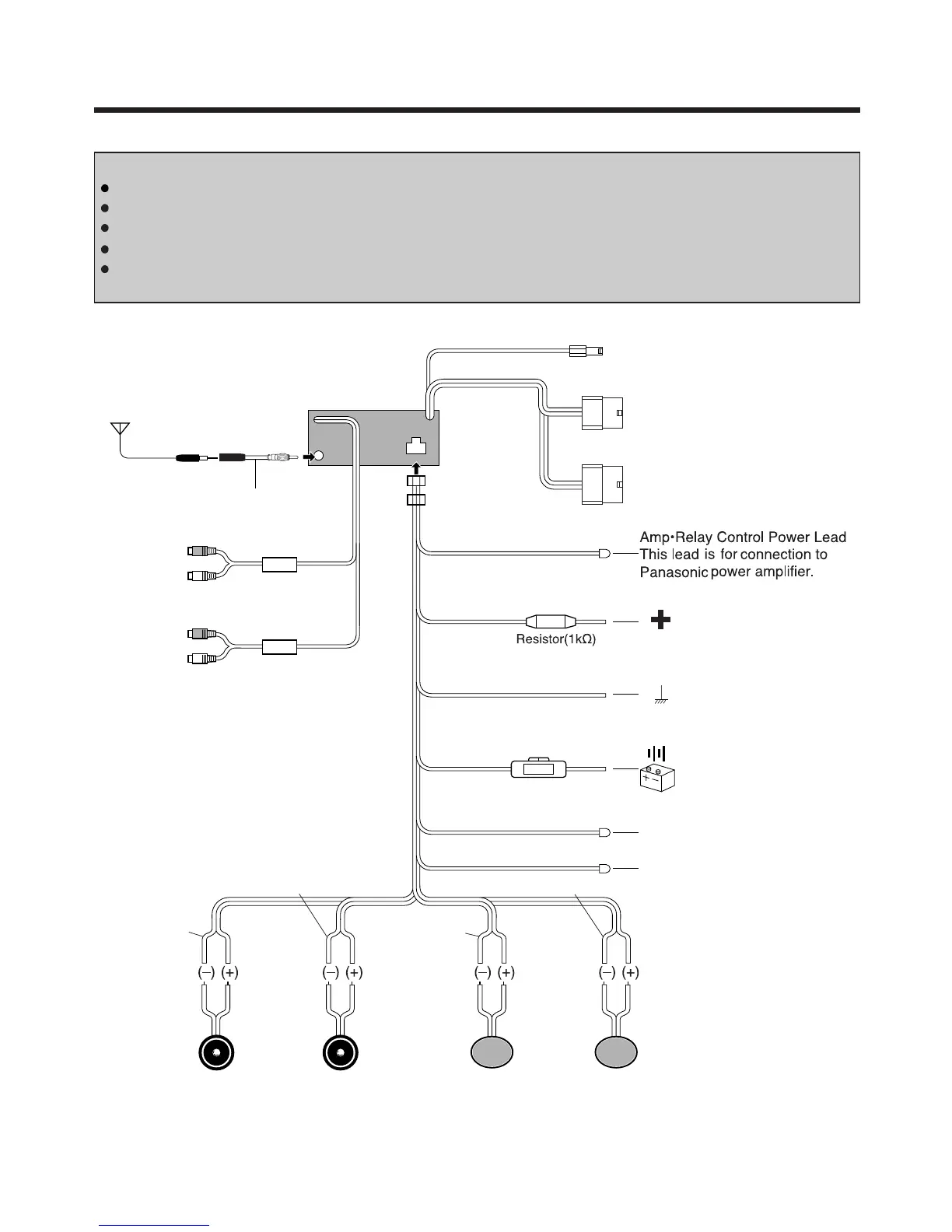

Electrical Connections
Cautions:
This product is designed to operate with a 12-volt negative ground battery system.
To prevent damage to the unit, be sure to follow the connection diagram below.
Remove the covering of the leads approx. 5 mm long from their end before connecting.
Do not insert the power connector into the unit until the wiring is completed.
Be sure to insulate any exposed wires from a possible short-circuit from the vehicle chassis. Bundle
all cables and keep cable terminals free from touching any metal parts.
(Only for CQ-5500U)
To Next Page
