Panasonic AJ-VF15BP

2-1
Disassemble procedures

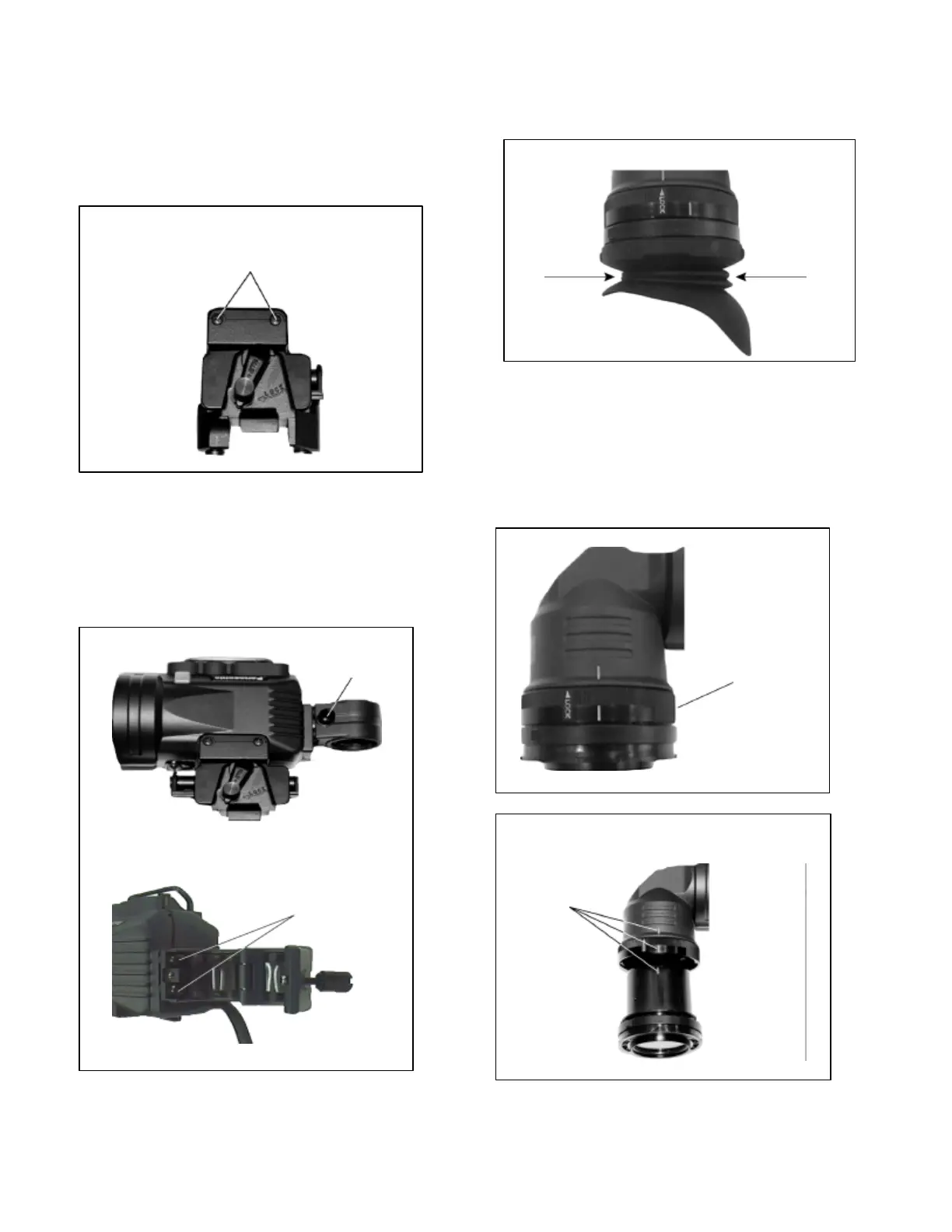

1. Mounting Unit Removal
Unscrew 2 screws (A) so that the mounting plate can
be removed.
2. Microphone Holder Removal
1. Unscrew 1 screw (B) so that the microphone
holder can be opened as shown figure below.
2. Unscrew 2 screws (C) so that the microphone
holder can be removed.
3. Eye Piece Rubber Removal
1. Carefully tear off the portions of the Eye piece.
Note: When assembling the eye piece unit, align
the markers as shown in the figure above.
4. Eye Piece Unit Removal
1. Rotate the rock rings fully CW direction so that
the eye piece unit can be pulled out.
screw (B)
screw (C)
(A)(A)
rock rings
Line
Screw(A)
