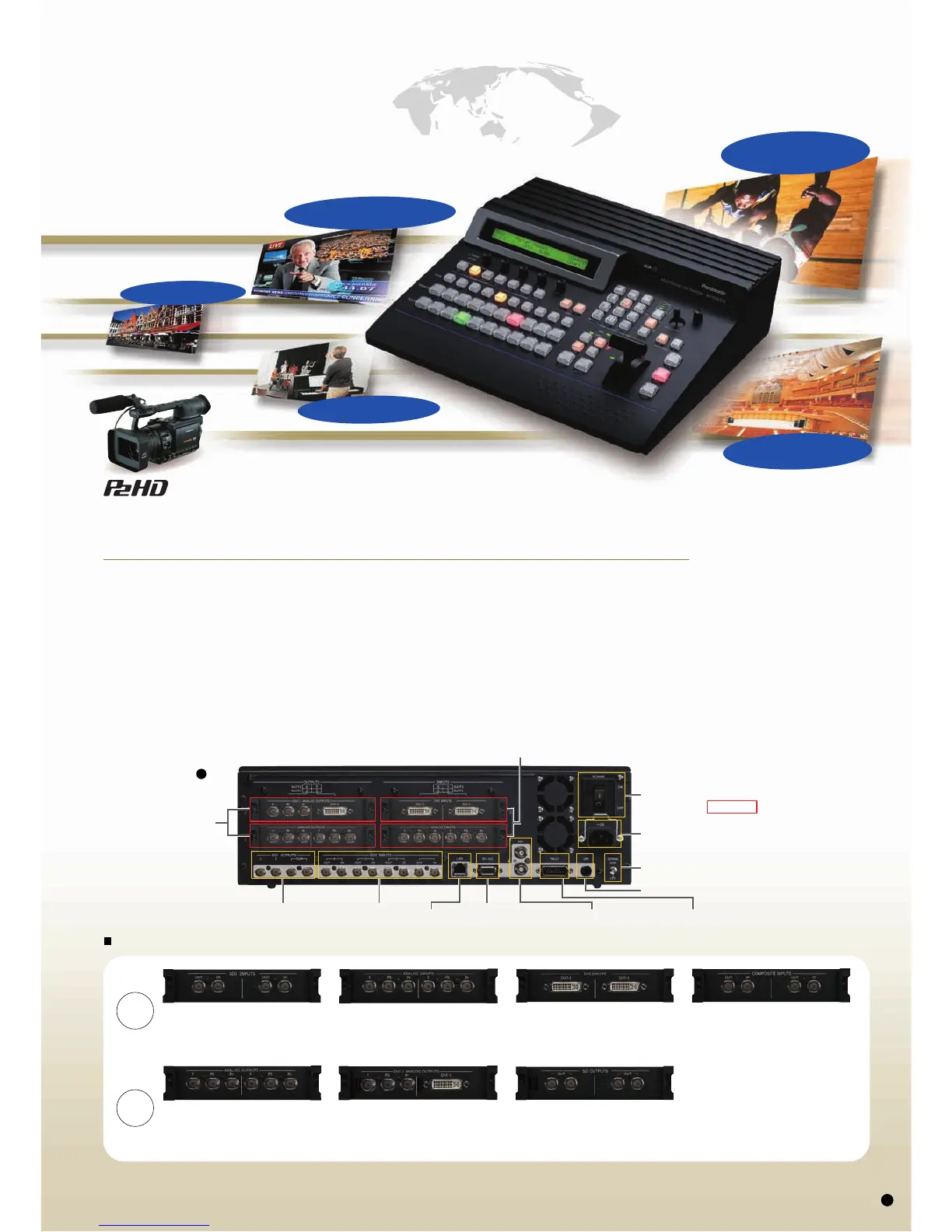

Panasonic AV-HS400A - SDI Standard Compatibility and Expansion; Video Input and Output Capabilities; Option Boards for Input;Output Expansion

Compatible with HD/SD cameras
worldwide.
SDI Standard Compatible, with up to 8 Video Inputs and Outputs.
• Standard equipment includes 4 HD/SD-SDI inputs and outputs
*
.
• Optional input and output expansion boards (sold separately) include:
Input: Addition of up to 4 HD/SD-SDI inputs, up to 4 HD/SD analog components, up to 4 HD/SD analog composite,
or up to 4 DVI-I
**
. Moreover, each optional input board is equipped with an up-converter.
Output: Addition of up to 4 SDI, 4 Analog Component, and 2 DVI-I
***
outputs, with a maximum of 8 total outputs.
• Tally outputs for up to 8 cameras for extra convenience when operating as a live switcher.
• RS-422 compatible (GVG protocol) control jack.
*
Two interfaces assignable as PGM,PVW, AUX, multi-screen, and keyout.
**
Compatible with XGA, WXGA, SXGA.
***
Compatible with XGA (1024x768), WXGA (1280x768), SXGA (1280x1024), WSXGA+ (1680x1050)
****
, UXGA (1600x1200)****, WUXGA (1920x1200)****.
****
Digital output only.
News Magazine Show
Worldwide Production
Educational Solution
Concert Hall
Sports Arena
Option Slot x 2 (INPUTS)
SDI OUTPUTS
Option Slot x 2
(OUTPUTS)
SDI INPUTS RS-422 Interface
TALLY Output
Reference(REF) Input/BB OutputLAN Port
GPI Input
Ground
Power inlet
POWER
Switch
Optional boards enable expansion of
inputs/outputs (up to two of each).
The photography at left is shown with
the AV-HS04M3 (top right)/AV-HS04M2
(bottom right)/ AV-HS04M5 (top left)/
AV-HS04M4 (bottom left) added.
SDI INPUTS BOARD
AV-HS04M1
ANALOG INPUTS BOARD
AV-HS04M2
DVI INPUTS BOARD
AV-HS04M3
ANALOG COMPOSITE INPUTS BOARD
AV-HS04M6
Memory Card Camera-Recorder
ANALOG OUTPUTS BOARD
AV-HS04M4
DVI/ANALOG OUTPUTS BOARD
AV-HS04M5
SDI OUTPUTS BOARD
AV-HS04M7
• INPUTS : HD/SD-SDI x2
(BNC)(Built-in Up-converter)
• INPUTS : HD/SD Analog Component x2
(Y/Pb/Pr)(Built-in Up-converter)
• INPUTS : DVI-I x2 (Built-in Scaler) • INPUTS : Analog Composite x2
(Built-in Up-converter)
*
AV-HS04M6/HS04M7 is exclusively for the
AV-HS400A.
The AV-HS400 must be upgraded to use the
AV-HS04M6/HS04M7. For details, please contact
your local Panasonic reseller or representative.
• OUTPUTS : Analog Component x2
(Y/Pb/Pr)
• OUTPUTS : DVI-I x1, Analog Component x1
(Y/Pb/Pr)
• OUTPUTS : HD/SD-SDI x2
(Each one has 2 outputs)(BNC)
(Built-in Down-converter)
*
*
INPUTS
OUTPUTS
Rear
Option Boards You can expand inputs/outputs to match your requirements.
