Installation (The installation work must be performed by your dealer without fail.)
Stand-alone installationSuspended installation
Tilting Arm
$ Assembling the pan/tilt head
Be absolutely sure to hold the pan/tilt head by the base when handling it.
OAttaching the tilting arm

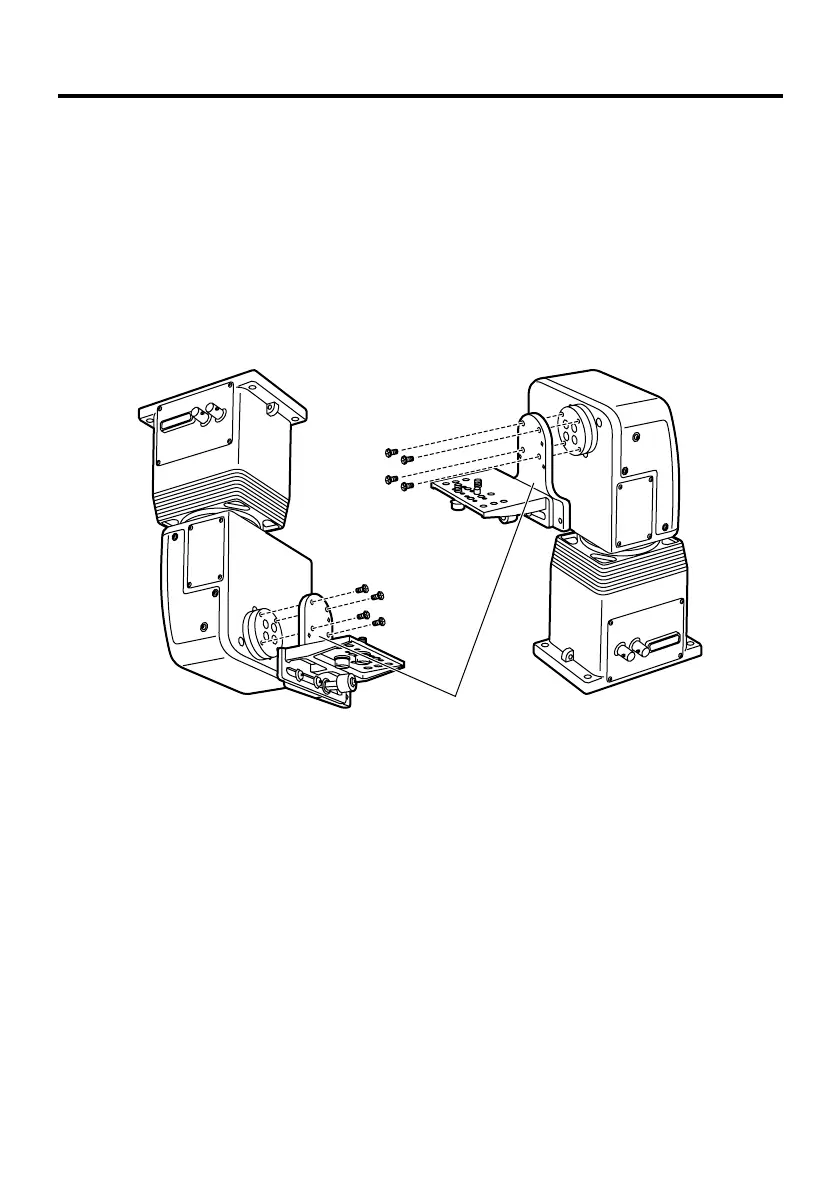

Use the tilting arm fixing screws to attach the tilting arm. The way in which the arm is
mounted differs depending on the direction in which it is installed. (See the figure below.)
<Note>
Tighten up the screws securely to ensure that they will not come loose during use.
