1. Attach the power cord to the monitor unit.
2. Connect the power cord to the power outlet.
g When using external DC power (DC11V–17V)
You can slide open the power cover, and switch from
AC input to external DC input. (When shipped from
the factory, the power cover is up, and AC input is
selected.)
Please note the following
If the power cover has been removed or opened, do not
use the monitor with the power supply connected to
both the AC input and external DC input terminals.

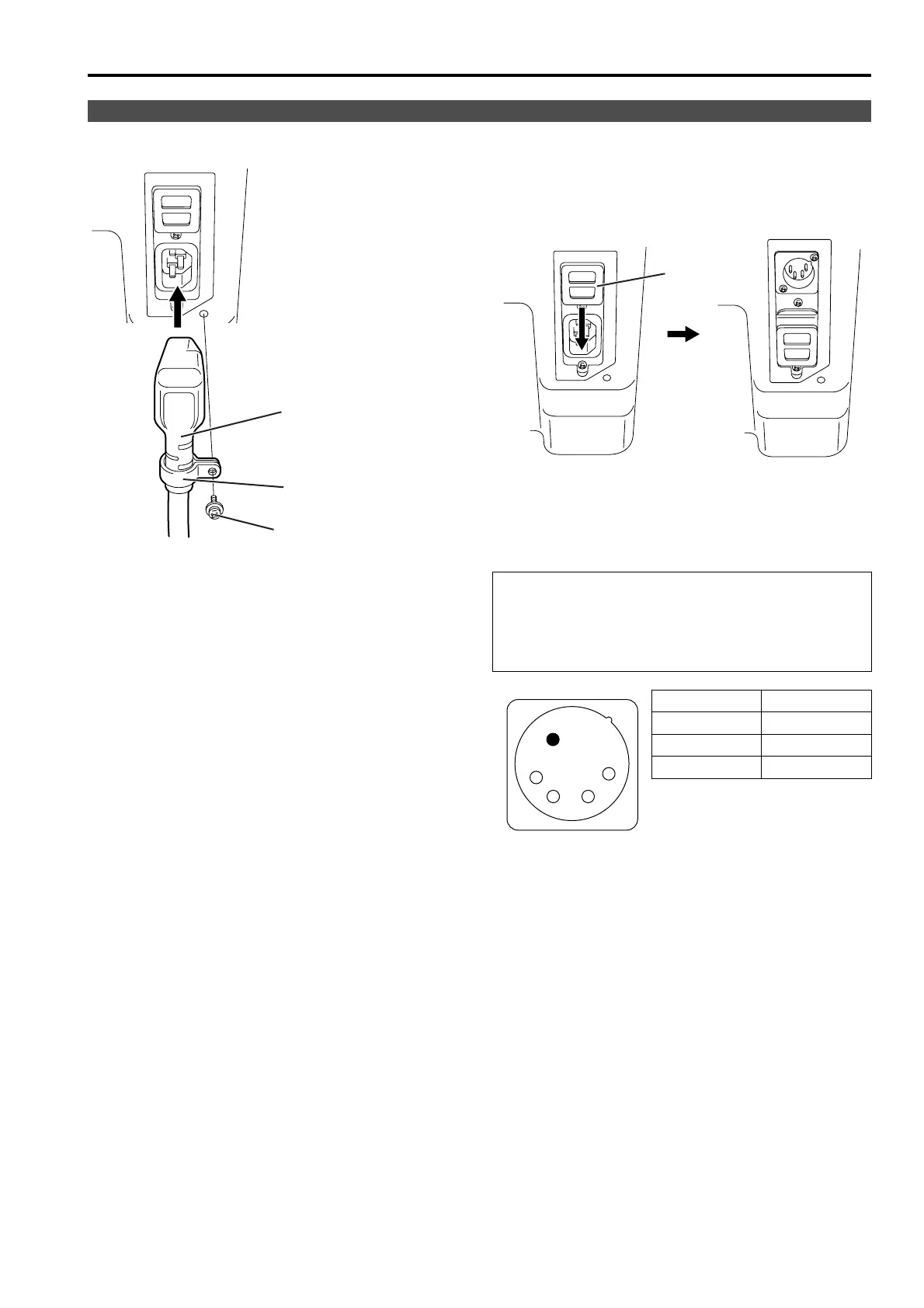

Connecting and fixing the power cord
Power cord hook
Using the power cord
hook and the screw,
attach the power cord to
the monitor unit.
Power cord
Screw
When using external DC power (DC11V–17V), check
the external DC input terminal pin signal, and use the
correct polarity. If a +12V power supply is accidentally
connected to the GND terminal, this could cause a fire
or personal injury.
Pin number Signal
1GND
2, 3 —
4+12V
External DC input terminal
Power cover
1
23
4
Power Supply
