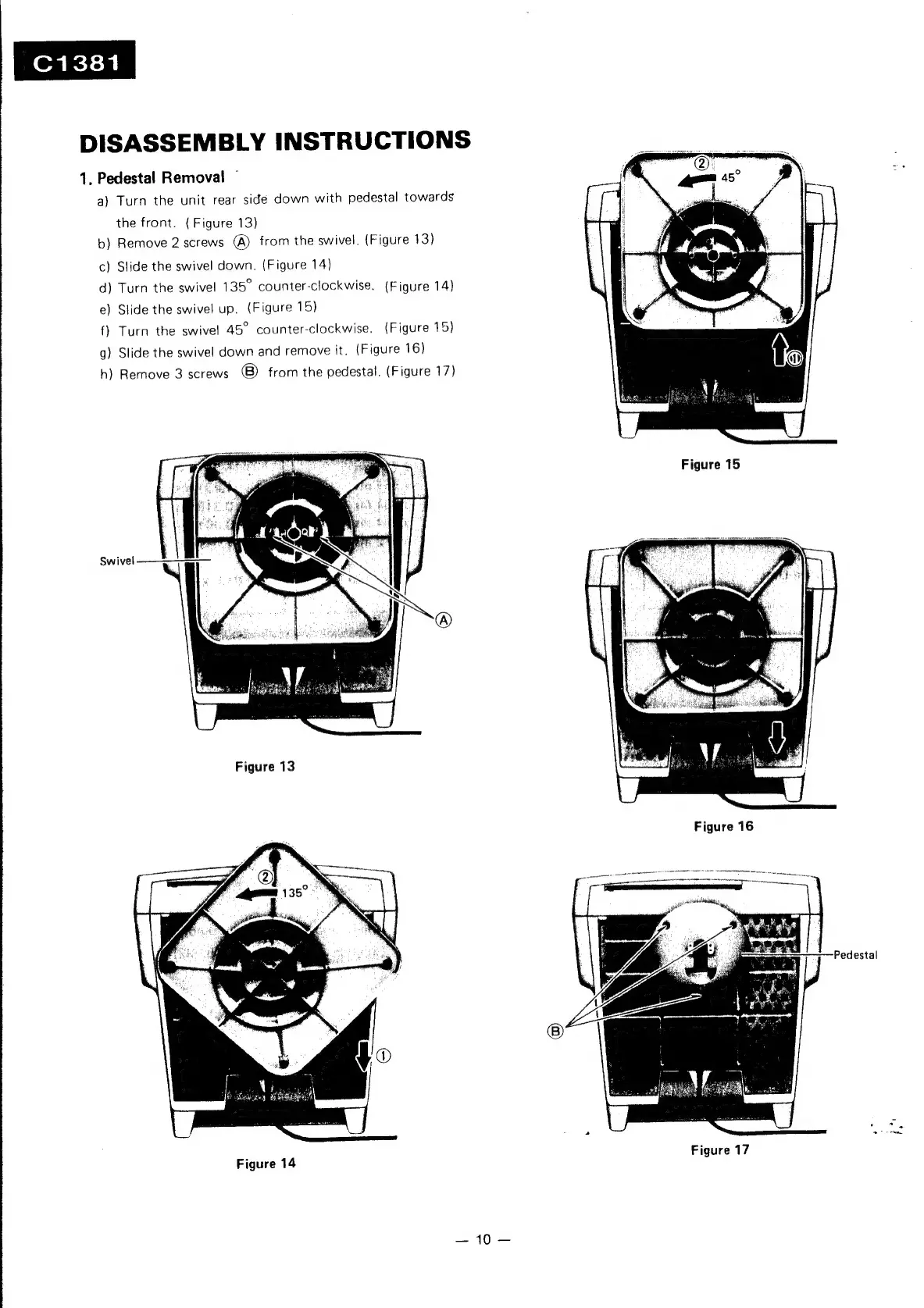

DISASSEMBLY
INSTRUCTIONS
1. Pedestal Removal —
a)
Turn
the
unit
rear
side
down
with
pedestal
towards
the front. ( Figure 13)
b)
Remove
2
screws
(A)
from
the
swivel.
(Figure
13)
c) Slide the swivel down. (Figure 14)
d)
Turn
the
swivel
135°
counter-clockwise.
(Figure
14)
e)
Slide
the
swivel
up.
(Figure
15)
f}
Turn
the
swivel
45°
counter-clockwise.
(Figure
15)
g)
Slide
the
swivel
down
and
remove
it.
{Figure
16)
h)
Remove
3
screws
from
the
pedestal.
(Figure
17)
Figure 15
Swivel
Figure 13
Figure
14
Figure
17
