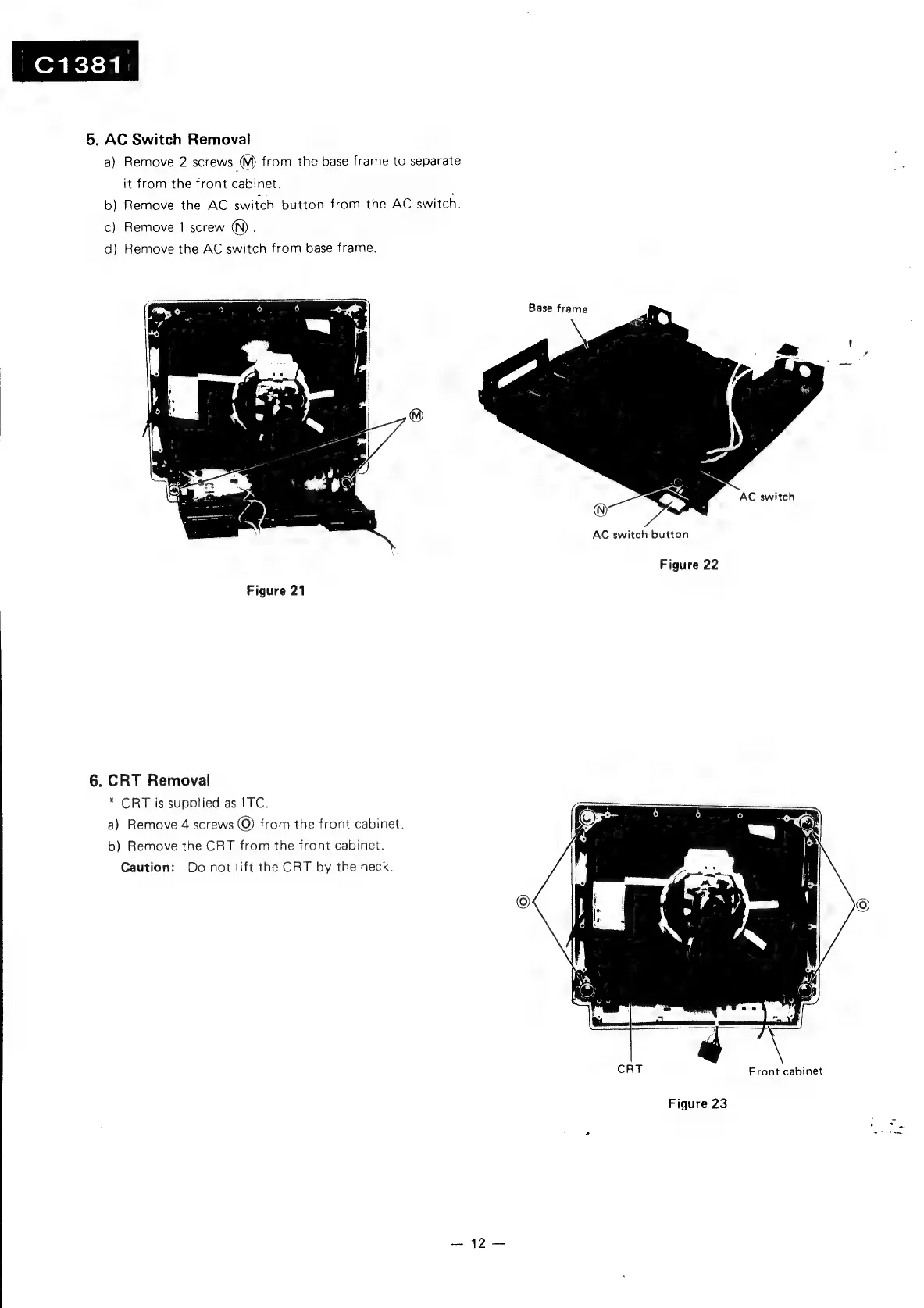

5. AC Switch Removal
a) Remove 2 screws (MW) from the base frame to separate
it from the front cabinet.
b) Remove the AC switch button from the AC switch,
c) Remove 1 screw (&).
d) Remove the AC switch from base frame.
Figure 21
6. CRT Removal
* CRT is supplied as ITC.
a) Remove 4 screws ©) from the front cabinet.
b) Remove the CRT from the front cabinet.
Caution: Do not lift the CRT by the neck.
= 42
Base frame
AC switch button
Figure 22
AC switch
CRT
Figure 23
Front cabinet
