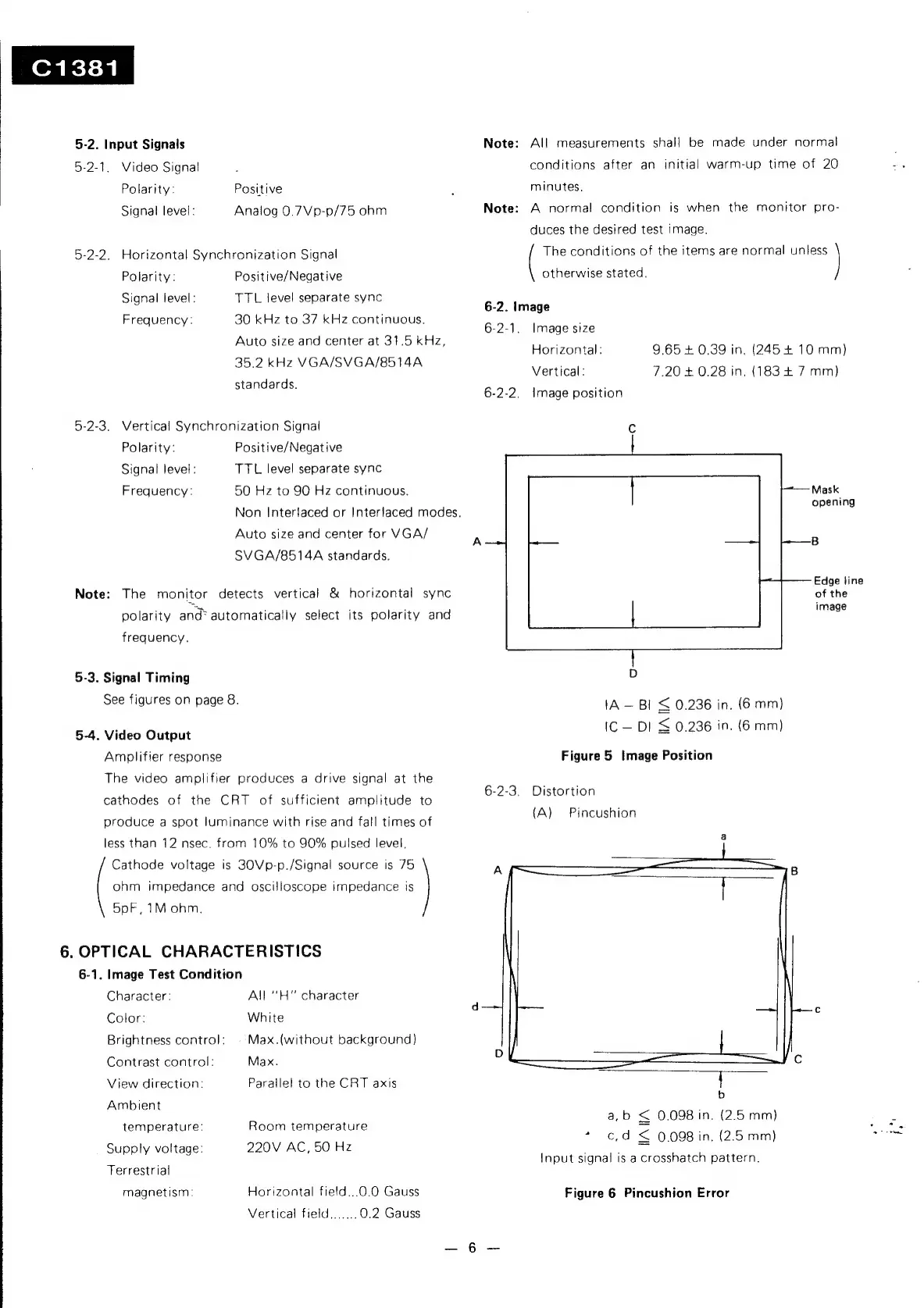

5-2.
Input
Signals
5-2-1,
5-2-2.
5-2-3.
Note:
Video
Signal
Polarity:
Positive
Signal
level:
Analog
0.7Vp-p/75
ohm
Horizontal
Synchronization
Signal
Polarity:
Positive/Negative
Signal
level:
TTL
level
separate
sync
Frequency
:
30
kHz
to
37
kHz
continuous.
Auto
size
and
center
at
31.5
kHz,
35.2
kHz
VGA/SVGA/8514A
standards.
Vertical
Synchronization
Signal
Polarity:
Positive/Negative
Signal
level:
TTL
level
separate
sync
Frequency:
50
Hz
to
90
Hz
continuous.
Non
Interlaced
or
Interlaced
modes.
Auto
size
and
center
for
VGA/
SVGA/8514A
standards.
The
monitor
detects
vertical
&
horizontal
sync
polarity
and?
automatically
select
its
polarity
and
frequency.
5-3.
Signal
Timing
See
figures
on
page
8.
5-4.
Video
Output
Amplifier
response
The
video
amplifier
produces
a
drive
signal
at
the
cathodes
of
the
CRT
of
sufficient
amplitude
to
produce
a
spot
luminance
with
rise
and
fall
times
of
less
than
12
nsec.
from
10%
to
90%
pulsed
level,
Cathode
voltage
is
30Vp-p./Signal
source
is
75
ohm
impedance
and
oscilloscope
impedance
is
5pF,1M
ohm.
6.
OPTICAL
CHARACTERISTICS
6-1.
Test
Condition
Character:
All
'H”
character
Color:
White
Brightness
control:
©
Max.(without
background)
Contrast
control:
Max.
View
direction:
Parallel
to
the
CRT
axis
Ambient
Supply
voltage:
Room
temperature
220V
AC,
50
Hz
temperature:
Terrestrial
Horizontal
field...0.0
Gauss
Vertical
field.......
0.2
Gauss
magnetism:
Note:
All
measurements
shall
be
made
under
normal
conditions
after
an
initial
warm-up
time
of
20
minutes,
Note:
A
normal
condition
is
when
the
monitor
pro-
duces
the
desired
test
image.
The
conditions
of
the
items
are
normal
unless
(
otherwise
stated.
6-2.
6-2-1.
size
Horizontal:
9.65
+
0.39
in.
(245+
10
mm)
Vertical:
7.20
£
0.28
in,
(183
+ 7
mm)
6-2-2,
position
6-2-3.
Cc
Mask
opening
B
Edge
line
of
the
D
1A
BI
S
0.236
in.
(6
mm)
IC
DI
S
0.236
in.
(6
mm)
Figure
5
Position
Distortion
(A)
Pincushion
a,b
<_
0.098
in.
(2.5
mm)
*
c,d
<
0.098
in.
(2.5
mm)
Input
signal
is
a
crosshatch
pattern.
Figure
6
Pincushion
Error
Fy
