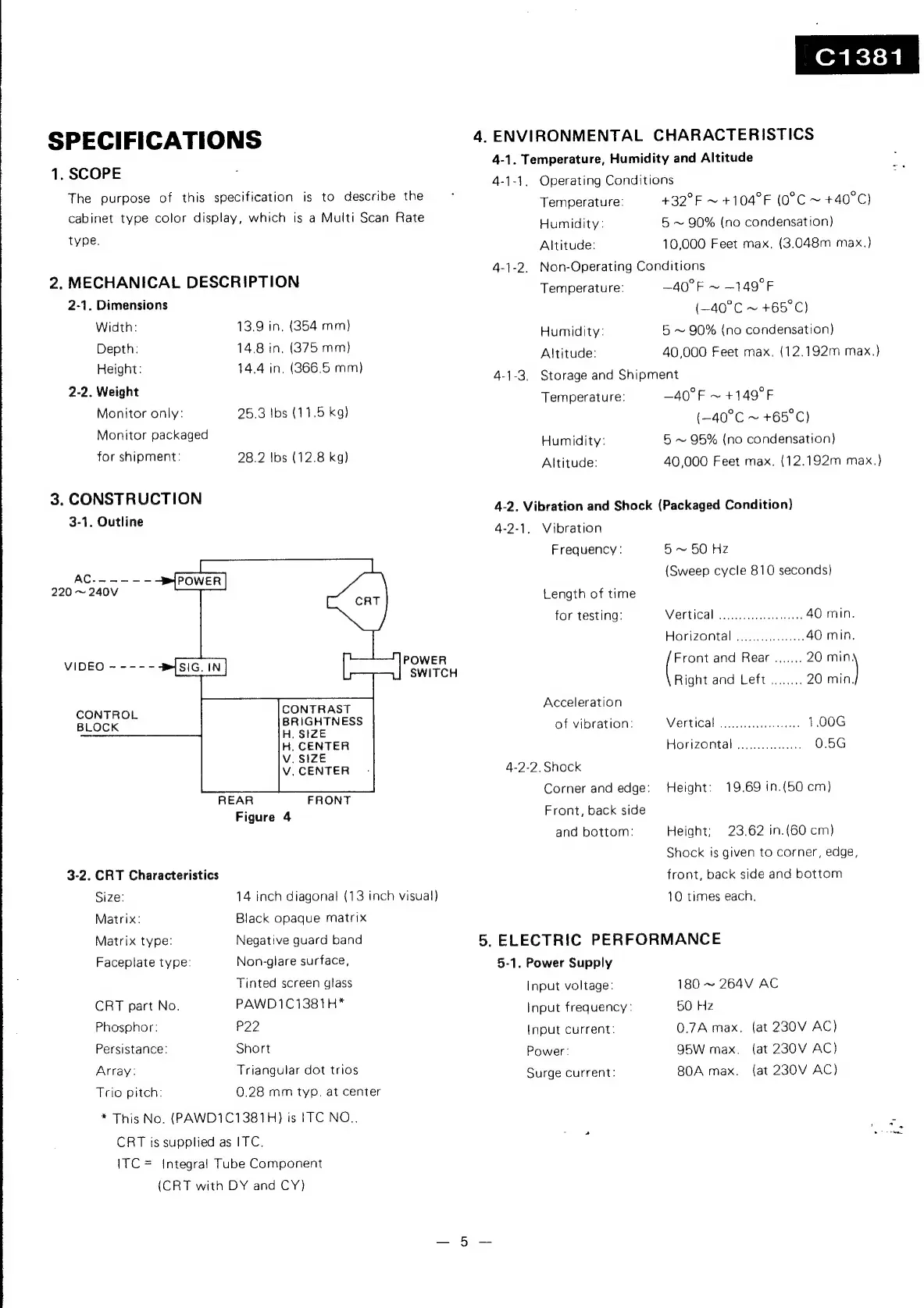

SPECIFICATION
1. SCOPE ;
The purpose of this specification is to describe the
cabinet type color display, which is a Multi Scan Rate
type.
2. MECHANICAL DESCRIPTION
2-1. Dimensions
Width: 13.9 in, (354 mm)
Depth: 14.8 in. (375 mm)
Height: 14.4 in. (366.5 mm)
2-2. Weight
Monitor only: 25.3 Ibs (11.5 kg)
Monitor packaged
for shipment: 28.2 Ibs (12.8 kg)
3. CONSTRUCTION
3-1. Outline
AC See ee
220 ~ 240V
VIDEO ~----
CONTR CONTRAST
Boece ec BRIGHTNESS
H. SIZE
H. CENTER
Vv. SIZE
V. CENTER
REAR FRONT
Figure 4
3-2. CRT Characteristics
Size: 14 inch diagonal (13 inch visual)
Matrix: Black opaque matrix
Matrix type: Negative guard band
Faceplate type: Non-glare surface,
Tinted screen glass
CRT part No. PAWD1C1381H*
Phosphor: P22
Persistance: Short
Array: Triangular dot trios
Trio pitch: 0.28 mm typ. at center
* This No. (PAWD1C1381H) is 1TC NO..
CRT is supplied as ITC.
ITC = Integral Tube Component
(CRT with DY and CY)
POWER
SWITCH
4. ENVIRONMENTAL CHARACTERISTICS
4-1. Temperature, Humidity and Altitude
4-1-1. Operating Conditions
Temperature:
+32°F
~
+104°F
(0°C
~
+40°C)
Humidity:
5
~ 90%
(no
condensation)
Altitude:
10,000
Feet
max.
(3.048m
max.)
4-1-2. Non-Operating Conditions
Temperature: —40°F ~ —149°F
(-40°C ~ +65°C)
Humidity: 5 ~ 90% (no condensation)
Altitude:
40,000
Feet
max.
(12.192m
max.)
4-1-3. Storage and Shipment
Temperature: —40°F ~ +149°F
(—40°C ~ +65°C)
Humidity: 5 ~ 95% (no condensation)
Altitude:
40,000
Feet
max.
(12.192m
max.)
4-2. Vibration and Shock (Packaged Condition)
4-2-1. Vibration
Frequency: 5 ~ 50 Hz
(Sweep cycle 810 seconds)
Length of time
for testing: Vertical oo... 40 min.
Horizontal oo... 40 min.
ae and Rear ....... 20 min:
Right and Left ........ 20 Fe
Acceleration
of vibration: Vertical oe, 1.00G
Horizontal ........... 0.5G
4-2-2. Shock
Corner and edge: Height: 19.69 !n.(60 cm)
Front, back side
and bottom: Height; 23.62 in.(60 cm)
Shock is given to corner, edge,
front, back side and bottom
10 times each.
5. ELECTRIC PERFORMANCE
5-1. Power Supply
Input voltage: 180 ~ 264V AC
Input frequency: 50 Hz
Input
current:
0.7A
max,
(at
230V
AC)
Power:
9Q5W
max.
(at
230V
AC)
Surge
current:
80A
max.
(at
230V
AC}
