CQ-D1703W

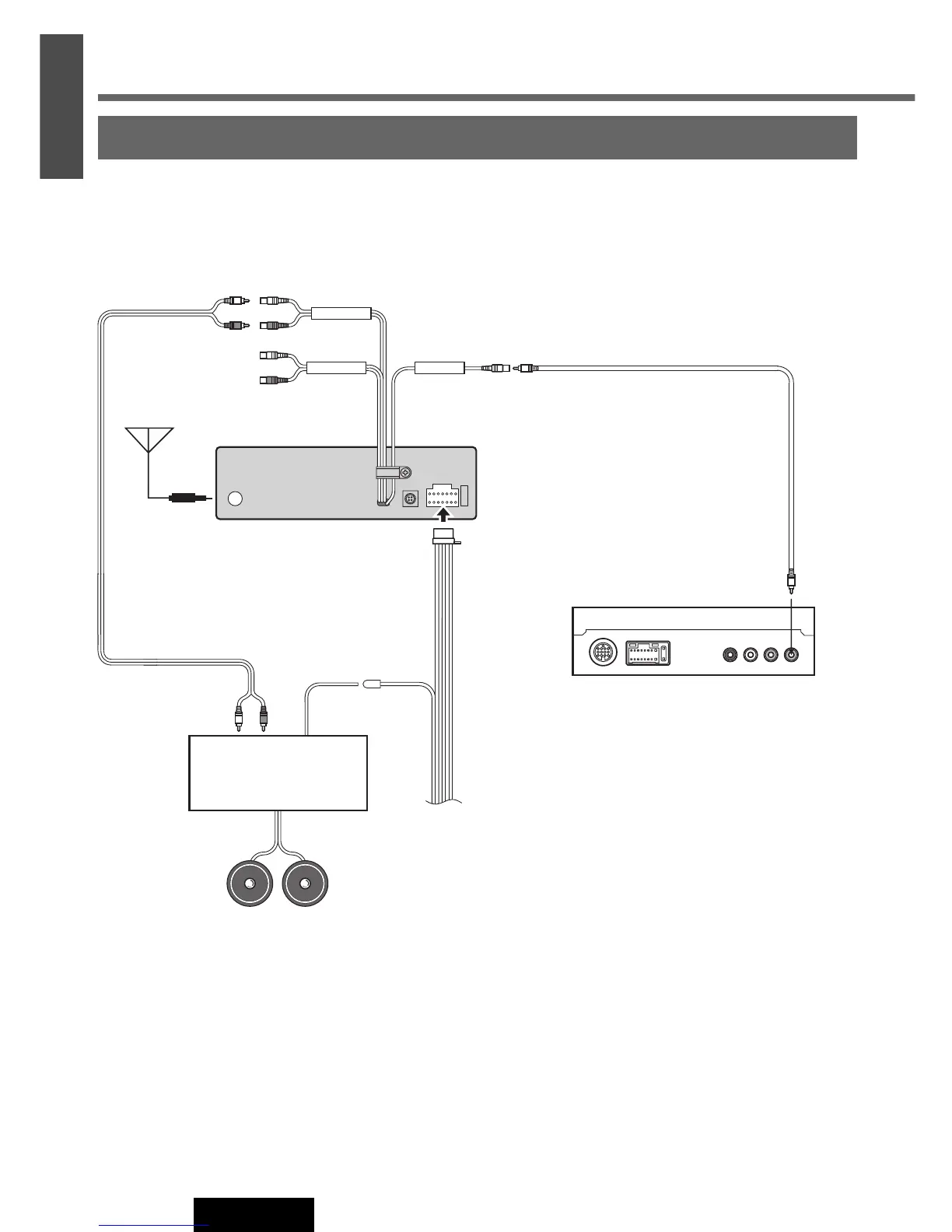

Wiring (continued)
Another Connection
Note:
¡Refer to the operating instructions for the connected devices, in addition.
PRE-OUT REAR
+ - + - + - + -
VIDEO-OUT
AUX2-IN
2ch External
Power Amplifier
CY-PA2003 (option)
Rear Speakers
CJ-DA6923
CY-VM7203W
(Option)
Color LCD Display
CQ-D1703W
DVD Player/Receiver
(R)(Red)
(L)(White)
(R)(Red)
(L)(White)
RCA Cord (Option)
VIDEO-OUT (Yellow)
VIDEO 1-IN
(Yellow)
External Amplifier
Control Power Lead
(Blue/white stripe)
Power Connector
RCA Cord
(option)
AUX2-IN
AUX2 input connector
PRE-OUT REAR
Preamp output connector (Rear)
