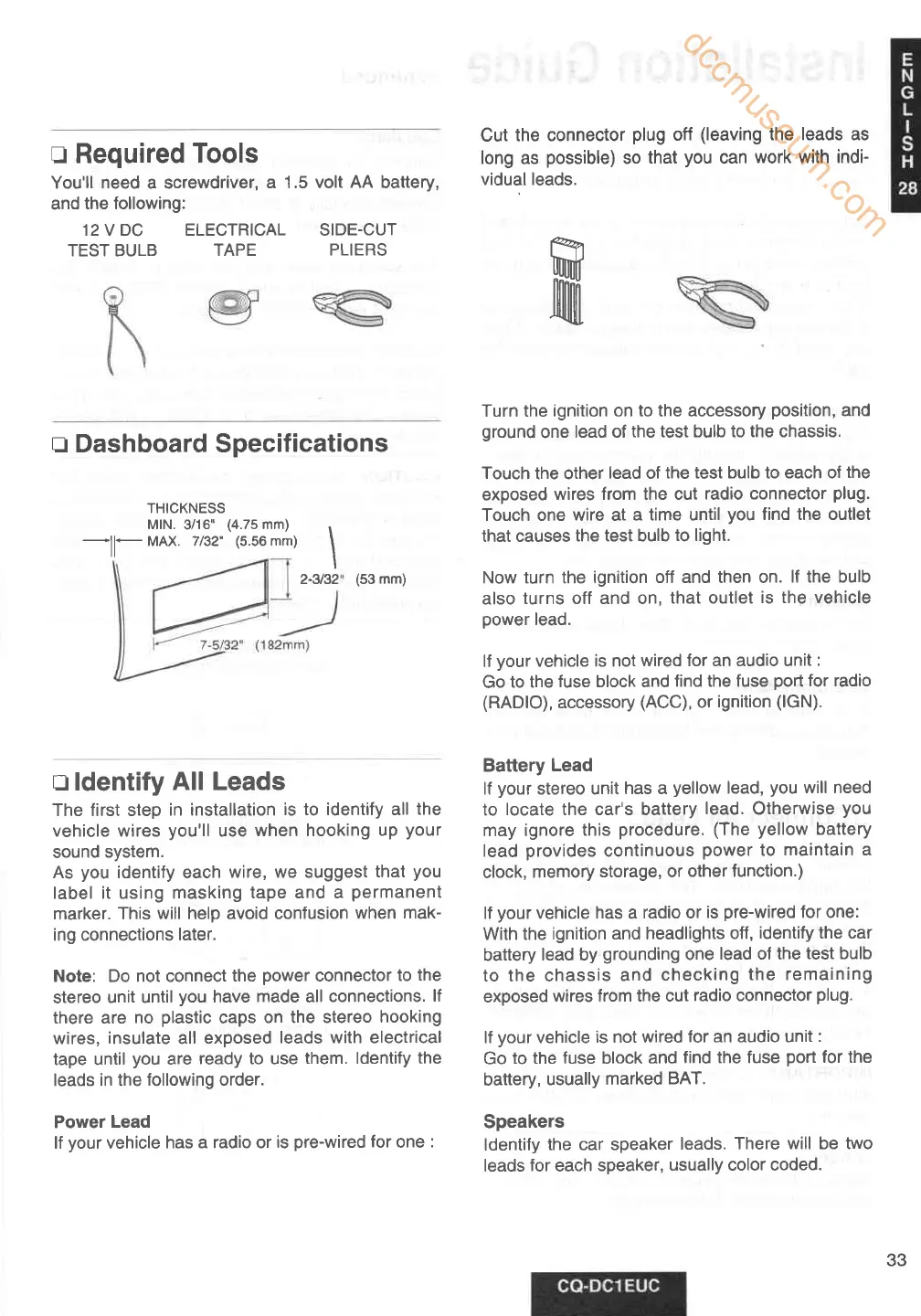

r Required
Tools
You'll
need
a screwdriver,
a 1.5 volt
AA
battery,
vidual leads'
and
the following:
12 V DC ELECTRICAL
TEST BULB
TAPE
Cut
the connector
plug
off
(leaving
the leads as
long as
possible)
so
that
you
can
work with indi-
Turn the
ignition on to the accessory
position,
and
ground
one
lead of
the test bulb to the chassis.
Touch
the other
lead of
the test bulb to each of
the
exposed
wires from the cut
radio connector
plug.
Touch one wire at
a time until
you
find the outlet
that causes
the test bulb
to light.
Now turn the ignition
off and then on.
lf the bulb
also
turns off and on,
that outlet
is the vehicle
power
lead.
lf
your
vehicle is not
wired for an audio unit
:
Go
to the
fuse block and
find the fuse
port
for radio
(RADIO),
accessory
(ACC),
or
ignition
(lGN).
Battery
Lead
lf
your
stereo unit
has a
yellow
lead,
you
will need
to
locate the car's battery
lead.
Otherwise
you
may ignore
this
procedure. (The
yellow
battery
lead
provides
continuous
power
to
maintain a
clock,
memory
storage, or
other function.)
lf
your
vehicle
has
a
radio or
is
pre-wired
for one:
With the
ignition and headlights
off,
identify the car
battery
lead by
grounding
one
lead of the
test bulb
to the chassis
and
checking
the remaining
exposed
wires
from the cut
radio connector
plug.
lf
your
vehicle
is not wired
for an audio unit
:
Go
to the
fuse
block
and
find the fuse
port
for the
battery,
usually
marked
BAT.
Speakers
ldentify
the car speaker
leads.
There will be two
leads
for
each
speaker,
usually color coded.
SIDE-CUT
PLIERS
ffi
n Dashboard Specifications
THICKNESS
MlN.
3/16"
(4.75mm)
-ll-
MAx. 7t32'
(5.56
mm)
n ldentify
AII Leads
The first step
in installation
is to identify all
the
vehicle wires
you'll
use
when hooking
up
your
sound
system.
As
you
identify each
wire, we suggest
that
you
label it using masking
tape and a
permanent
marker. This
will help avoid confusion
when
mak-
ing connections
later.
Note: Do not connect
the
power
connector
to
the
stereo
unit until
you
have
made
all
connections.
lf
there are
no
plastic
caps
on the stereo
hooking
wires,
insulate
all
exposed
leads with electrical
tape until
you
are
ready to use
them. ldentify
the
leads in the
following order.
Power
Lead
lf
your
vehicle
has a radio or
is
pre-wired
for
one
:
\
2-9132
(53
mm)
33
