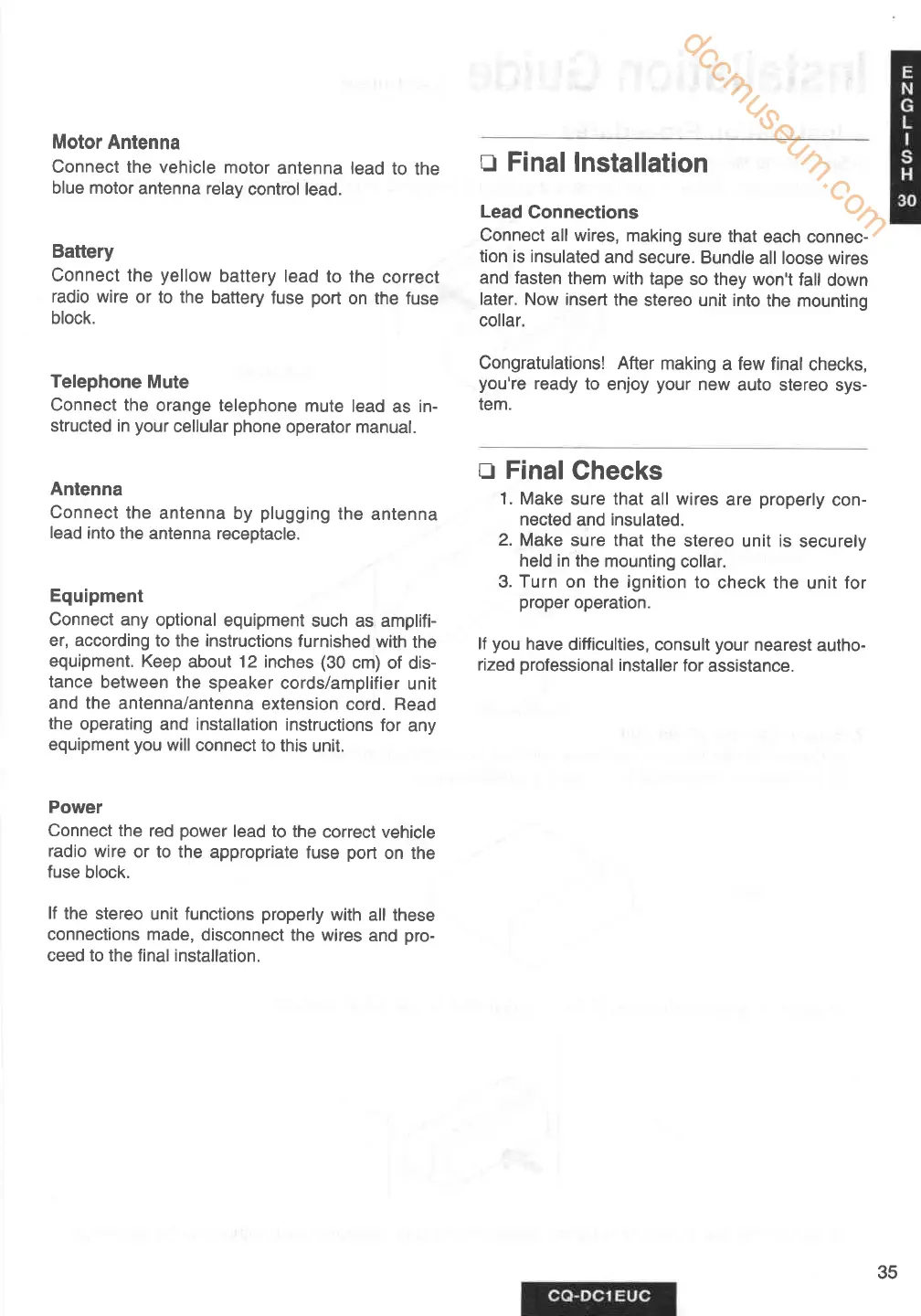

Motor
Antenna
Connect the
vehicle motor
antenna lead
to
the
blue motor
antenna relay
control lead.
Baftery
Connect the
yellow
battery lead
to the
correct
radio
wire or to the
battery
fuse
port
on the fuse
block.
Telephone
Mute
Connect the
orange telephone
mute
lead
as
in-
structed in
your
cellular
phone
operator manual.
Antenna
Connect
the
antenna by
plugging
the
antenna
lead
into the
antenna receptacle.
Equipment
Connect any
optional
equipment
such as amplifi-
er, according
to the instructions
furnished
with
the
equipment.
Keep
about 12 inches
(30
cm)
of dis-
tance
between the
speaker
cords/amplifier
unit
and the
antenna/antenna
extension
cord. Read
the
operating
and installation
instructions
for
any
equipment
you
will
connect to
this
unit.
Power
Connect the
red
power
lead to the
correct
vehicle
radio
wire
or to the
appropriate
fuse
port
on the
fuse
block.
lf
the stereo
unit functions
properly
with all these
connections made,
disconnect the wires
and
pro-
ceed to the final installation.
s Final
lnstallation
Lead
Connections
Connect all wires,
making
sure that
each connec-
tion is insulated
and secure.
Bundle
all loose wires
and fasten
them with
tape
so they won't
fall
down
later.
Now insert
the
stereo unit into
the mounting
collar.
Congratulations! After
making
a few final
checks,
you're
ready
to
enjoy
your
new
auto stereo
sys-
tem.
o Final
Checks
1. Make
sure that
all
wires
are
properly
con-
nected
and
insulated.
2.
Make sure that
the stereo
unit is
securely
held in the
mounting
collar.
3. Turn on the ignition
to
check the
unit
for
proper
operation.
lf
you
have
difficulties,
consult
your
nearest
autho-
rized
professional
installer
for
assistance.
