11 Installation Instruction
INDOOR UNIT
• There should not be any heat source or steam near the unit.
• There should not be any obstacles blocking the air
circulation.
• A place where air circulation in the room is good.
• A place where drainage can be easily done.
• A place where noise prevention is taken into consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall, ceiling,
fence or other obstacles.
• Recommended installation height for indoor unit shall be at
least 2.5 m.
OUTDOOR UNIT
• If an awning is built over the unit to prevent direct sunlight or
rain, be careful that heat radiation from the condenser is not
obstructed.
• There should not be any animal or plant which could be
affected by hot air discharged.
• Keep the spaces indicated by arrows from wall, ceiling,
fence or other obstacles.
• Do not place any obstacles which may cause a short circuit
of the discharged air.
• If piping length is over 7.5m, additional refrigerant should be
added as shown in the table.
Example: For A24GK
If the unit is installed at a 10m distance, the quantity of
additional refrigerant should be 75g....(10 - 7.5)m x 30g/m =75g

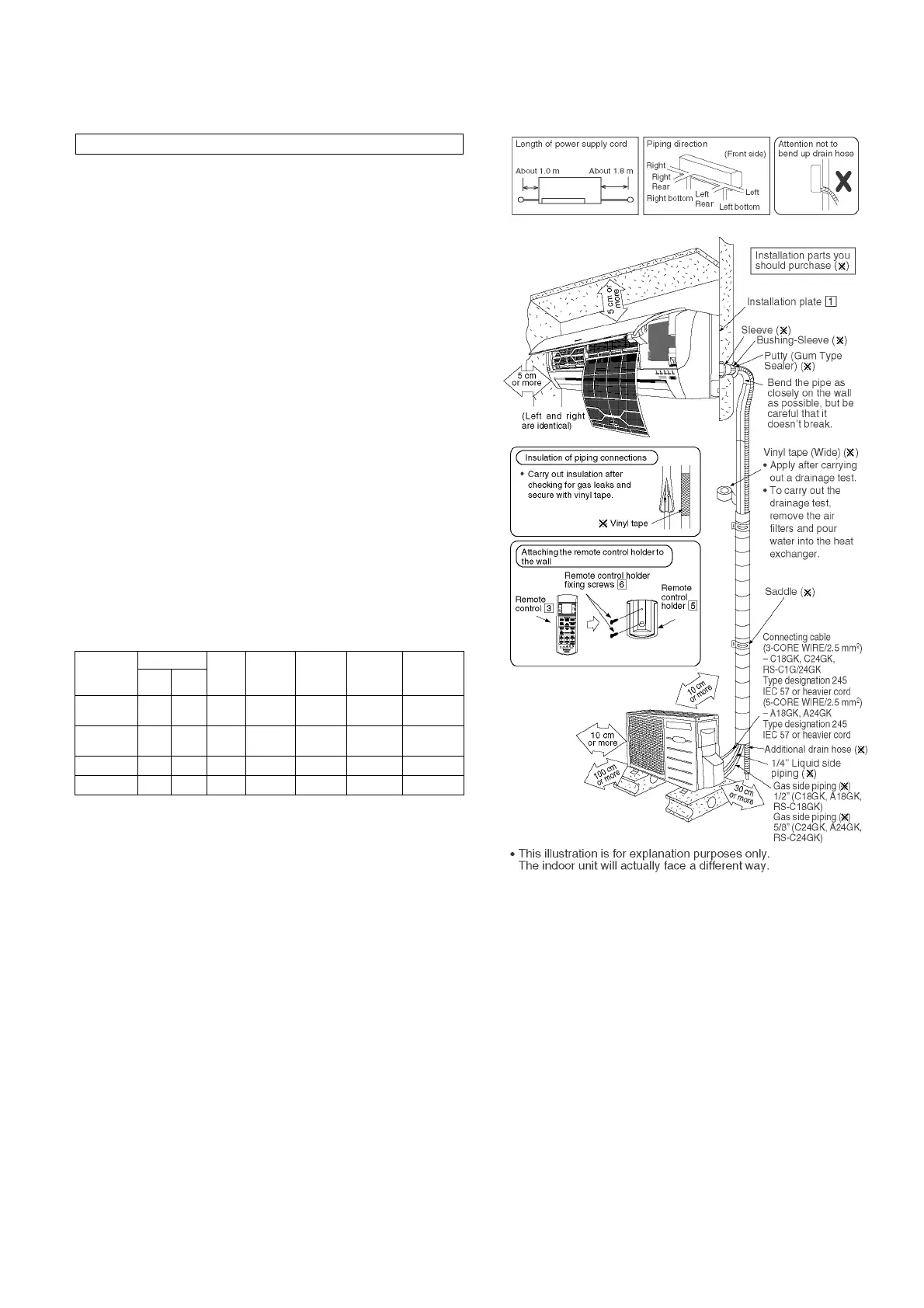

Indoor/Outdoor Unit Installation Diagram
SELECT THE BEST LOCATION
Model
Piping size
Rate
Length
(m)
Max.
Elevation
(m)
Min.
Piping
Length (m
Max. Piping
Length (m)
Additional
Refrigeration
(g/m)
Gas Liquid
C18GK,
RS-C18GK
1/2” 1/4” 5 20
3
25 20
C24GK,
RS-C24GK
5/8” 1/4” 5 20
3
25 30
A18GK 1/2” 1/4” 5 20
3
25 20
A24GK 5/8” 1/4” 5 20
3
25 30
