- Do not place any obstacles which may cause a short circuit of the
discharged air.
- If piping length is over 10 m, additional refrigerant should be added
as shown in the table.

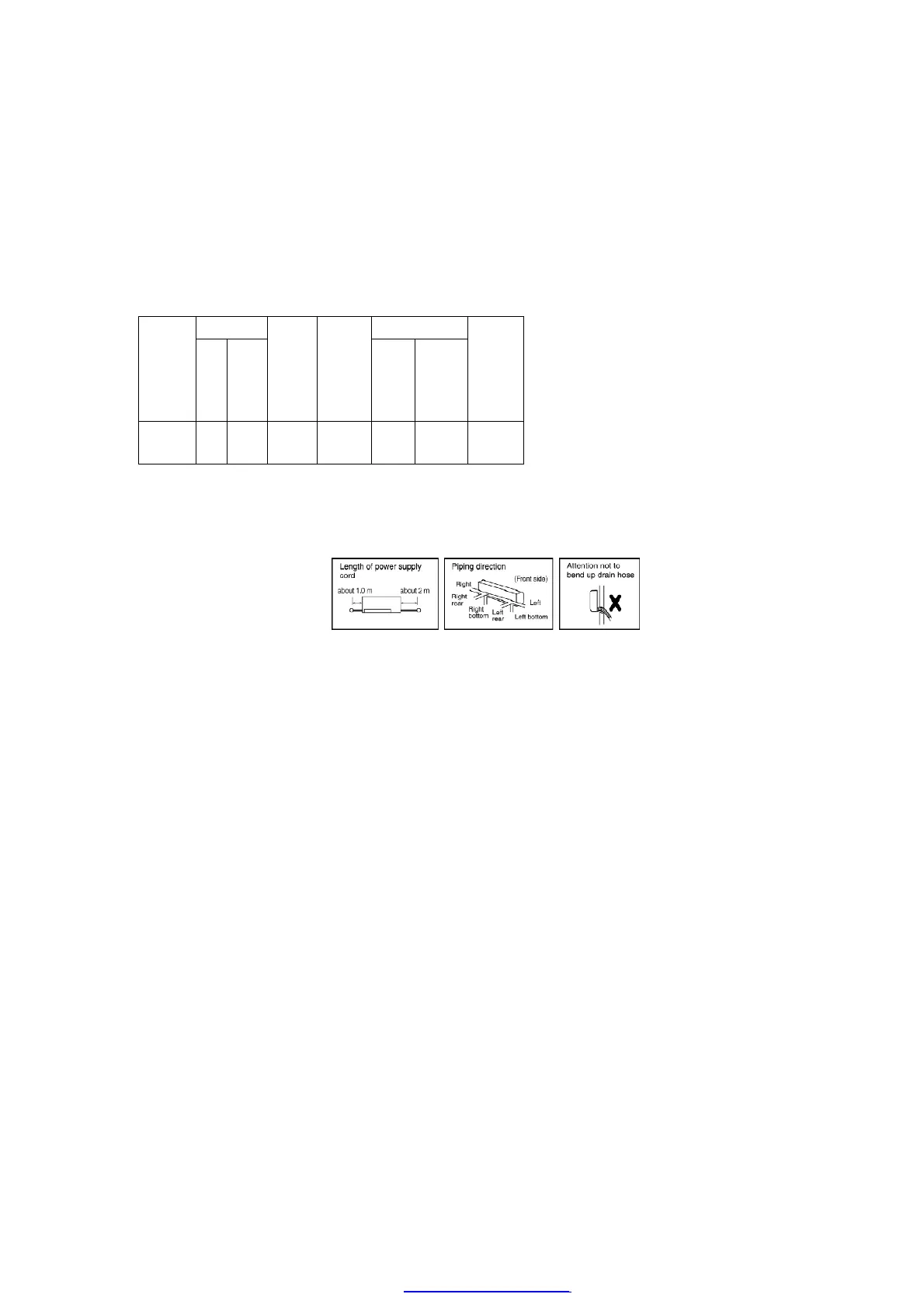

Piping length and the elevation
Pipe size Max.
Piping
Length
A (m)
Max.
Eleva-
tion B
(m)
Rated Addi-
tional
Refri-
gerant
(g/m)
Model
Gas
/ /
Liquid
/
Length
Eleva-
tion
A281KR
5/
8”
1/4” 30 25 7.5 5 40
Indoor/Outdoor unit installation diagram
