illustration at below.

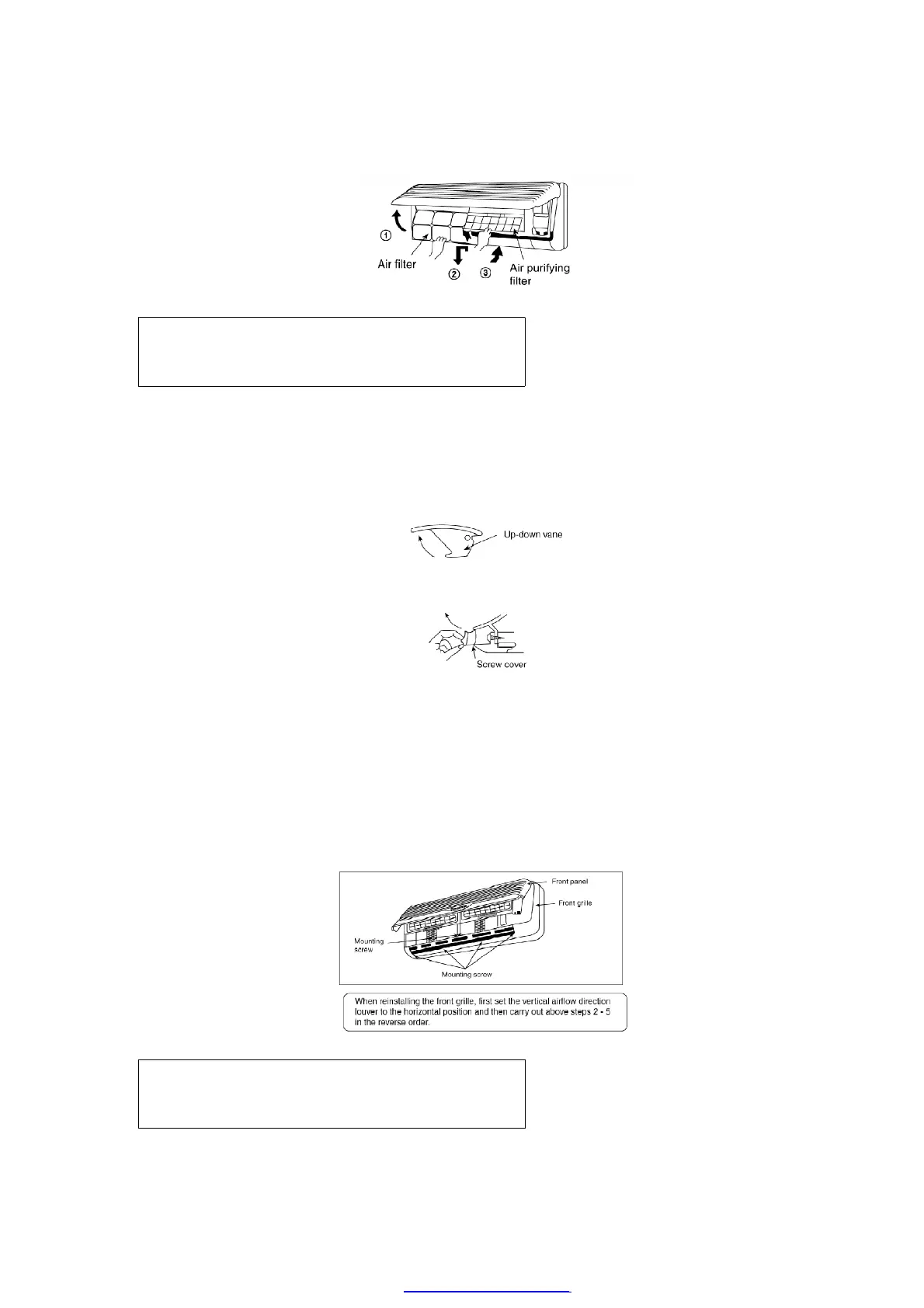

HOW TO TAKE OUT FRONT GRILLE
Please follow below steps to take out front grille if necessary such as when servicing.
Remove the Grille from the chassis.
1. Set the up-and-down air direction louver to open position
(horizontally) by finger pressure.
2. Open the three screw covers as shown in the illustration below.
3. Remove the five mounting screws.
4. Open the front panel and remove a mounting screw at the centre.
(Refer Diagram below)
5. To remove the Grille, pull the lower left and right side of the grille
towards you (slightly tilted) and lift it straight upwards (Two tabs
on the top inside edge of the grille are clear of their slots).
REMOTE CONTROL NO. SWITCH
38
