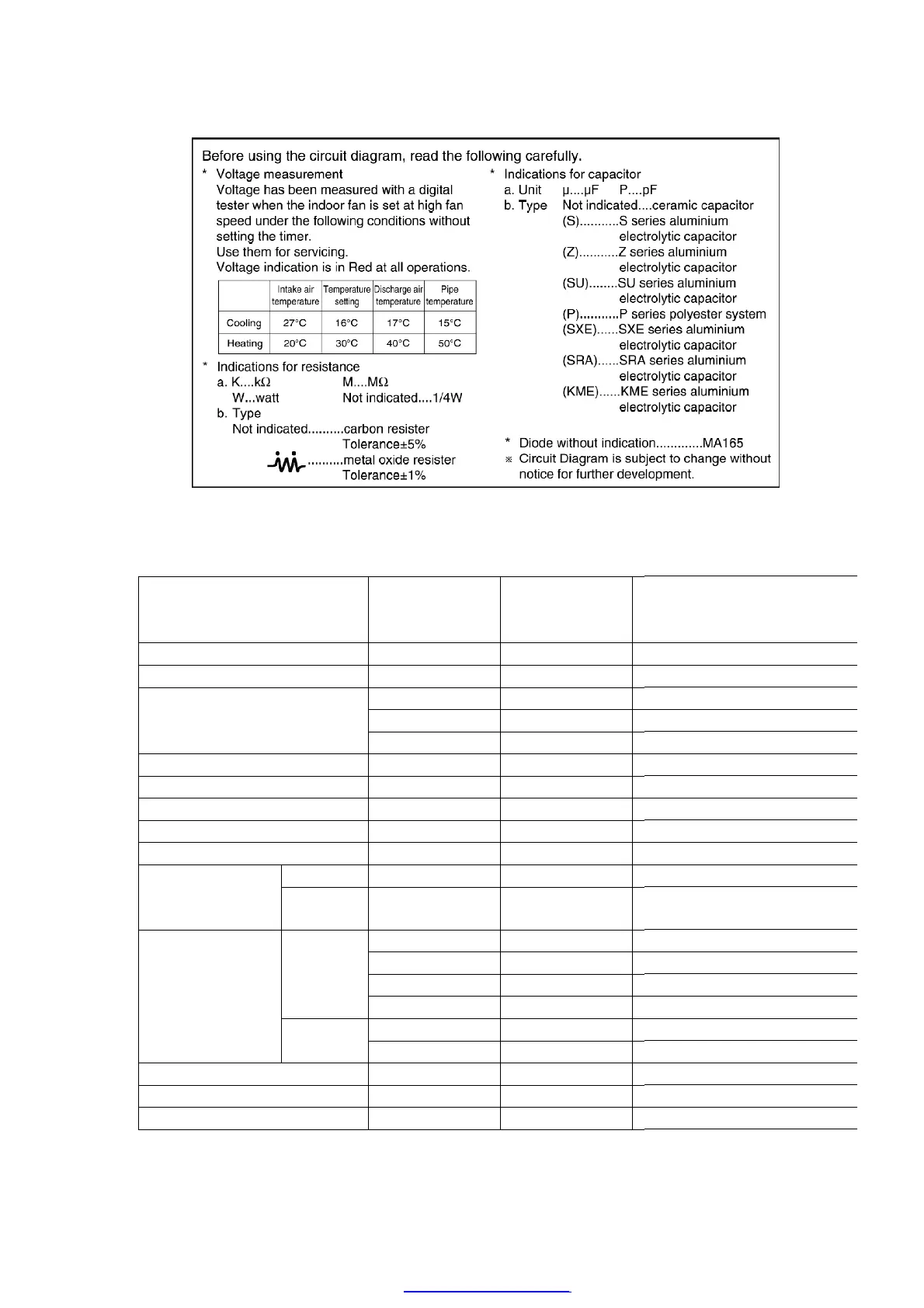

TIMER TABLE
Test mode
Name Time (When test point Remarks
Short-circuited)
Sleep Mode Waiting 1 hr. 6 sec.
Sleep Mode Operation 8 hrs. 48 sec.
1 hr. 1 min.
Real Timer 10 min. 10 sec.
1 min. 1 sec.
Time Delay Safety Control 2 min. 58 sec. 0 sec.
Forced Operation 60 sec. 0 sec.
Time Save Control 7 min. 42 sec.
Anti-Freezing Control 4 min. 0 sec.
Mode Judgement 20 sec. 0 sec.
Soft Dry Off 6 min. 36 sec.
On 10 min. 60 sec. SOFT DRY: 10 min.
operation
Deodorizing
Control
40 sec. 4 sec. Comp. ON
Cooling 70 sec. 7 sec. Comp. ON
20 sec. 2 sec. Comp. OFF
180 sec. 18 sec. Comp. OFF
Soft Dry 40 sec. 4 sec. Comp. ON
360 sec. 36 sec. Comp. OFF
Indoor Fan Step Change 1 sec. 0 sec.
After Deice Ended 30 sec. 3 sec. Comp. OFF, F/Motor ON
4-Way valve 5 min. 30 sec.
77
