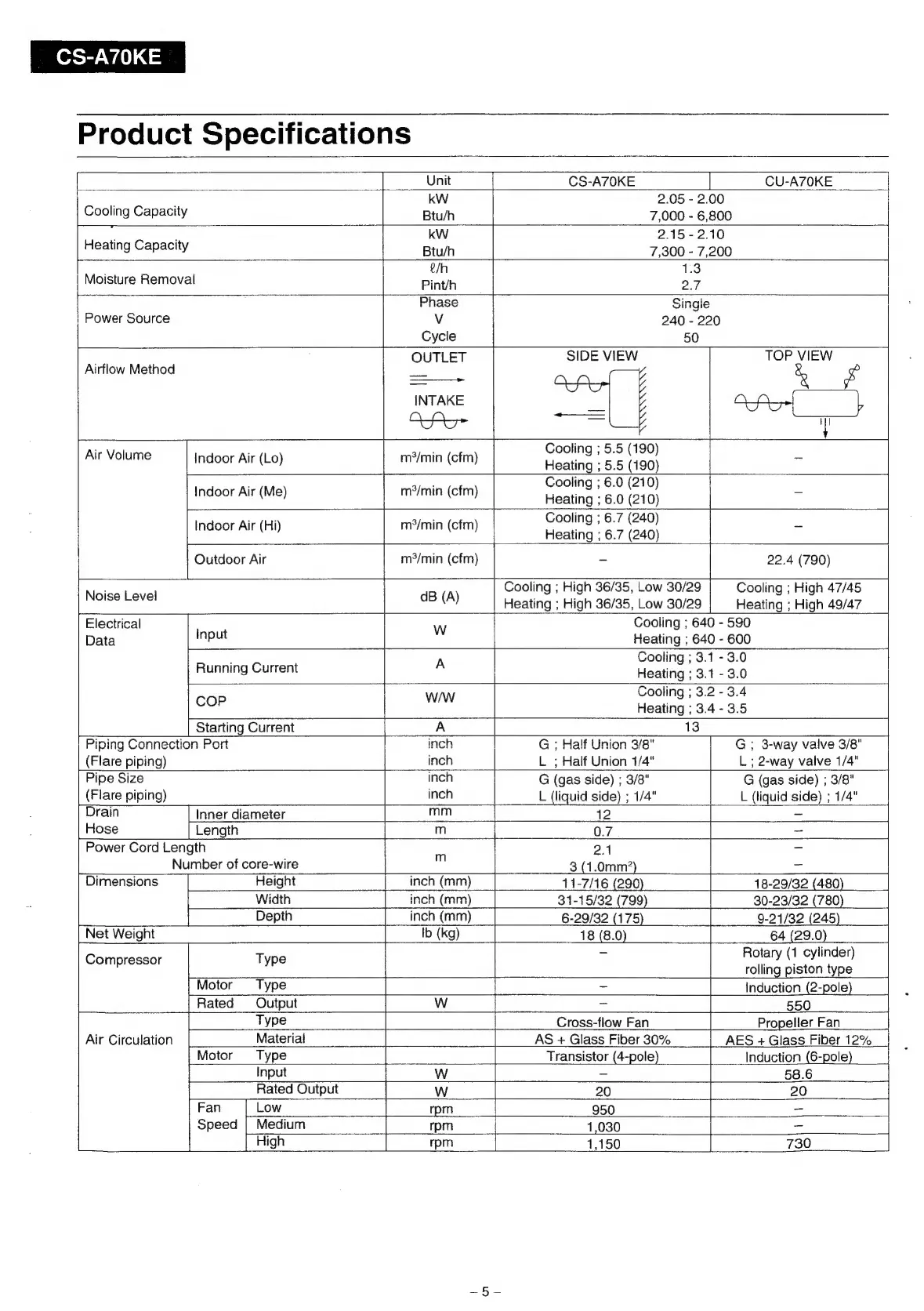

Product Specifications
Unit CS-A70KE | CU-A70KE
kw 2.05 - 2.00
Cooling Capacity Btu/n 7,000 - 6,800
‘ kW 2.15 - 2.10
Heating Capacity Btu/h 7,300 - 7,200
2/n 1.3
Moisture Removal Pint/h 27
Phase Single
Power Source V 240 - 220
Cycle 50
OUTLET SIDE VIEW TOP VIEW
Airflow
Method
a
&
‘s
INTAKE — Ref}
|
Air Volume Indoor Air (Lo) m/min (cfm) on ee neo =
indoor Air (Me) m3/min (cfm) eu 2 ea s
Indoor
Air
(Hi)
m?/min
(cfm)
oe
ts
oy
z
Outdoor Air m?/min (cfm) - 22.4 (790)
. = + Cooling ; High 36/35, Low 30/29 Cooling ; High 47/45
Noise Level dB (A) Healing ; High 36/35, Low 30/29 Heating High 49/47
Electrical Ww Cooling ; 640 - 590
Data Input Heating ; 640 - 600
; Cooling ; 3.1 - 3.0
Running Current A Heating : 3.1 - 3.0
Cooling ; 3.2 - 3.4
COP Heating ; 3.4 - 3.5
Starting Current 13
Piping Connection Port inch | G ; Half Union 3/8" G; 3-way valve 3/8"
(Flare piping) inch L ; Half Union 1/4" L ; 2-way valve 1/4"
Pipe Size inch G (gas side) ; 3/8" G (gas side) ; 3/8"
(Flare piping) inch L (liquid side) ; 1/4" L (liquid side) ; 1/4"
Drain Inner diameter mm 12 =
Hose Length | m 0.7 -
Power Cord Length 24 =
Number of core-wire mn 3 (1.0mm?) I -
Dimensions Height inch (mm) 11-7/16 (290) 18-29/32 (480)
Width inch (mm) 31-15/32 (799) 30-23/32 (780)
Depth inch (mm) 6-29/32 (175) 9-21/32 (245)
Net Weight Ib (kg) 18 (8.0) 64 (29.0)
= Rotary (1 cylinder)
COmbiessoh Type L rolling piston type
Motor Type = Induction (2-pole)
Rated Output Ww - 550
Type Cross-flow Fan Propeller Fan
Air Circulation Material AS + Glass Fiber 30% AES + Glass Fiber 12%
| Motor Type Transistor (4-pole) Induction (6-pole)
Input r Ww - 58.6
Rated Output W 20 20
Fan
|
Low
rpm
950
Si
Speed | Medium rpm 1,030 -
| High rpm 1,150 730
