Panasonic CS-A95KE - 8.10. Airflow Direction Control

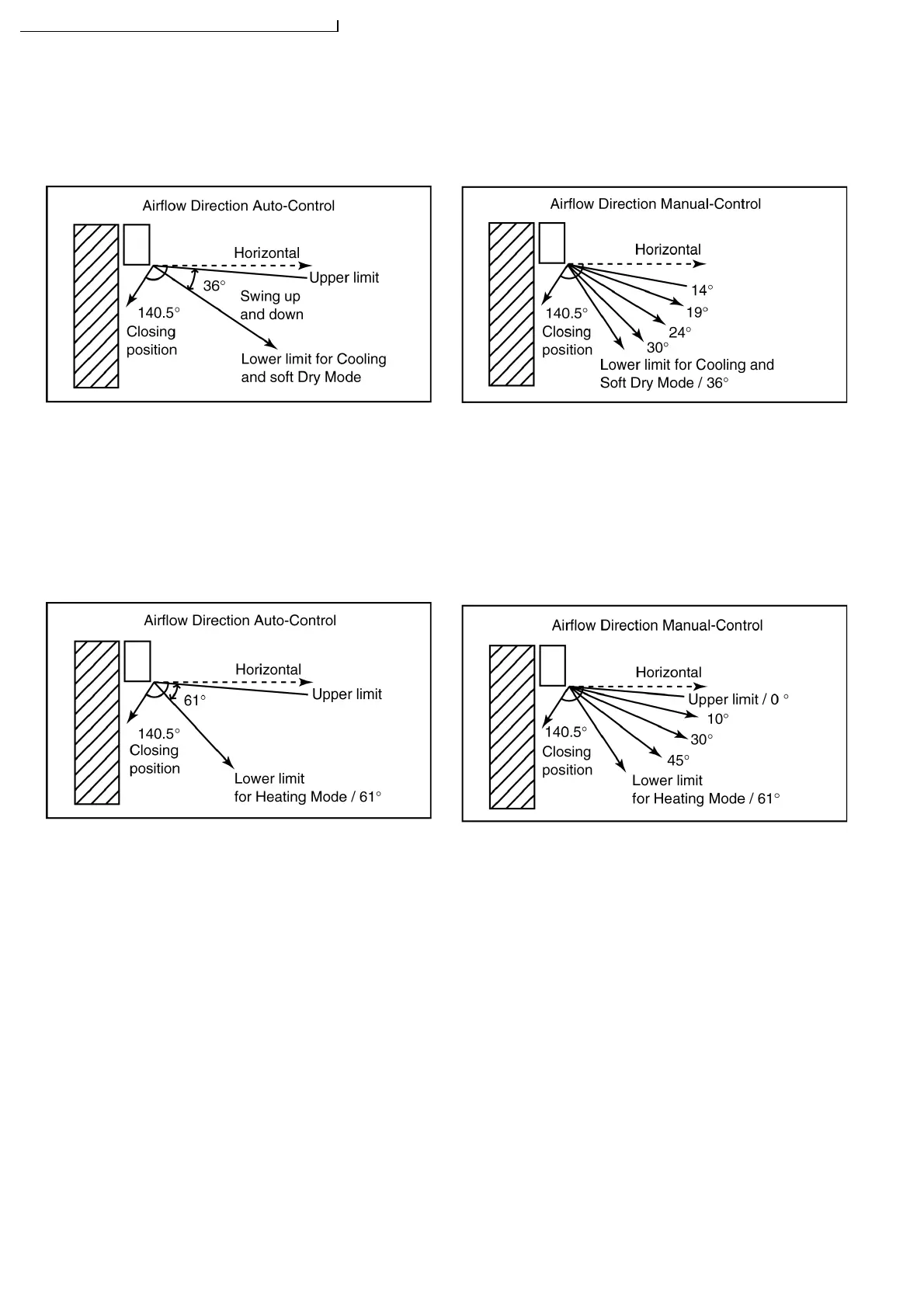

1.
Vertical Airflow Direction
Cooling and Soft Dry Mode
•
The louver swings up and down as shown above.
•
The louver does not swing when the Indoor Fan stops
during operation.
2.
Vertical Airflow Direction
Heating Mode
•
When the intake air temp. reaches 38°C, the louver is
changed from upper to lower limit. When the intake air
temp falls to 35°C, the louver is changed from lower to
upper limit.
•
The louver can be selected between 14° -36° (as
shown above) when pressing Manual Airflow Direction
Selection Button.
•
The louver can be selected between 0° -61° (as shown
above) when pressing Manual airflow Direction
Selection Button.
8.10. Airflow Direction Control
3.
Horizontal Airflow Direction
•
The left and right airflow direction louvers can be adjusted manually.
