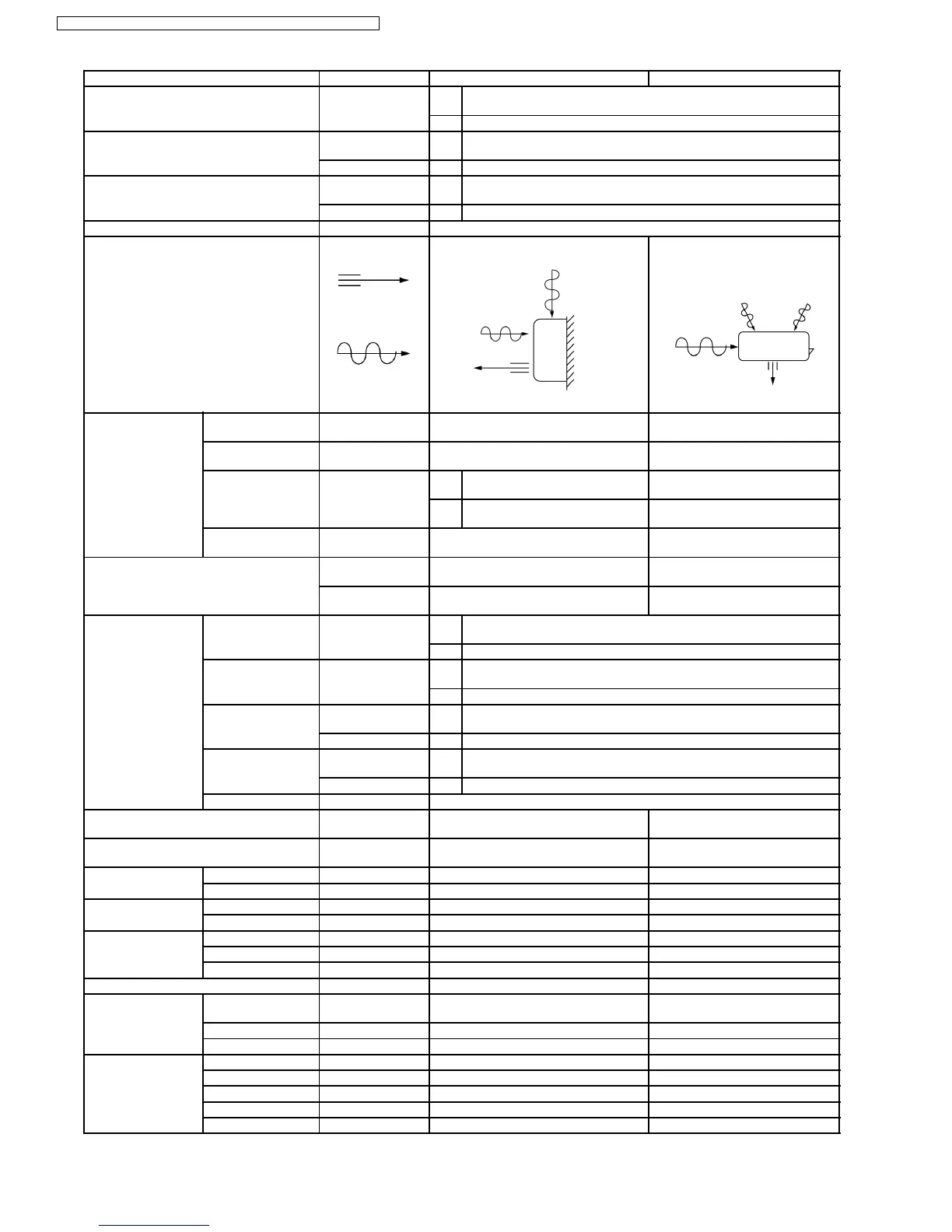

Panasonic CS-A9CKP Service Manual

Unit CS-A12CK CU-A12CK
Power Source Phase, Voltage,
Cycle
(1)
(3)
Single, 220 - 230, 50 Hz
(2) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1)
(3)
3.52 - 3.60 (3,030 - 3,100)
kW (BTU/h) (2) 3.52 - 3.57 (12,000 - 12,170)
Heating Capacity kW (kcal/h) (1)
(3)
3.90 - 4.07 (3,350 - 3,500)
kW (BTU/h) (2) 3.90 - 4.00 (13,300 - 13,640)
Moisture Removal l/h (Pint/h) 2.1 (4.4)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) Cooling; 7.3 (260) - 7.3 (260)
Heating; 7.8 (270) - 7.8 (270)
—
Indoor Air (Me) m
3
/min (cfm) Cooling; 9.1 (320) - 9.1 (320)
Heating; 9.1 (320) - 9.1 (320)
—
Indoor Air (Hi) m
3
/min (cfm) (1)
(3)
Cooling; 10.2 (360) - 10.2 (360)
Heating; 10.6 (370) - 10.6 (370)
Cooling; 32.5 (1,150) - 33.0 (1,160)
(2) Cooling; 10.2 (360) - 10.2 (360)
Heating; 10.6 (370) - 10.6 (370)
Cooling; 32.5 (1,150) - 33.5 (1,180)
Indoor Air (SHi) m
3
/min (cfm) Cooling; 10.6 (370) - 10.6 (370)
Heating; 10.6 (370) - 10.6 (370)
—
Noise Level dB (A) Cooling; High 39-39, Low 29-29
Heating; High 40-40, Low 29-29
Cooling; High 48 - 49
Heating; High 48 - 49
Power level (dB) Cooling; High 52 - 52
Heating; High 52 - 52
Cooling; High 62 - 63
Heating; High 64 - 65
Electrical Data Input Power kW (1)
(3)
Cooling; 1.08 - 1.12
Heating; 1.07 - 1.10
(2) Cooling; 1.12 - 1.17, Heating; 1.07 - 1.11
Running Current A (1)
(3)
Cooling; 5.1 - 5.0
Heating; 5.0 - 4.8
(2) Cooling; 5.1 - 4.9, Heating; 5.0 - 4.8
EER W/W (kcal/hW) (1)
(3)
Cooling; 3.26 - 3.21 (2.80 - 2.77)
W/W (BTU/hW) (2) Cooling; 3.14 - 3.05 (10.7 - 10.4)
COP W/W (kcal//hW) (1)
(3)
Heating; 3.64 - 3.70 (3.13 - 3.18)
W/W (BTU/hW) (2) Heating; 3.64 - 3.60 (12.4 - 12.3)
Starting Current A 16.9
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.0 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 82 (37.0)
Compressor Type — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output W — 930
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W 44.8 - 53.5 65 - 73
Rate Output W 15 33
10
CS-A7CKP CU-A7CKP5 / CS-A9CKP CU-A9CKP5 / CS-A12CKP CU-A12CKP5
