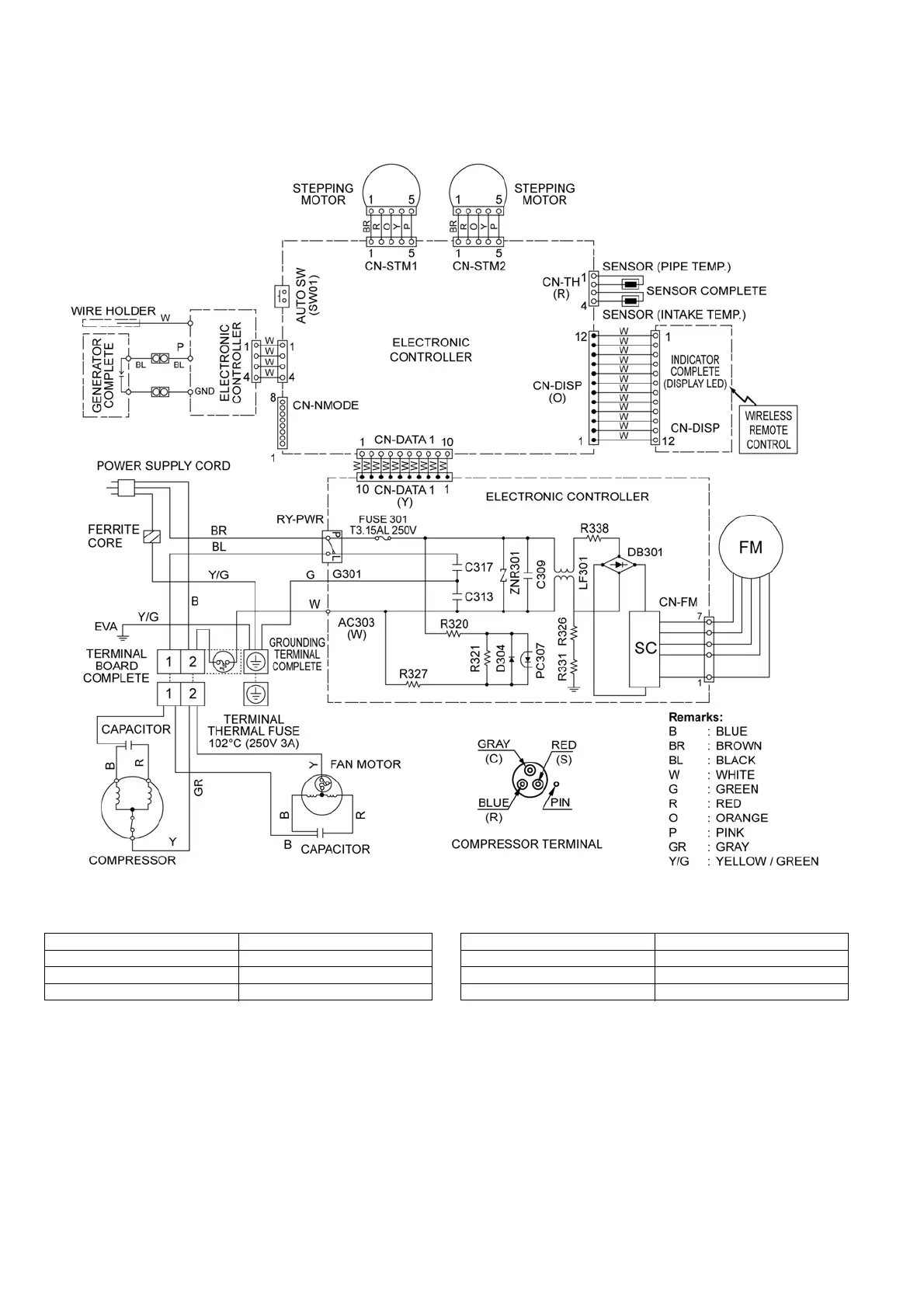

8 Wiring Connection Diagram
8.1. CS-C18GK CU-C18GK
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C18GK
CONNECTION CWA951264J
BLUE-GRAY 217 Ω
GRAY-RED 217 Ω
MODEL CU-C18GK
CONNECTION 2KS314D5AA02
C - R 1.487 Ω
C - S 3.530 Ω
