16

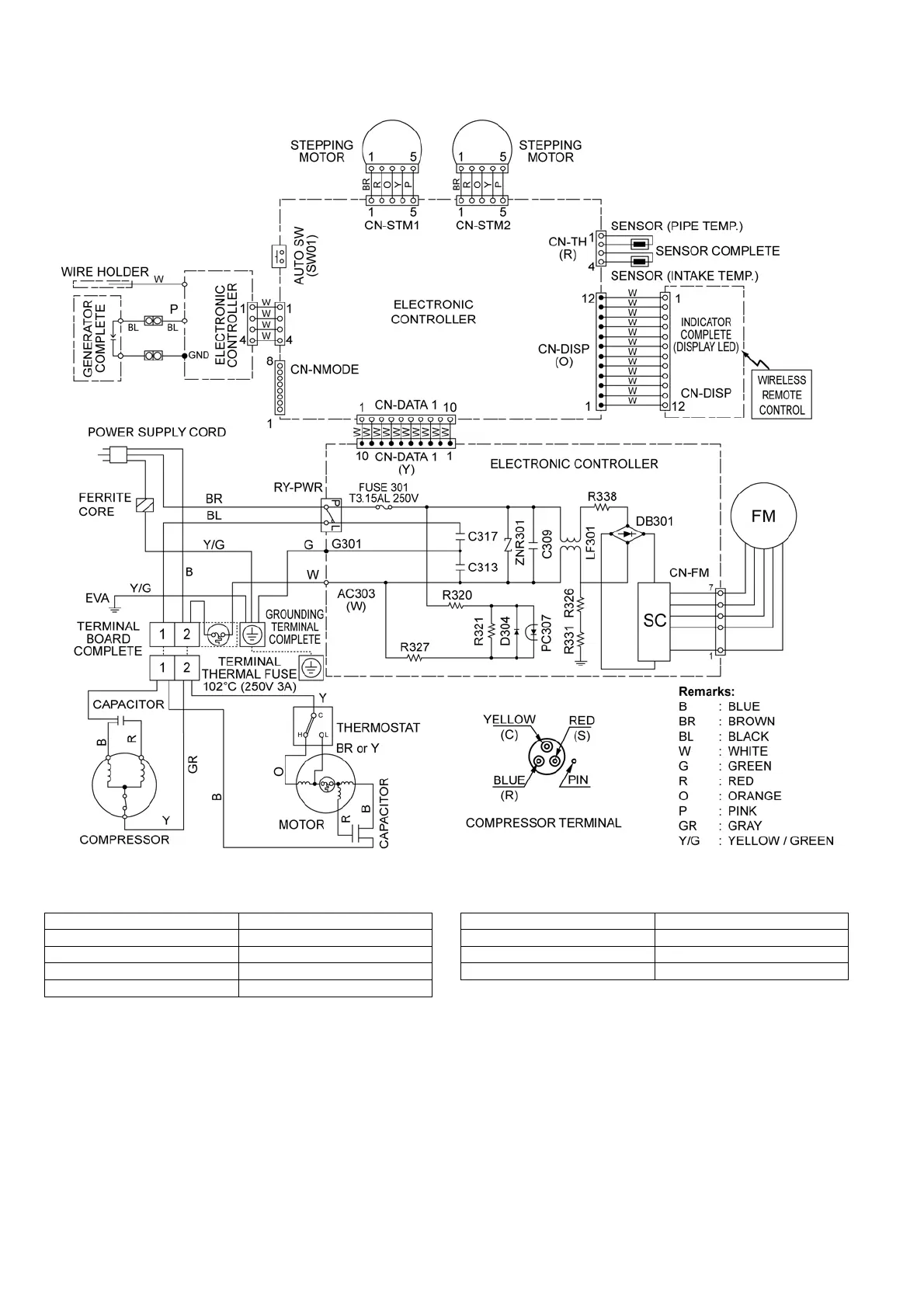

8.2. CS-C24GK CU-C24GK
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C24GK
CONNECTION CWA951354J
BLUE-YELLOW 58.0 Ω
YELLOW-RED 62.1 Ω
YELLOW-ORANGE 144.6 Ω
MODEL CU-C24GK
CONNECTION 2JS386D3AB02
C - R 1.135 Ω
C - S 1.871 Ω
