Panasonic CS-C18HKF - Wiring Connection Diagram; 8.1. CS-C18 HK CU-C18 HK

15

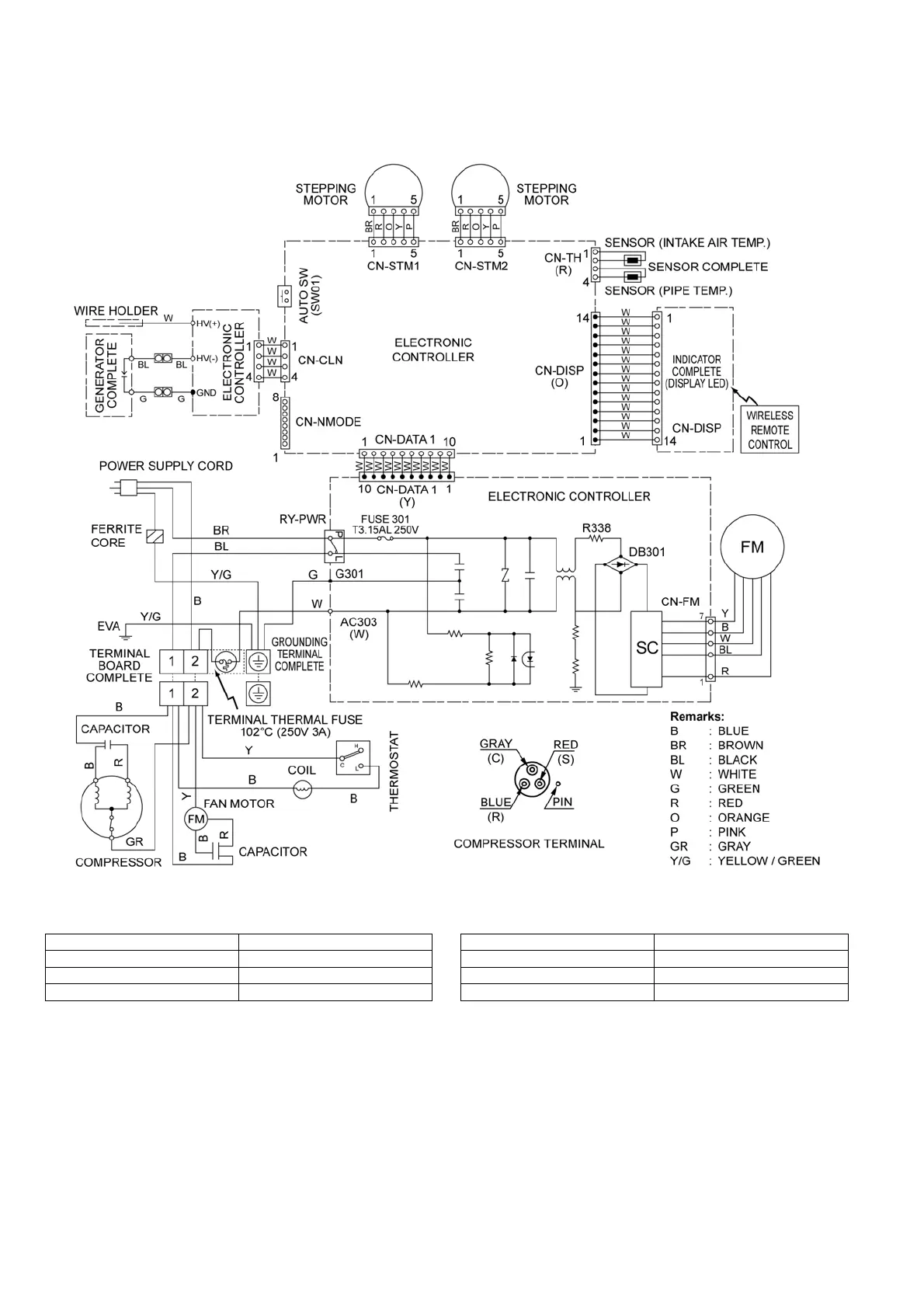

8 Wiring Connection Diagram
8.1. CS-C18HK CU-C18HK
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 20qC of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20qC of ambient temperature.
MODEL CU-C18HK
CONNECTION CWA951116J
BLUE-YELLOW 230 :
YELLOW-RED 255 :
MODEL CU-C18HK
CONNECTION 2KS324D5FA04
C - R 1.397 :
C - S 2.504 :
