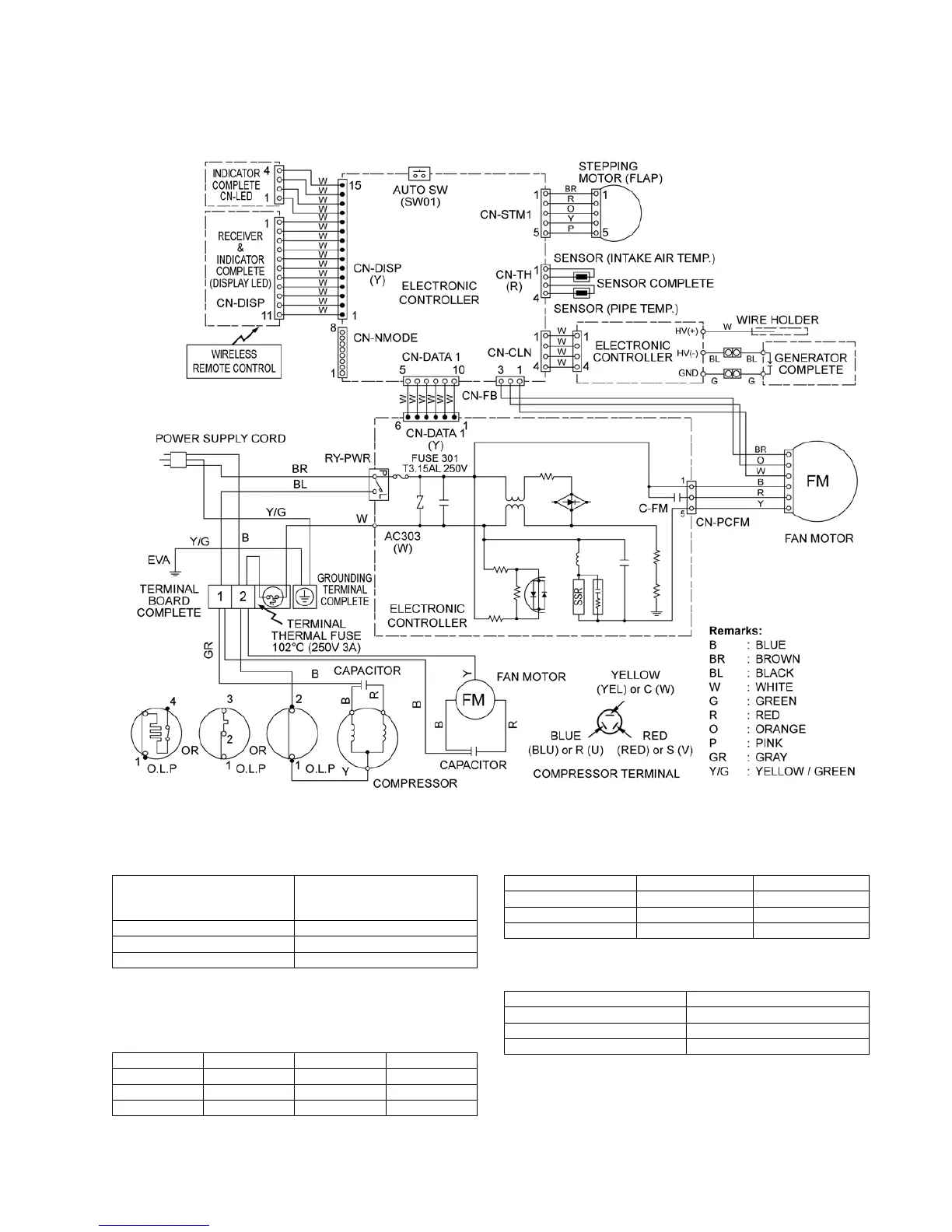

8 Wiring Connection Diagram

8.1. CS-C7HK CU-C7HK / CS-C9HK CU-C9HK / CS-C12HK CU-C12HK

Resistance of Indoor Fan Motor Windings

Note: Resistance at 25°C of ambient temperature.

Resistance of Outdoor Fan Motor Windings

Note: Resistance at 25°C of ambient temperature.

Resistance of Compressor Windings

Note: Resistance at 20°C of ambient temperature.

MODEL CS-C7HK

CS-C9HK

CS-C12HK

CONNECTION A921324

BLUE-YELLOW 371.0 Ω

YELLOW-RED 386.6 Ω

MODEL CU-C7HK CU-C9HK CU-C12HK

CONNECTION CWA951378J CWA951534 CWA951534

BLUE-YELLOW 287 Ω 367 Ω 367 Ω

YELLOW-RED 238 Ω 270 Ω 270 Ω

MODEL CU-C7HK CU-C9HK

CONNECTION 2RS122D5BG02 2PS156D3DA02

C - R 5.193 Ω 4.228 Ω

C - S 5.557 Ω 3.841 Ω

MODEL CU-C12HK

CONNECTION 2PS206D3CB02

C - R 2.737 Ω

C - S 4.378 Ω
