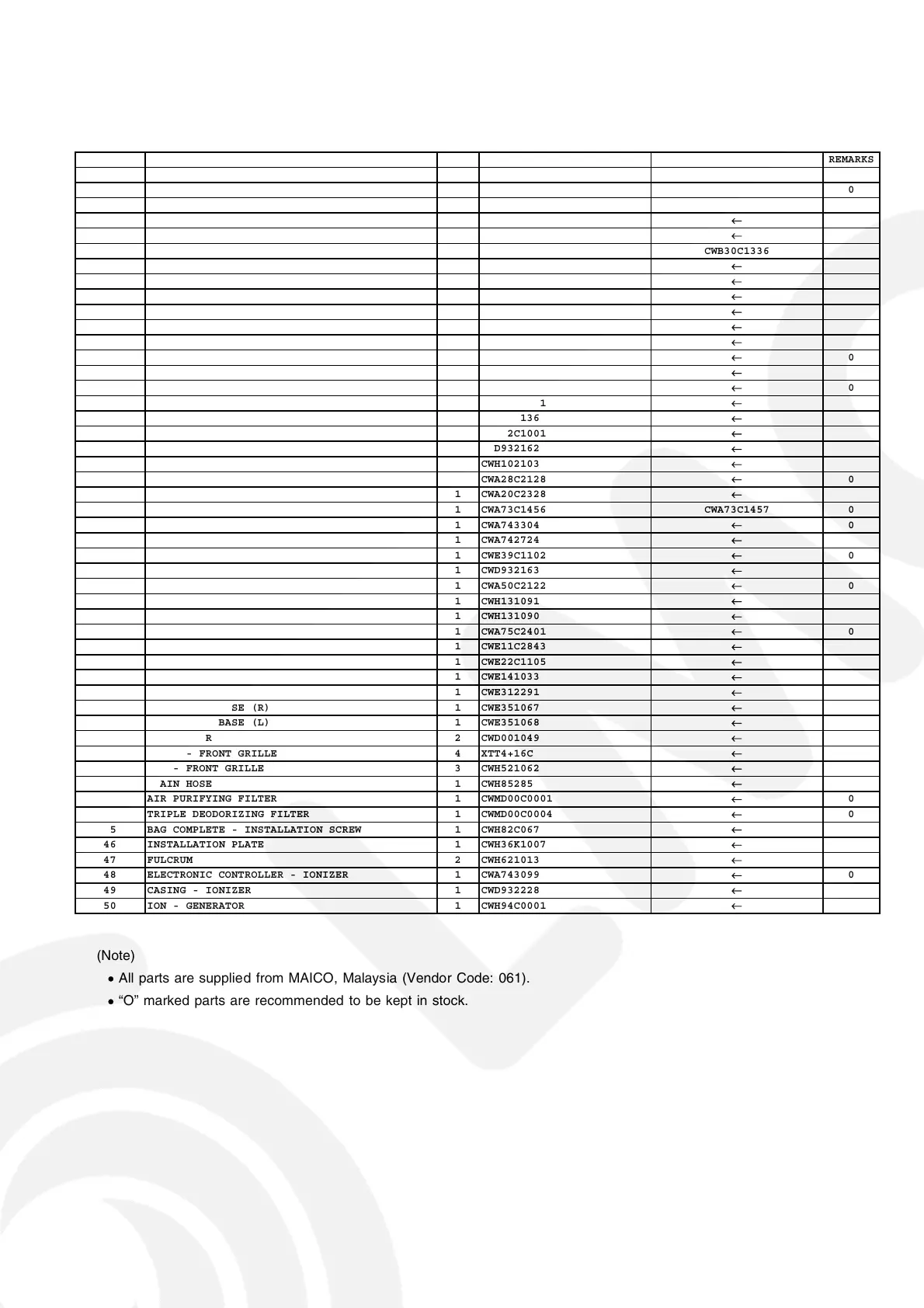

15 Replacement Parts List
<Model: CS-E18CKE & CS-E21CKE>
REF. NO. PART NAME & DESCRIPTION QTY. CS-E18CKE CS-E21CKE REMARKS
1 CHASSY COMPLETE 1 CWD50C1293
←
2 FAN MOTOR 1 CWA981056
←
0
3 CROSS FLOW FAN COMPLETE 1 CWH02C1010
←
4 SCREW - CROSS FLOW FAN 1 CWH4580304
←
5 BEARING ASS’Y 1 CWH64K007
←
6 EVAPORATOR 1 CWB30C1387 CWB30C1336
7 FLARE NUT 1 CWT25086 (7/16”)
←
8 FLARE NUT 1 CWT25096 (3/4”)
←
9 INTAKE AIR SENSOR HOLDER 1 CWH32142
←
10 DISCHARGE GRILLE COMPLETE 1 CWE20C2240
←
11 VERTICAL VANE 15 CWE241088
←
12 CONNECTING BAR 2 CWE261025
←
13 AIR SWING MOTOR 1 CWA98260
←
0
14 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3849
←
15 AIR SWING MOTOR 1 CWA981041
←
0
16 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3731
←
17 HORIZONTAL VANE 1 CWE241136
←
18 CAP - DRAIN TRAY 1 CWH52C1001
←
19 PARTICULAR PIECE 1 CWD932162
←
20 CONTROL BOARD 1 CWH102103
←
21 TERMINAL BOARD COMPLETE 1 CWA28C2128
←
0
22 POWER SUPPLY CORD 1 CWA20C2328
←
23 ELECTRONIC CONTROLLER - MAIN 1 CWA73C1456 CWA73C1457 0
24 ELECTRONIC CONTROLLER - POWER 1 CWA743304
←
0
25 P.C.B. RECEIVER 1 CWA742724
←
26 ELECTRONIC CONTROLLER - INDICATOR 1 CWE39C1102
←
0
28 INDICATOR HOLDER 1 CWD932163
←
29 SENSOR COMPLETE 1 CWA50C2122
←
0
30 CONTROL BOARD TOP COVER 1 CWH131091
←
31 CONTROL BOARD FRONT COVER 1 CWH131090
←
32 REMOTE CONTROL COMPLETE 1 CWA75C2401
←
0
33 FRONT GRILLE COMPLETE 1 CWE11C2843
←
34 INTAKE GRILLE 1 CWE22C1105
←
35 GRILLE DOOR 1 CWE141033
←
36 CONTROL PANEL 1 CWE312291
←
37 DECORATION BASE (R) 1 CWE351067
←
38 DECORATION BASE (L) 1 CWE351068
←
39 AIR FILTER 2 CWD001049
←
40 SCREW - FRONT GRILLE 4 XTT4+16C
←
41 CAP - FRONT GRILLE 3 CWH521062
←
42 DRAIN HOSE 1 CWH85285
←
43 AIR PURIFYING FILTER 1 CWMD00C0001
←
0
44 TRIPLE DEODORIZING FILTER 1 CWMD00C0004
←
0
45 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067
←
46 INSTALLATION PLATE 1 CWH36K1007
←
47 FULCRUM 2 CWH621013
←
48 ELECTRONIC CONTROLLER - IONIZER 1 CWA743099
←
0
49 CASING - IONIZER 1 CWD932228
←
50 ION - GENERATOR 1 CWH94C0001
←
(Note)
•
All parts are supplied from MAICO, Malaysia (Vendor Code: 061).
•
“O” marked parts are recommended to be kept in stock.
85
