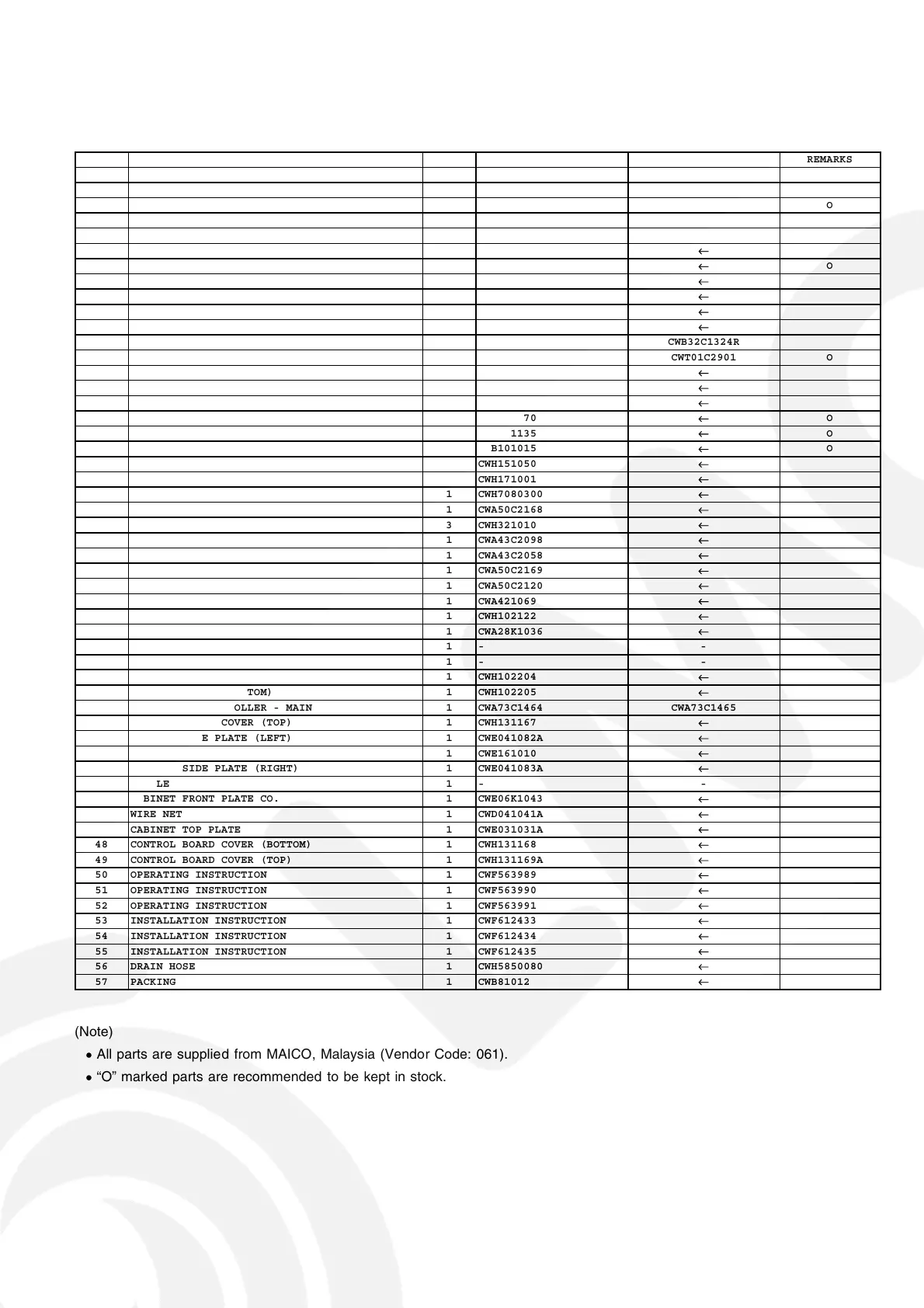

17 Replacement Parts List
<Model: CU-E18CKR & CU-E21CKR>
REF NO. DESCRIPTION & NAME QTY. CU-E18CKR CU-E21CKR REMARKS
1 CHASSY ASSY 1 CWD50K2085
←
2 ANTI-VIBRATION BUSHING 3 CWH50077
←
3 COMPRESSOR 1 5CS130XAC03
←
O
4 NUT-COMPRESSOR MOUNT 3 CWH56000
←
5 SOUND PROOF MATERIAL 1 CWG302111
←
6 FAN MOTOR BRACKET 1 CWD541054
←
7 FAN MOTOR 1 CWA981110
←
O
8 SCREW - FAN MOTOR BRACKET 2 CWH551060
←
9 SCREW - FAN MOTOR MOUNT 3 CWH551109
←
10 PROPELLER FAN ASSY 1 CWH03K1016
←
11 NUT - PROPELLER FAN 1 CWH56053
←
12 CONDENSER 1 CWB32C1317R CWB32C1324R
14 TUBE ASS’Y COMPLETE (VALVE/RECEIVER) 1 CWT01C2900 CWT01C2901 O
15 4 WAYS VALVE 1 CWB001027
←
16 STRAINER 1 CWB11094
←
18 HOLDER - COUPLING 1 CWH351035
←
19 3 WAYS VALVE (GAS) 1 CWB011170
←
O
20 2 WAYS VALVE (LIQUID) 1 CWB021135
←
O
21 DRYER 1 CWB101015
←
O
22 SOUND PROOF BOARD 1 CWH151050
←
23 TERMINAL COVER 1 CWH171001
←
24 NUT-TERMINAL COVER 1 CWH7080300
←
25 SENSOR COMPLETE (COMP. TOP) 1 CWA50C2168
←
26 HOLDER SENSOR 3 CWH321010
←
27 V-COIL COMPLETE (4-WAYS VALVE) 1 CWA43C2098
←
28 V-COIL COMPLETE (EXPAND VALVE) 1 CWA43C2058
←
29 SENSOR COMPLETE (COMP. DISC.) 1 CWA50C2169
←
30 SENSOR COMPLETE 1 CWA50C2120
←
31 REACTOR 1 CWA421069
←
32 CONTROL BOARD (SIDE) 1 CWH102122
←
33 TERMINAL BOARD ASSY 1 CWA28K1036
←
34 FUSE HOLDERS 1 - -
35 FUSE 1 - -
36 CONTROL BOARD (TOP) 1 CWH102204
←
37 CONTROL BOARD (BOTTOM) 1 CWH102205
←
38 ELECTRONIC CONTROLLER - MAIN 1 CWA73C1464 CWA73C1465
40 CONTROL BOARD COVER (TOP) 1 CWH131167
←
41 CABINET SIDE PLATE (LEFT) 1 CWE041082A
←
42 HANDLE 1 CWE161010
←
43 CABINET SIDE PLATE (RIGHT) 1 CWE041083A
←
44 HANDLE 1 - -
45 CABINET FRONT PLATE CO. 1 CWE06K1043
←
46 WIRE NET 1 CWD041041A
←
47 CABINET TOP PLATE 1 CWE031031A
←
48 CONTROL BOARD COVER (BOTTOM) 1 CWH131168
←
49 CONTROL BOARD COVER (TOP) 1 CWH131169A
←
50 OPERATING INSTRUCTION 1 CWF563989
←
51 OPERATING INSTRUCTION 1 CWF563990
←
52 OPERATING INSTRUCTION 1 CWF563991
←
53 INSTALLATION INSTRUCTION 1 CWF612433
←
54 INSTALLATION INSTRUCTION 1 CWF612434
←
55 INSTALLATION INSTRUCTION 1 CWF612435
←
56 DRAIN HOSE 1 CWH5850080
←
57 PACKING 1 CWB81012
←
(Note)
•
All parts are supplied from MAICO, Malaysia (Vendor Code: 061).
•
“O” marked parts are recommended to be kept in stock.
