180
19.1.2 CS-E18NKEW CS-E21NKEW CS-XE18NKEW CS-XE21NKEW
Note

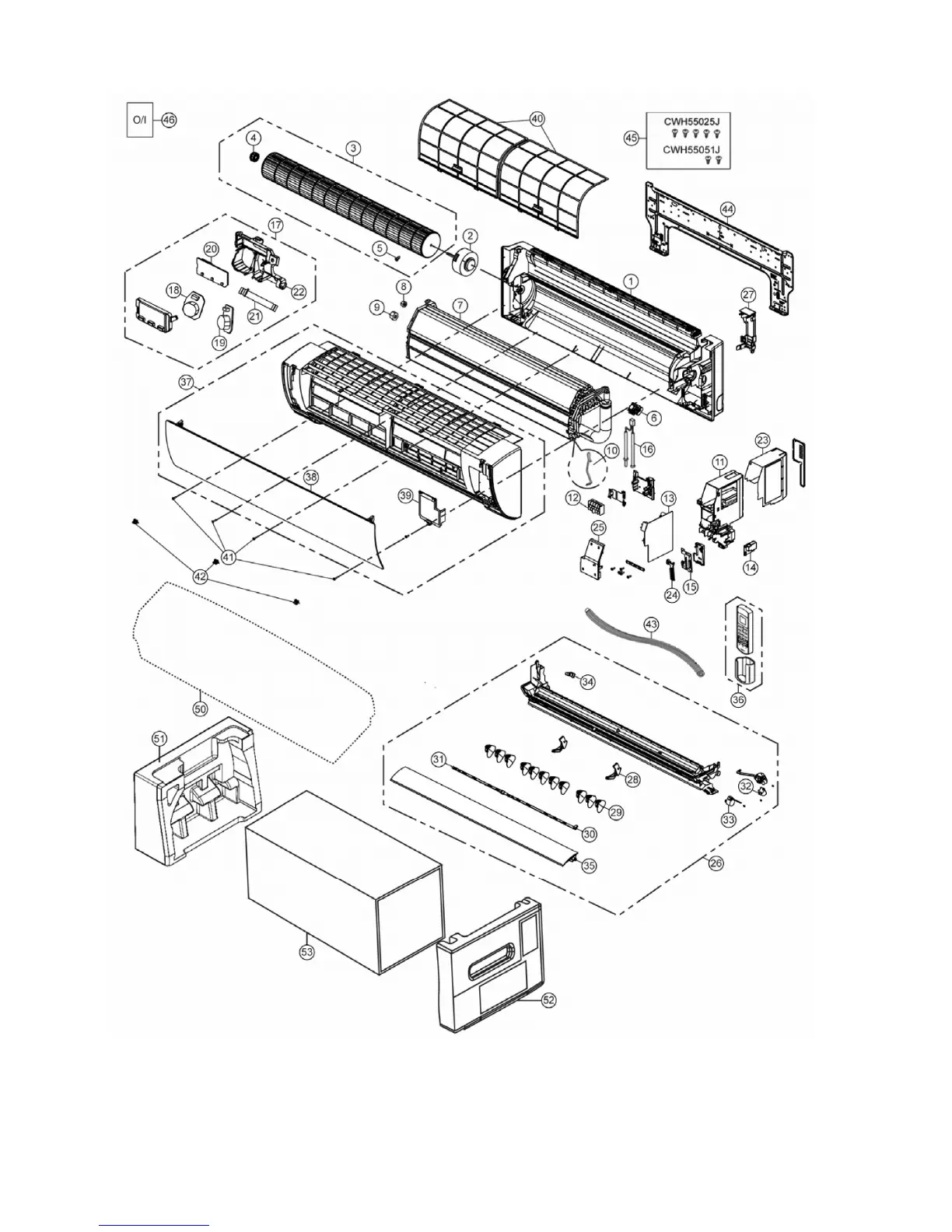

The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
