Panasonic CS-E7NKEW User Manual

63

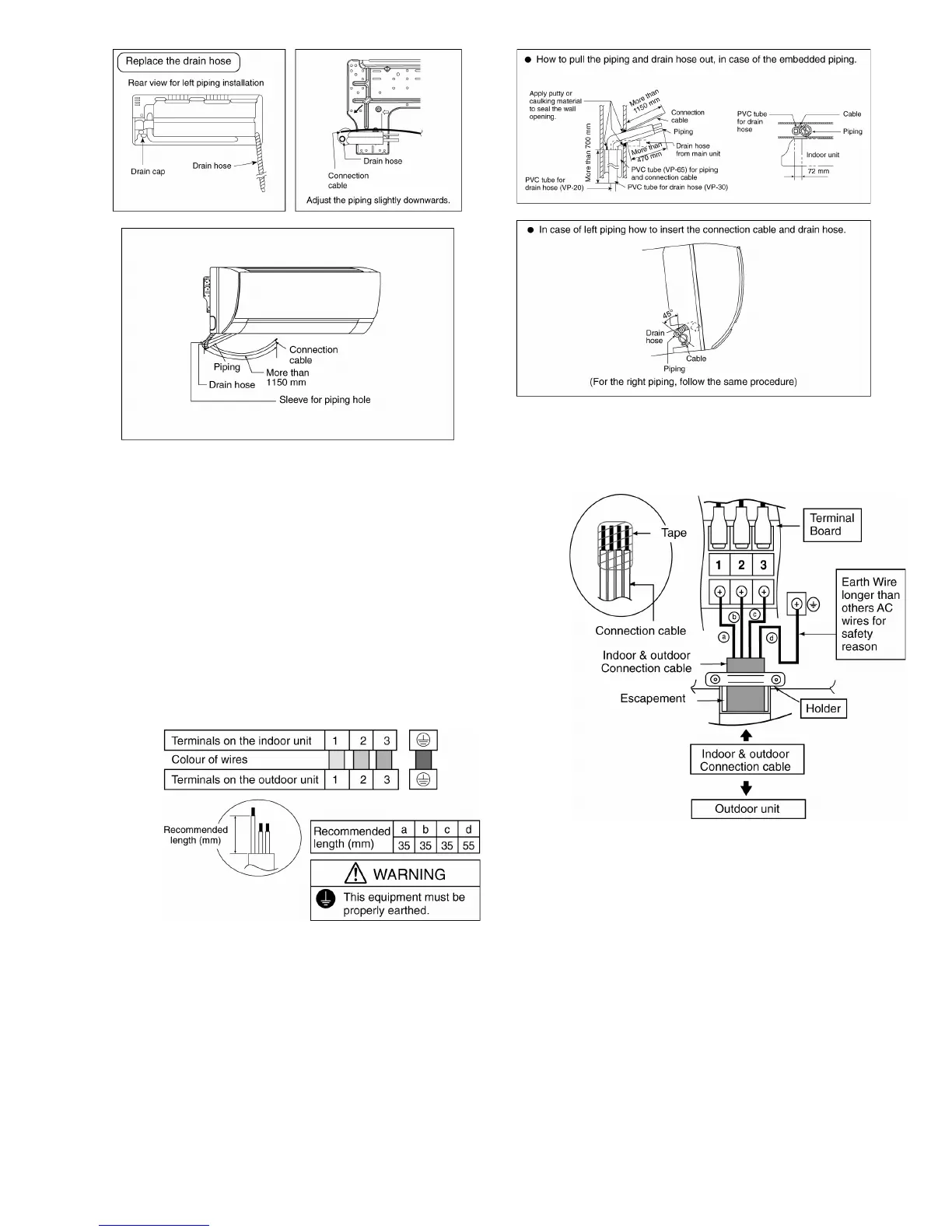

11.2.4 Connect the Cable to the Indoor Unit
1 The inside and outside connecting cable can
be connected without removing the front grille.
2 Connection cable between indoor unit and
outdoor unit shall be approved
polychloroprene sheathed 4 x 1.5 mm
2
flexible
cord, type designation 245 IEC 57 or heavier
cord.
3 Bind all the indoor and outdoor connection
cable with tape and route the connection
cable via the escapement.
4 Remove the tapes and connect the
connection cable between indoor unit and
outdoor unit according to the diagram below.
Note:
o Secure the connection cable onto the control board with the holder.
o Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
o Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

Panasonic CS-E7NKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	870 x 214 x 290 mm
Timer	Yes
Built-in display	No
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	2050 W
Heating capacity in watts (max)	2800 W
Cooling energy efficiency (EER, W/W)	4.36
Heating energy efficiency (COP, W/W)	4.41
Outdoor units quantity	0
Noise level (low speed)	20 dB
Noise level (high speed)	37 dB
Noise level (medium speed)	24 dB
Power requirements	AC 230 V
