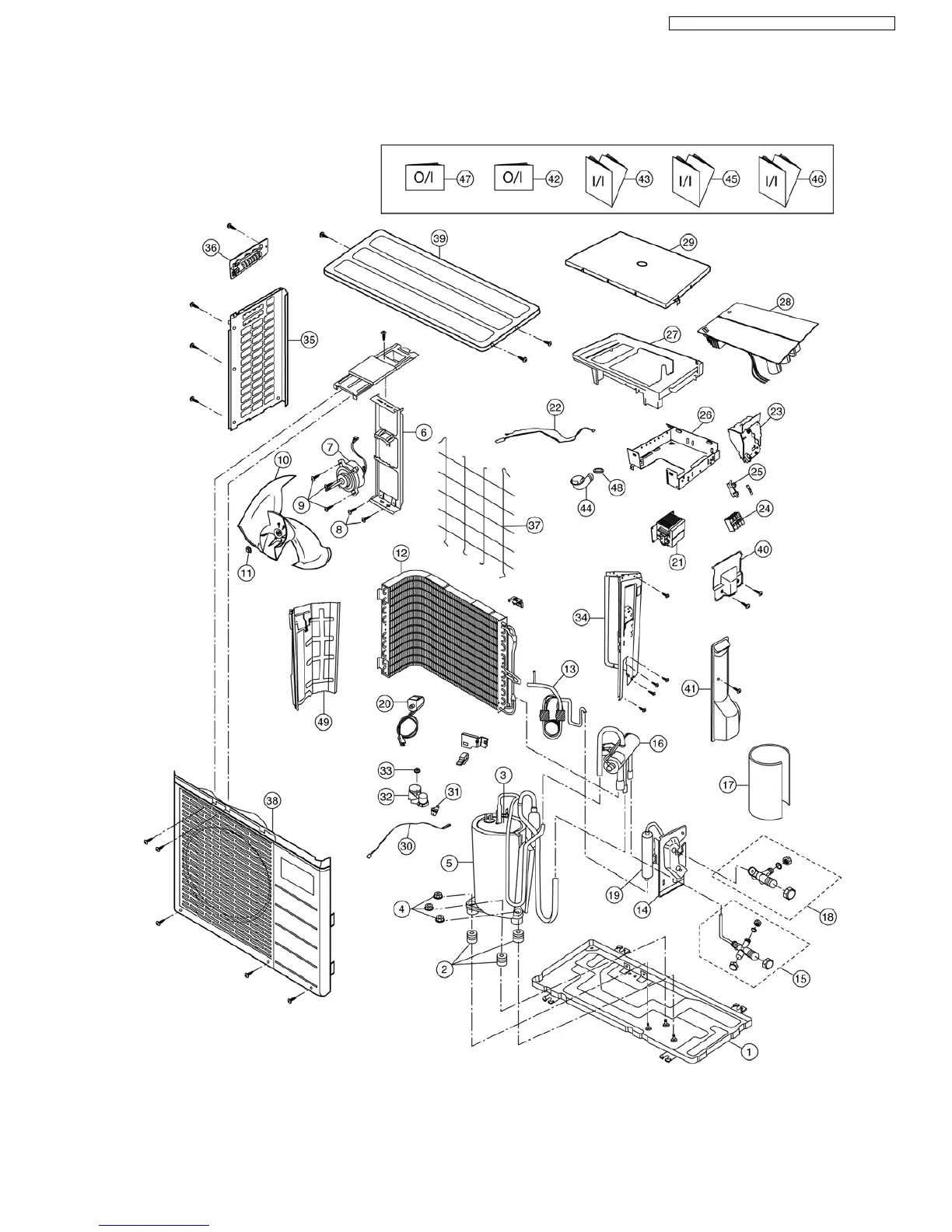

16 Exploded View (Outdoor Unit)
16.1. CU-E9DKE CU-E12DKE
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
85
CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE
