Panasonic CS-E9EKK Service Manual

4
2 Specifications

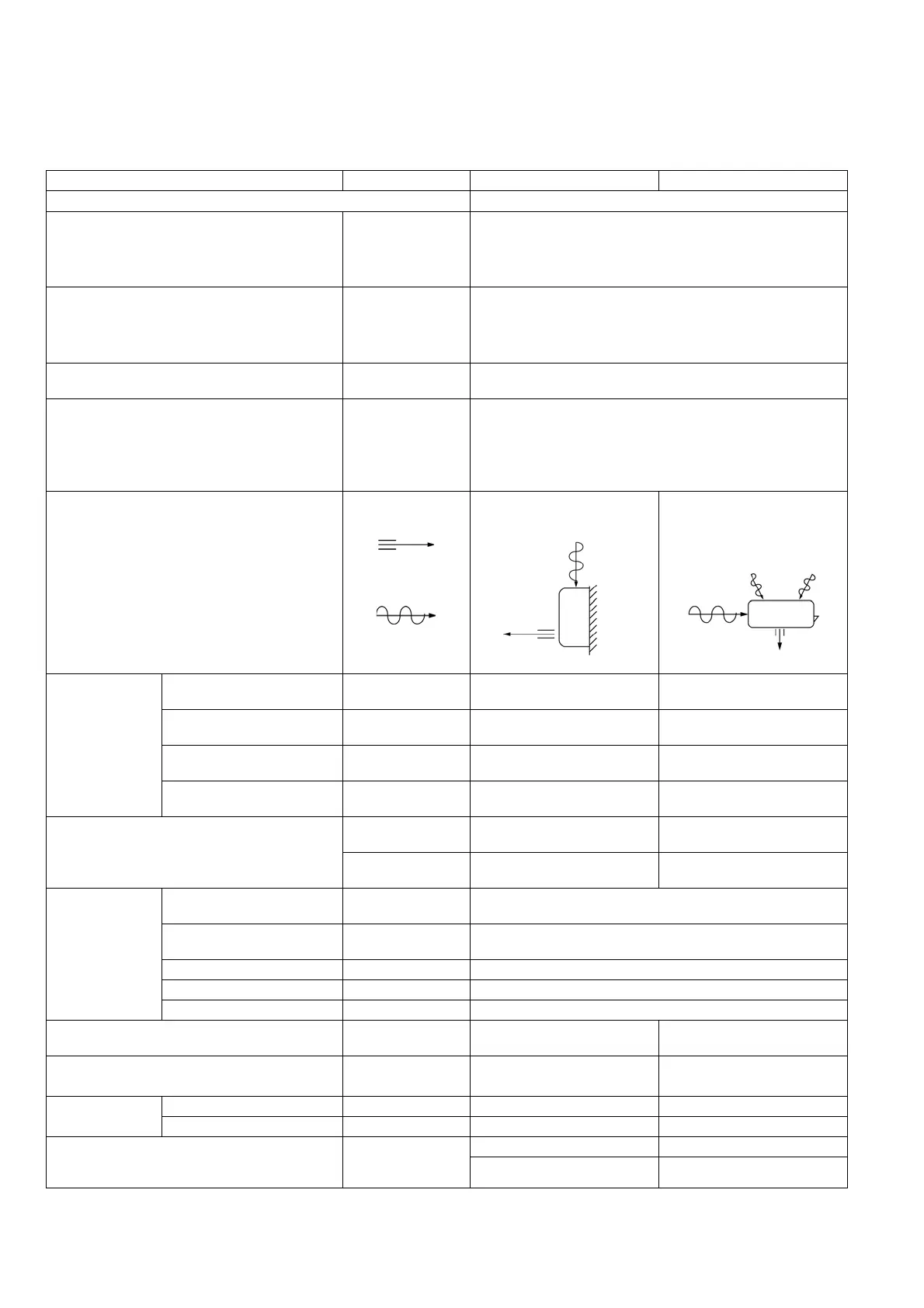

2.1. CS-E9EKK CU-E9EKK
Unit CS-E9EKK CU-E9EKK
Performance Test Condition CSA
Cooling Capacity kW
(BTU/h)
2.60 (1.20 - 3.00)
8,900 (4,100 - 10,200)
Heating Capacity kW
(BTU/h)
3.65 (1.20 - 4.85)
12,500 (4,100 - 16,500)
Moisture Removal l/h
Pint/h
0.9
1.9
Power Source (Phase, Voltage, Cycle) ø
V
Hz
Single
208 - 230
60
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo
m
3
/min (cfm)
Cooling; 6.2 (220)
Heating; 6.6 (230)
—
Me
m
3
/min (cfm)
Cooling; 7.9 (280)
Heating; 8.6 (300)
—
Hi
m
3
/min (cfm)
Cooling; 7.8 (280)
Heating; 8.8 (310)
Cooling; 31.0 (1,090)
SHi
m
3
/min (cfm)
Cooling; 9.9 (350)
Heating; 10.8 (380)
—
Noise Level
dB (A) Cooling; High 40, Low 28
Heating; High 42, Low 29
Cooling; 45 - 47
Heating; 46 - 48
Power level dB Cooling; High 51 - 51
Heating; High 53 - 53
Cooling; High 58 - 60
Heating; High 59 - 61
Electrical Data Input W Cooling; 650 (250 - 800)
Heating; 1,000 (250 - 1,300)
Running Current A Cooling; 3.5 - 3.0
Heating; 5.3 - 4.6
EER W/W (BTU/hW) Cooling; 4.0 (13.69)
COP W/W (BTU/hW) Heating; 3.65 (12.50)
Starting Current A 5.3
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch G ; (gas side) 3/8” G ; (gas side) 3/8”
inch L ; (liquid side) 1/4” L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 16 —
Length mm 0.65 —
Power Cord Length
Number of core-
wire
m— —
——

Panasonic CS-E9EKK Specifications

General

Brand	Panasonic
Model	CS-E9EKK
Category	Air Conditioner
Language	English
