Panasonic CS-PS18NKV - CS-PS12 NKV CU-PS12 NKV Piping Length Characteristics

92

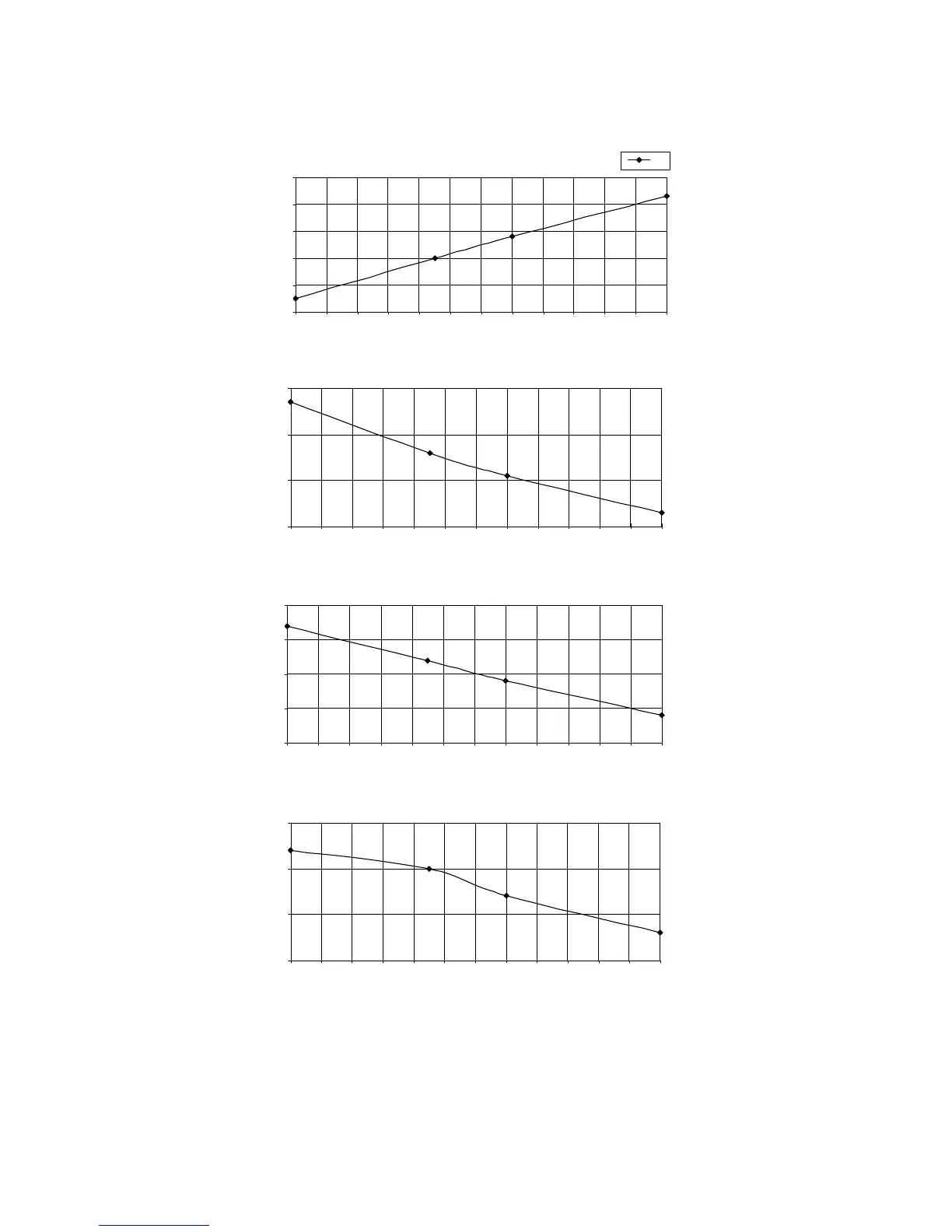

• Piping Length Characteristic
o Room temperature: 27°C (DBT), 19°C (WBT)
o Operation condition: High fan speed
o Outdoor temperature: 35°C (DBT), 24°C (WBT)
o Compressor Frequency = Fc
2.900
3.000
3.100
3.200
3456789101112131415
Piping Length (m)
Cooling
Capacity (kW)
3.900
3.950
4.000
4.050
3 4 5 6 7 8 9 101112131415
Piping Length (m)
Current
(A)
1.080
1.085
1.090
1.095
1.100
3456789101112131415
Piping Length (m)
Gas Side Piping Pressure (MPa
)
15.400
15.500
15.600
15.700
15.800
15.900
3 4 5 6 7 8 9 101112131415
Piping Length (m)
Outlet Air
Temperature (°C
)
