Panasonic CS-PW18GKE

42

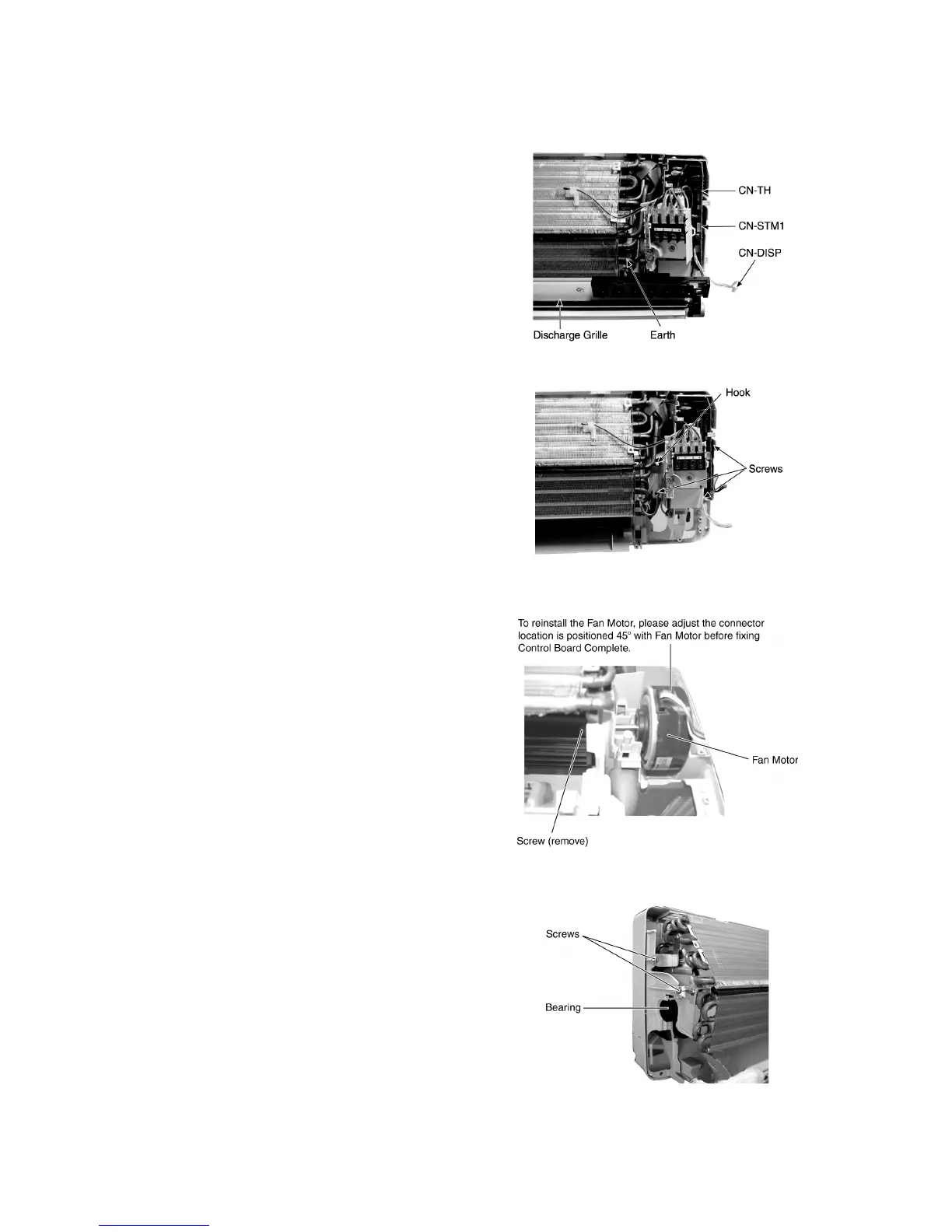

15.2. Cross Flow Fan and Indoor Fan Motor Removal Procedures
1. In order to remove the Cross Flow Fan and Indoor Fan
Motor, Control Board need to be taken out by releasing all
the connectors as indicated below.
a. Release the Earth Wire screw. (Fig. 5)
b. Release the CN-TH connector. (Fig. 5)
c. Release the CN-STM1 connector. (Fig. 5)
d. Release the CN-DISP connector. (Fig. 5)
e. Pull out the Drain Hose from outlet to remove the
Discharge Grille. (Fig. 5)
2. Release the 3 screws. (Fig. 6)
3. By pressing down the hook at the left, you will be able to
remove the Control Board. (Fig. 6)
Fig. 5
Fig. 6
4. Remove the screw at the Cross Flow Fan. (Fig. 7)
5. Remove the Bearing. (Fig. 8)
6. Remove the screws at the left of the Evaporator. (Fig. 8)
Fig. 7
Fig. 8
