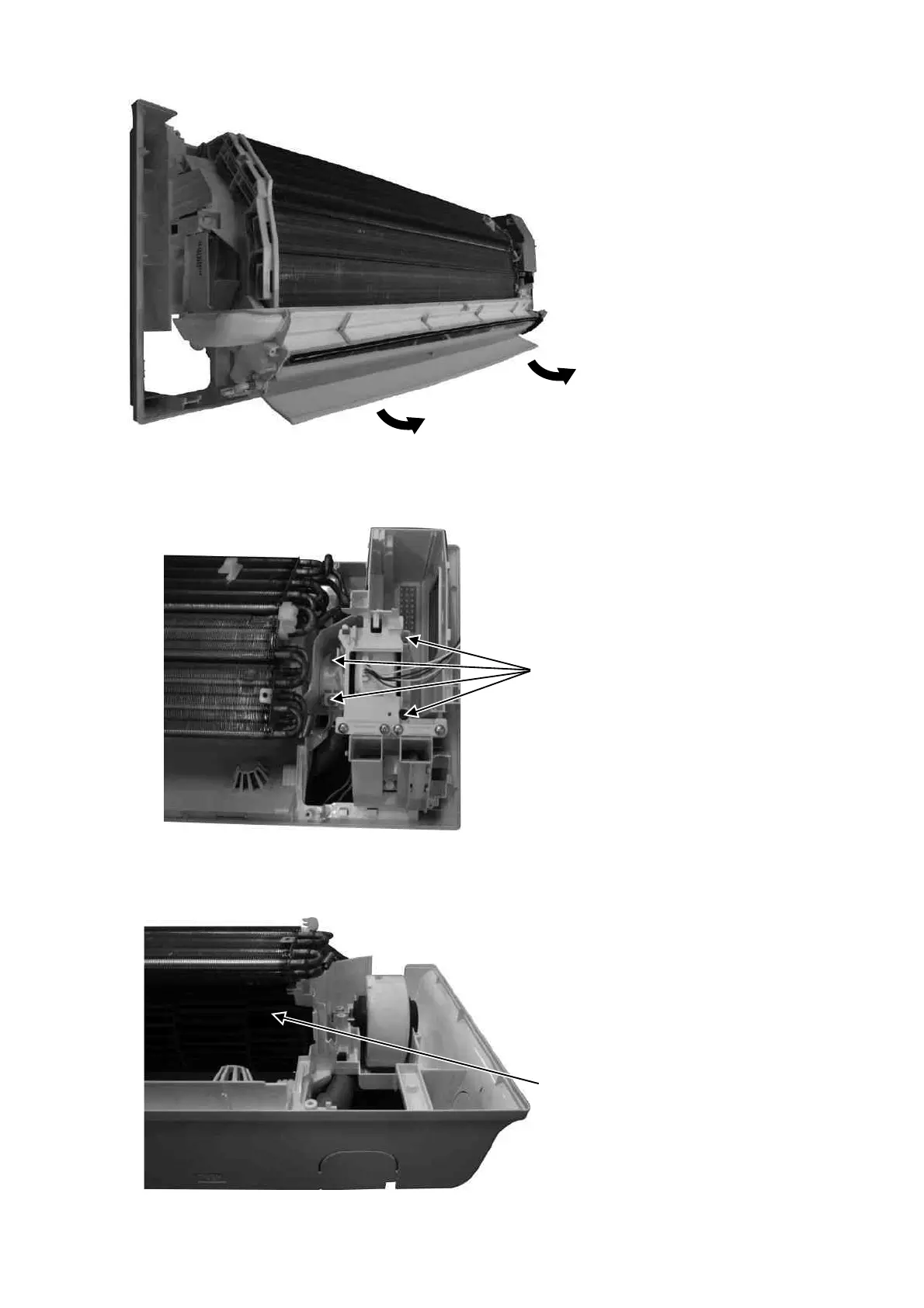

16.1.1.3 To Remove Discharge Grille
Figure 5
16.1.1.4 To Remove Control Board
Figure 6
16.1.1.5 To Remove Cross Flow Fan and Indoor Fan Motor
Figure 7
11. Then pull the discharge grille
downward gently to dismantle it.
10. Pull out and remove the drain hos
from the discharge grille.
12. Remove the 4 screws holding
the control board, then pull out
the control board.
13. Remove the screw that holding
the cross flow fan and fan moto
axis.
