Panasonic CS-S12TKV Service Manual

140

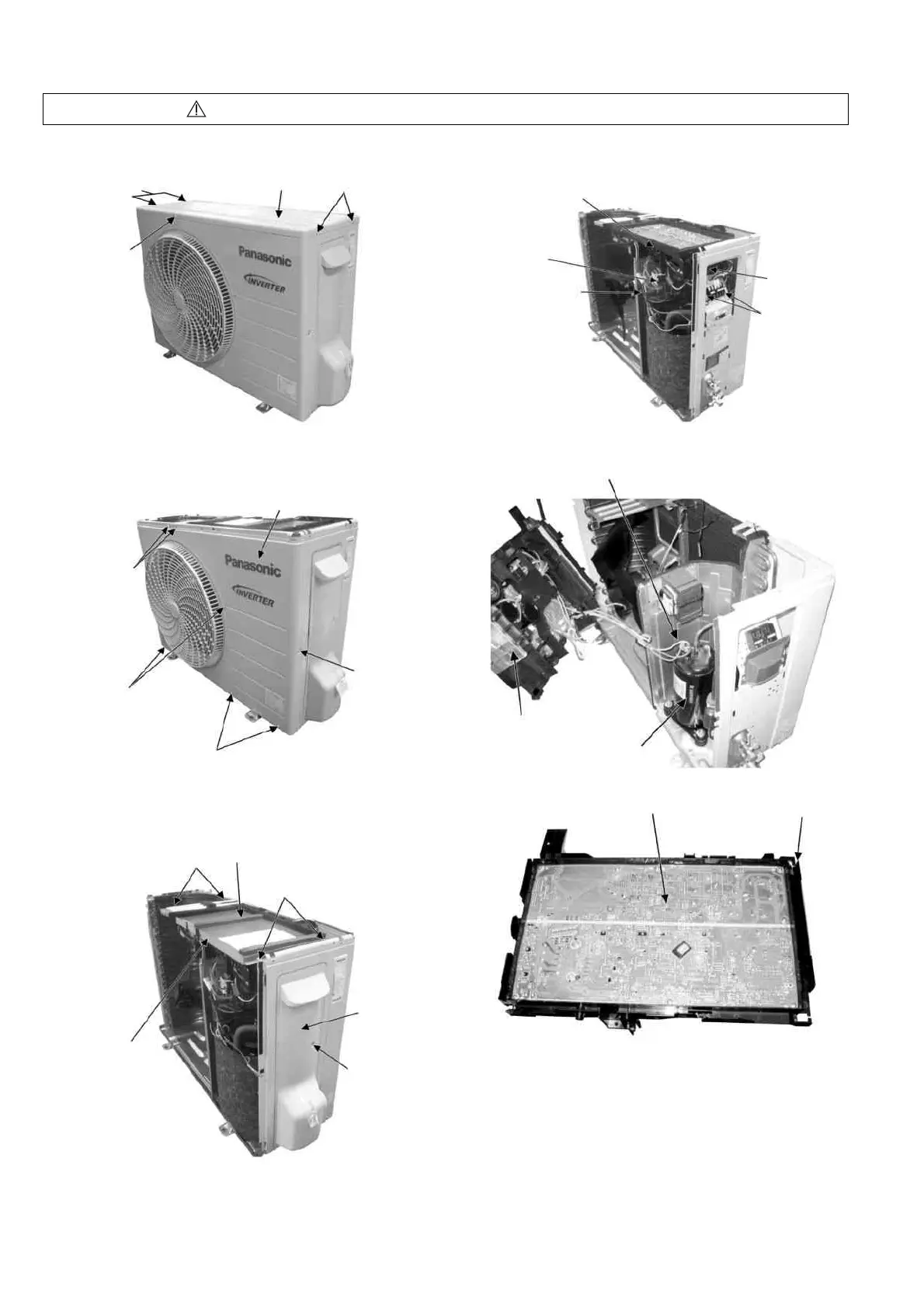

16.3.3 CU-S18TKV
Caution! When handling electronic controller, be careful of electrostatic discharge.
1. Remove the 5 screws of the Top Panel.
Fig.1
2. Remove the 8 screws of the Front Panel.
Fig.2
3. Remove the screw of the Terminal Board Cover.
4. Remove the Top Cover of the Control Board by 4
hooks.
Fig.3
5. Remove the Control Board as follows.
Fig.4
Fig.5
Fig.6
Screw
Screws
Screws
Top Panel
Screw
Screws
Screws
Screws
Front Panel
Screw
Terminal
Board
Cover
Hook
Hooks
Control Board
Top Cover
Remove1screw
Remove2screws
Remove earth wire
Remove 2 connectors
from reactor
Re
m
ove 5 connectors fro
m
electronic controller
Compressor
Control Board
Re
m
ove the Ter
m
inal Cover
and 3 Terminal Compressor
Control Board
Electronic Controller
