Panasonic CS-S12TKV

152

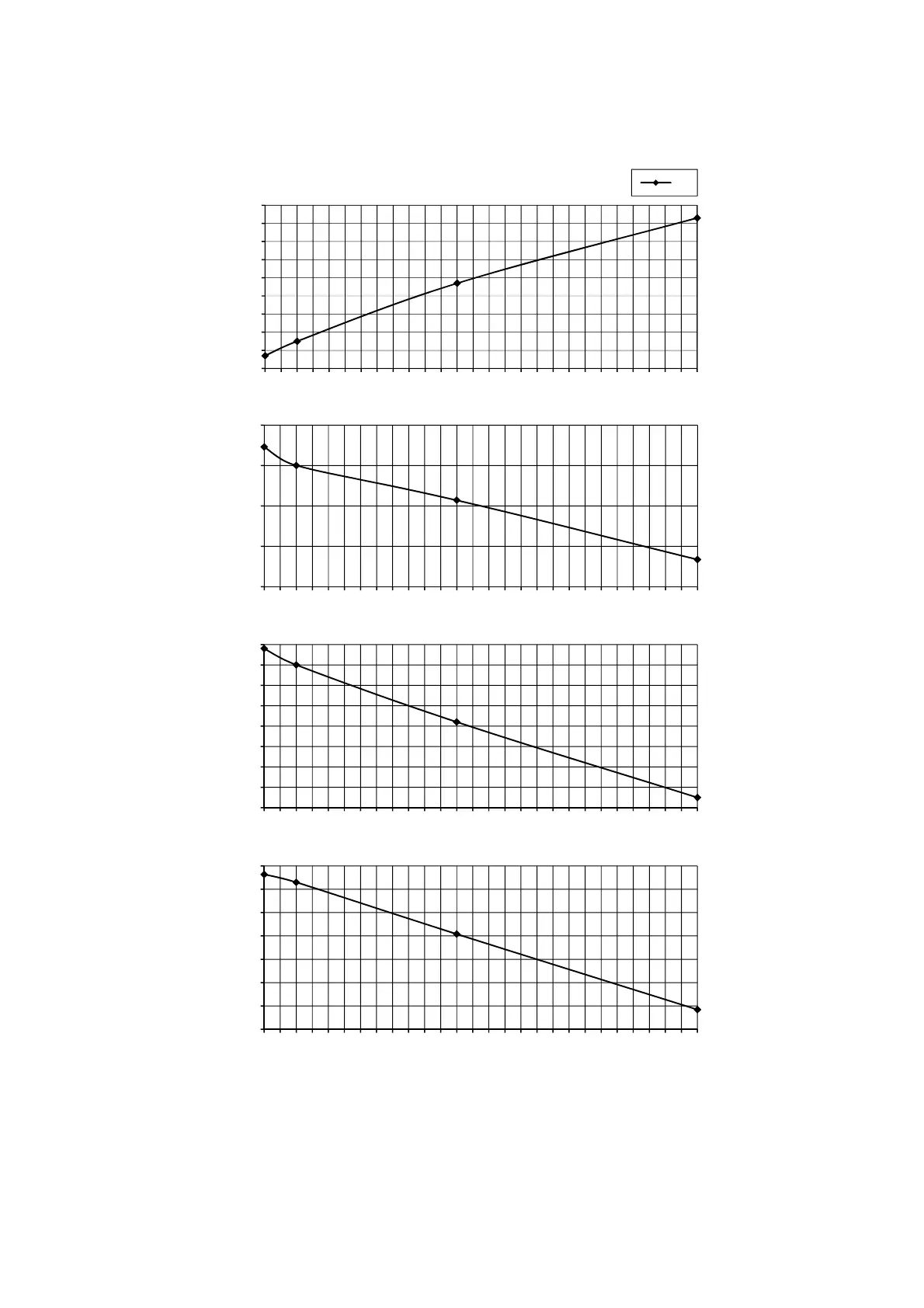

 Piping Length Characteristic
o Room temperature: 27°C (DBT), 19°C (WBT)
o Outdoor temperature: 35°C (DBT), 24°C (WBT)
o Operation condition: High fan speed
o Compressor Frequency = Fc
12.500
12.600
12.700
12.800
12.900
13.000
13.100
13.200
13.300
13.400
3456789101112131415161718192021222324252627282930
Indoor Discharge
Air Temperature (°C)
Piping Length (m)
220
7.500
7.600
7.700
7.800
7.900
3456789101112131415161718192021222324252627282930
Cooling
Capacity (kW)
Piping Length (m)
11.900
12.000
12.100
12.200
12.300
12.400
12.500
12.600
12.700
3456789101112131415161718192021222324252627282930
Current
(A)
Piping Length (m)
0.500
0.550
0.600
0.650
0.700
0.750
0.800
0.850
3456789101112131415161718192021222324252627282930
Gas Side Piping
Pressure (MPa)
Piping Length (m)
