13.4 Airflow Direction
There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by
vertical vanes).
Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat
exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using
remote control).
13.4.1 Vertical Airflow
Operation Mode Airflow Direction
Vane Angle (°)
1 2 3 4 5 SHOWER DIRECT
iCOMFORT
Auto
Reaches set temp. -2
-2 40
Not reaches set temp. 40
Manual 23 30 35 40 44
Cooling and Soft Dry
Auto 23 ~ 44
Manual 23 30 35 40 44
Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. It does not swing during fan motor stop. When the air conditioner is stopped using
remote control, the vane will shift to close position.

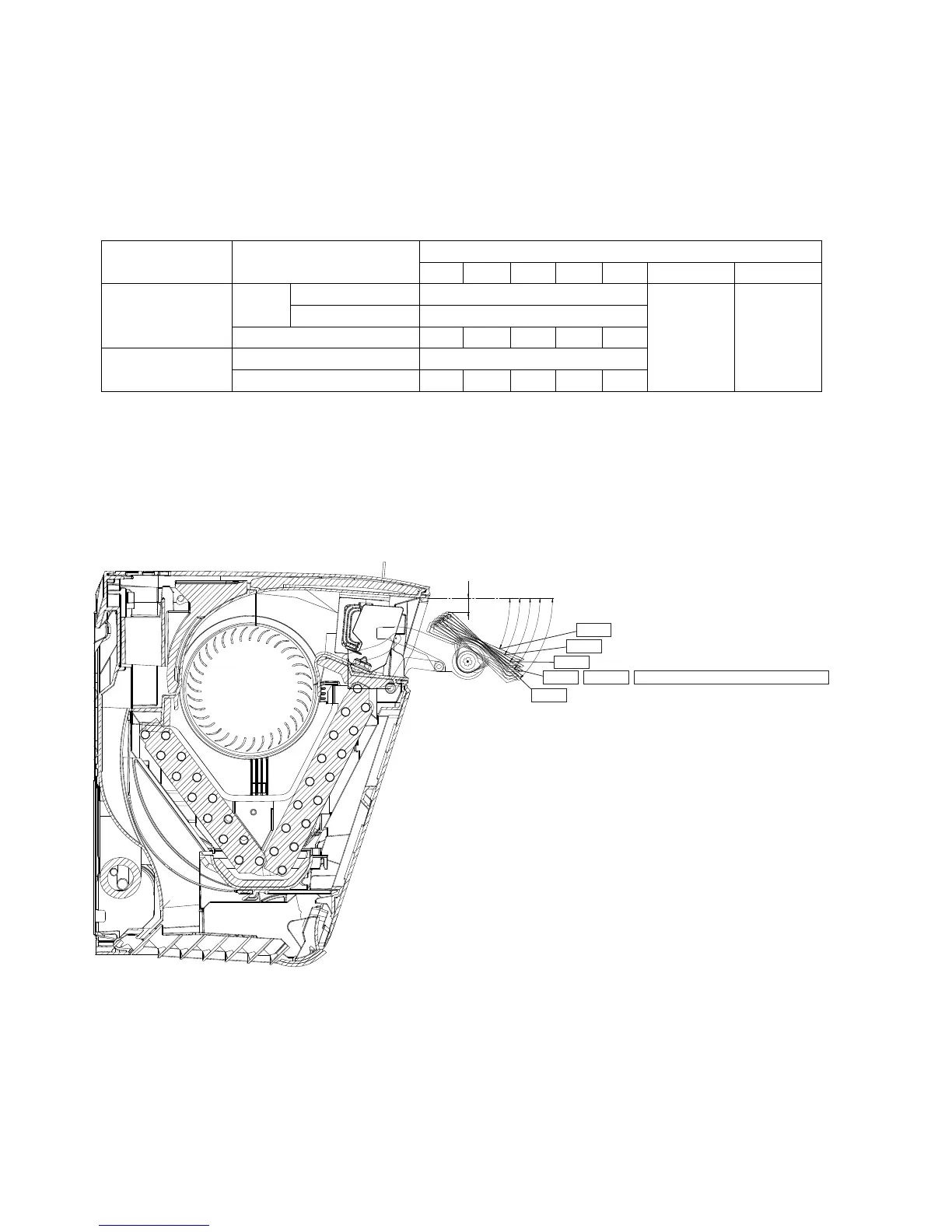

Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and
the positions of the vane are as figure below. When the air conditioner is stopped using remote control, the vane
will shift to close position.
Cooling Direct Vane Angle
2
3
°
3
0
°
3
5
°
4
0
°
4
4
°
11
Step 1
Step 2
Step 3
Step 4
Step 5
DIRECT iCOMFORT/Auto (Not reaches set temp.)
